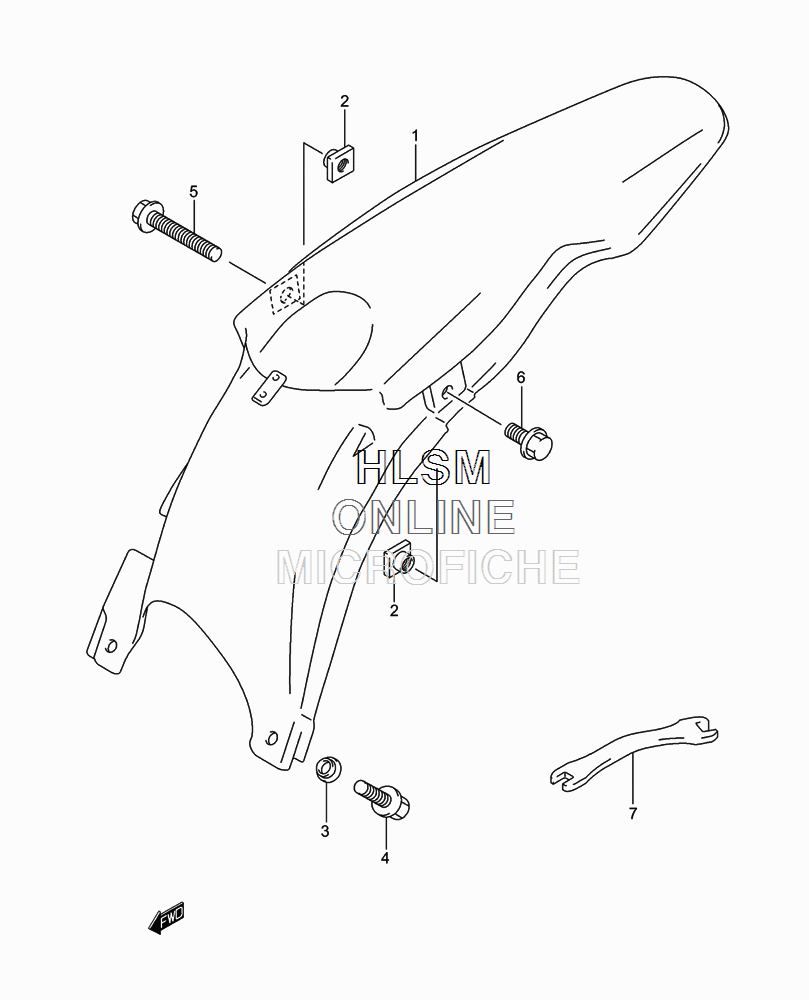

FENDER - REAR для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
163111-37F00-YR1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
209152-06024 NUT, REAR FENDERNUT, REAR FENDER
-
309169-06054 WASHERWASHER
-
401547-06203 BOLT, FRONTBOLT, FRONT
-
501547-06353 BOLT, RIGHT HANDBOLT, RIGHT HAND
-
601547-06123 BOLT, LEFT HANDBOLT, LEFT HAND
-
709813-00039 OPEN SPANNER (6.4X6.8)OPEN SPANNER (6.4X6.8)
Все узлы модели:
- ACCESSORIES
- AIR CLEANER
- BRAKE - FRONT CALIPER
- BRAKE - FRONT MASTER CYLINDER
- BRAKE - REAR CALIPER
- BRAKE - REAR MASTER CYLINDER
- BRAKE PEDAL
- CARBURETOR ASSY.
- CLUTCH
- CRANKCASE
- CRANKCASE COVER W/ WATER PUMP
- CRANKSHAFT W/ PISTON
- CYLINDER
- ELECTRICAL
- EXHAUST VALVE
- FENDER - FRONT
- • FENDER - REAR
- FRAME
- FUEL COCK ASSY.
- FUEL TANK
- GASKET SET
- GEAR SHIFTING
- HANDLEBAR
- HANDLEBAR - LEVERS
- KICK STARTER
- LABEL
- MAGNETO
- MUFFLER
- RADIATOR
- SEAT
- SIDE COVER
- STEERING STEM
- STEP / STAND
- SUSPENSION - CUSHION LEVER W/ SHOCK
- SUSPENSION - FRONT FORK
- SUSPENSION - REAR SWING ARM W/ SHOCK
- SUSPENSION - SHOCKS REAR
- TRANSMISSION
- WHEEL - FRONT
- WHEEL - REAR
