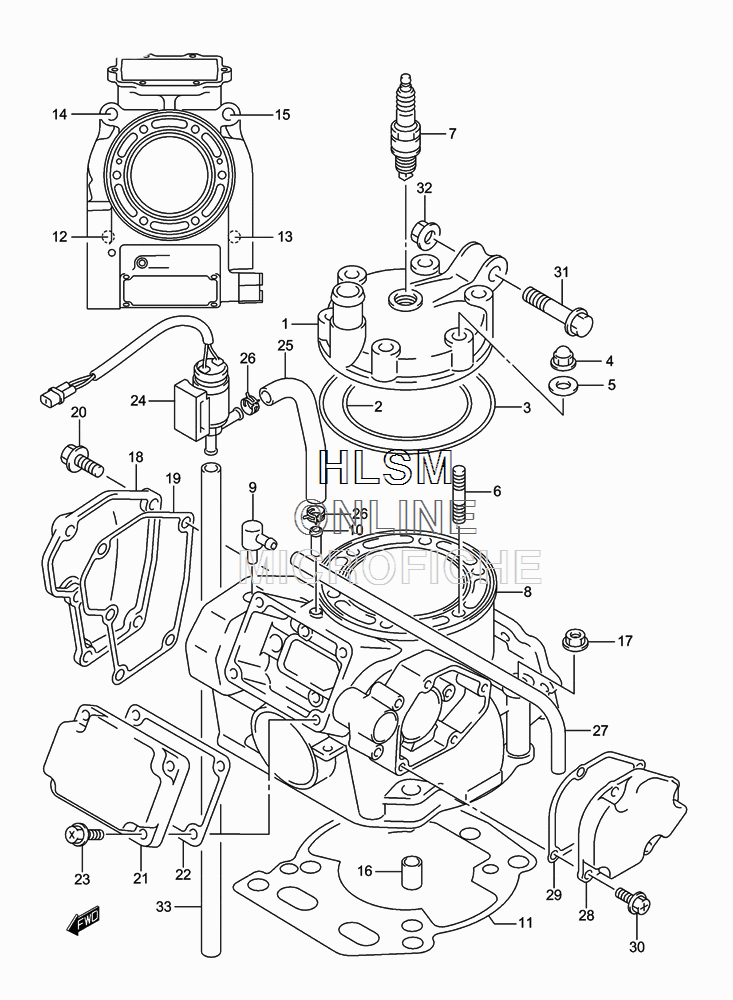

CYLINDER для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
111111-37F00 HEAD, CYLINDERHEAD, CYLINDER
-
211147-37F00 O RING, CYLINDER HEAD NO.1O RING, CYLINDER HEAD NO.1
-
311148-37F00 O RING, CYLINDER HEAD NO.2O RING, CYLINDER HEAD NO.2
-
409159-08049 NUTNUT
-
509168-08021 WASHERWASHER
-
609108-08227 STUD BOLT (L:38)STUD BOLT (L:38)
-
709482-00561 SPARK PLUG (NGK,BR8EG)SPARK PLUG (NGK,BR8EG)
-
811200-37861 CYLINDER SET (INCL. 9-10)CYLINDER SET (INCL. 9-10)
-
916910-09401 UNION, CYLINDERUNION, CYLINDER
-
1009364-07002 UNION, BREATHER HOSEUNION, BREATHER HOSE
-
1111241-37F01 GASKET, CYLINDERGASKET, CYLINDER
-
1201421-10308 STUD BOLT (L:30)STUD BOLT (L:30)
-
1301421-10408 STUD BOLT (L:40)STUD BOLT (L:40)
-
1401421-10603 STUD BOLT (L:60)STUD BOLT (L:60)
-
1501421-10708 STUD BOLT (L:70)STUD BOLT (L:70)
-
1609206-13017 PINPIN
-
1708316-10103 NUTNUT
-
1811231-37E30 COVER, CYLINDER NO.1COVER, CYLINDER NO.1
-
1911233-37E30 GASKET, CYLINDER COVER NO.1GASKET, CYLINDER COVER NO.1
-
2001547-06163 BOLTBOLT
-
2111248-37E30 COVER, CYLINDER NO.2COVER, CYLINDER NO.2
-
2211238-36E01 GASKET, CYLINDER COVER NO.2GASKET, CYLINDER COVER NO.2
-
2302162-05163 BOLTBOLT
-
2413160-37E41 SOLENOID VALVE ASSYSOLENOID VALVE ASSY
-
2509352-60103-600 HOSE, INLET (6X10X600) L:600!85HOSE, INLET (6X10X600) L:600!85
-
2609401-09403 CLIP, INLET HOSECLIP, INLET HOSE
-
2709352-50823-600 HOSE (5X8.2X600) L:600!390HOSE (5X8.2X600) L:600!390
-
2811249-37E30 COVER, CYLINDER NO.3COVER, CYLINDER NO.3
-
2911234-37E31 GASKET, CYLINDER COVER NO.3GASKET, CYLINDER COVER NO.3
-
3002162-05163 BOLTBOLT
-
3109103-10126 BOLT (10X48)BOLT (10X48)
-
3209159-10060 NUTNUT
-
3309352-60103-600 HOSE, OUTLET (6X10X600) L:600!380HOSE, OUTLET (6X10X600) L:600!380
