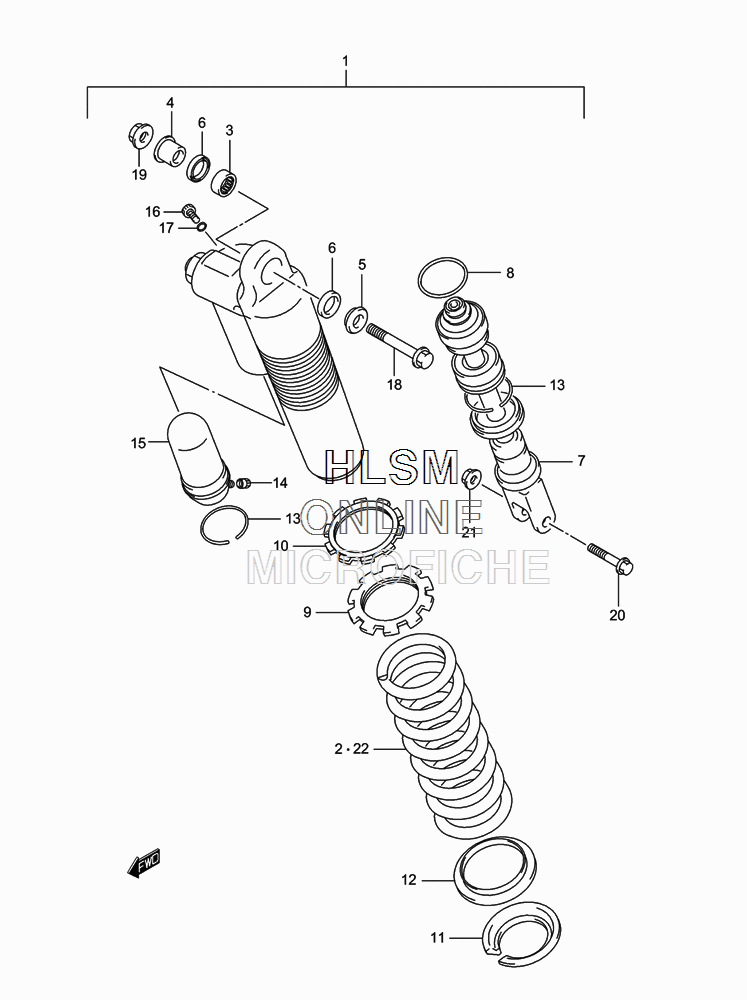

SUSPENSION - SHOCKS REAR для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
162100-37F20-37W ABSORBER ASSY, RR SHOCK (RED) (INC 2-15 )ABSORBER ASSY, RR SHOCK (RED) (INC 2-15 )
-
162100-37F10-37W ABSORBER ASSY, RR SHOCK (RED) (INC 2-15 ) (CANADA ONLY)ABSORBER ASSY, RR SHOCK (RED) (INC 2-15 ) (CANADA ONLY)
-
262211-37F00 SPRINGSPRING
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
562685-36F00 SPACER, BEARING LEFT HANDSPACER, BEARING LEFT HAND
-
609284-16005 SEAL, DUST RIGHT HANDSEAL, DUST RIGHT HAND
-
762120-37F10 ROD, PISTONROD, PISTON
-
862153-14600 O RINGO RING
-
962191-27C20 GUIDE, SPRINGGUIDE, SPRING
-
1062194-27C20 NUTNUT
-
1162221-37F00 GUIDE, SPRINGGUIDE, SPRING
-
1262222-37F00 GUIDE, SPRINGGUIDE, SPRING
-
1362277-00B00 RING, STOPPERRING, STOPPER
-
1451294-40400 CAPCAP
-
1662281-01B20 BOLTBOLT
-
1762154-01B20 O RINGO RING
-
1809103-10329 BOLTBOLT
-
1909159-10058 NUTNUT
-
2009103-10325 BOLTBOLT
-
2109159-10067 NUTNUT
-
2262211-37F10 SPRING (SOFT,K=4.8) (OPT)SPRING (SOFT,K=4.8) (OPT)
-
2262211-37F20 SPRING (HARD,K=5.2) (OPT)SPRING (HARD,K=5.2) (OPT)
