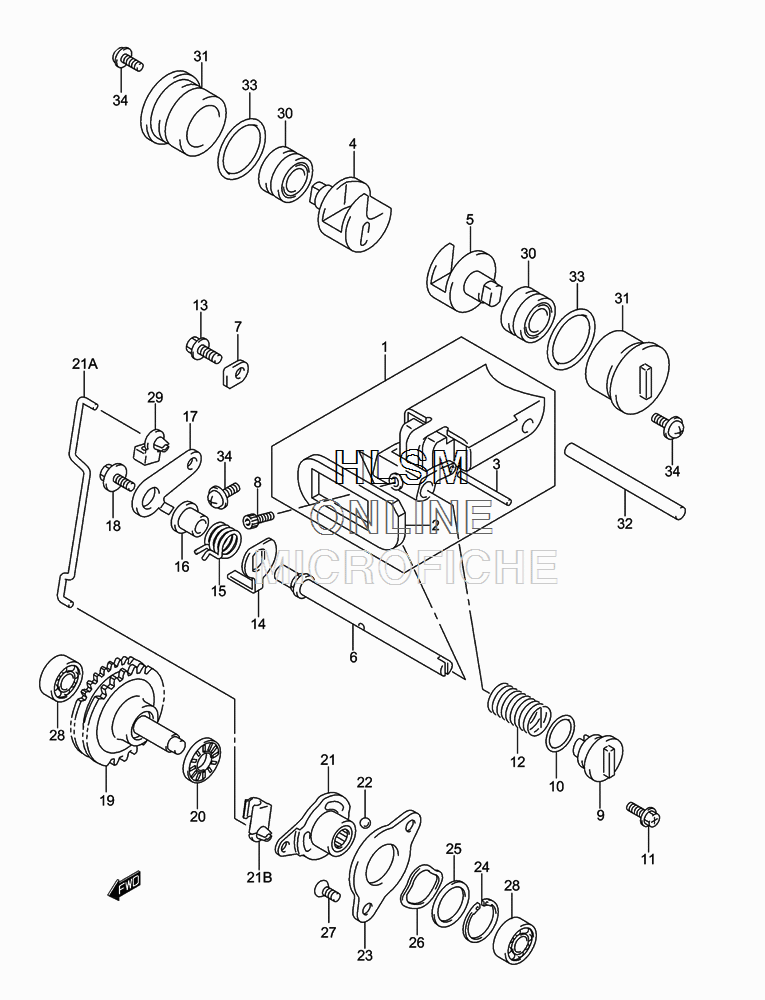

EXHAUST VALVE для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
111206-37F00 VALVE, EXHAUST MAIN (INCL. 2-3)VALVE, EXHAUST MAIN (INCL. 2-3)
-
211261-37F00 GUIDE, EXHAUST VALVEGUIDE, EXHAUST VALVE
-
309261-04013 PIN, EXHAUST VALVEPIN, EXHAUST VALVE
-
411255-37F00 VALVE, EXHAUST SIDE RIGHT HANDVALVE, EXHAUST SIDE RIGHT HAND
-
511256-37F00 VALVE, EXHAUST SIDE LEFT HANDVALVE, EXHAUST SIDE LEFT HAND
-
611259-37E00 SHAFT, EXHAUST VALVESHAFT, EXHAUST VALVE
-
724741-21A00 RETAINER, EX VALVE STOPRETAINER, EX VALVE STOP
-
809106-04003 BOLT (4X8)BOLT (4X8)
-
911274-37E11 CAP, EXHAUST VALVECAP, EXHAUST VALVE
-
1009280-15006 O RING (D:1.9,ID:14.5)O RING (D:1.9,ID:14.5)
-
1102162-05123 BOLTBOLT
-
1211257-37F00 SPRINGSPRING
-
1301547-06103 BOLTBOLT
-
1411267-00B21 LEVER, EXHAUST VALVE NO.2LEVER, EXHAUST VALVE NO.2
-
1509444-16010 SPRINGSPRING
-
1611268-01B01 SPACERSPACER
-
1711266-37F00 LEVER, EXHAUST VALVE NO.1LEVER, EXHAUST VALVE NO.1
-
1809118-05005 BOLT (5X12)BOLT (5X12)
-
1912670-37E11 GOVERNOR ASSY, EXHAUST VALVEGOVERNOR ASSY, EXHAUST VALVE
-
2009263-10002 BEARING (10.1X22X2.8)BEARING (10.1X22X2.8)
-
2112680-01830 ACTUATOR, EXHAUST VALVEACTUATOR, EXHAUST VALVE
-
21A12685-37F00 ROD, EXHAUST VALVEROD, EXHAUST VALVE
-
21B12686-36E00 BUSH, EXHAUST VALVE NO.2BUSH, EXHAUST VALVE NO.2
-
2206111-06003 BALLBALL
-
2312682-01B02 STATOR, ACTUATORSTATOR, ACTUATOR
-
2409380-19003 CIRCLIPCIRCLIP
-
2509181-19004 SHIM (19.1X25X0.3)SHIM (19.1X25X0.3)
-
2609164-19001 LOCK WASHERLOCK WASHER
-
2709120-05003 SCREW (5X10)SCREW (5X10)
-
2809262-08005 BEARINGBEARING
-
2912686-01B00 BUSH, EXHAUST VALVEBUSH, EXHAUST VALVE
-
3009263-12026 BEARING, SIDE VALVEBEARING, SIDE VALVE
-
3111262-37F00 CAP, EX SIDE VALVECAP, EX SIDE VALVE
-
3209202-04020 PINPIN
-
3309280-29005 O RINGO RING
-
3402112-15123 SCREWSCREW
