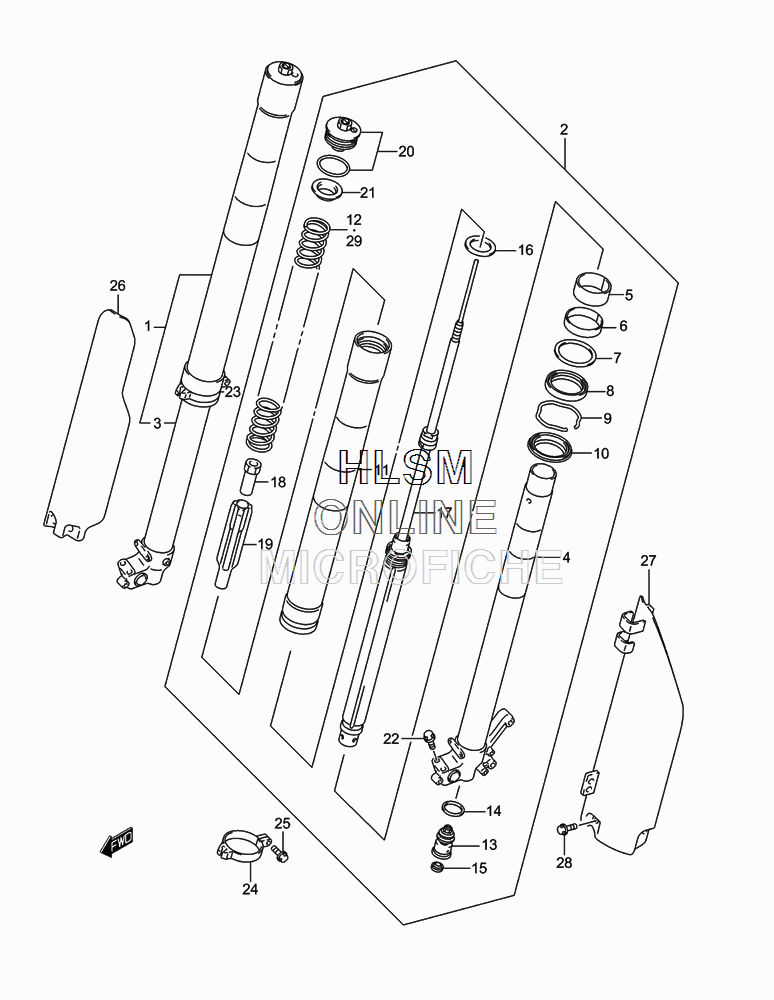

SUSPENSION - FRONT FORK для Suzuki RM250K1 - 2001 года выпуска
-
№АртикулНазвание
-
151103-37F10 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-22)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 3-22)
-
251104-37F10 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-22)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 3-22)
-
351110-37F00 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-37F00 TUBE, INNER LEFT HANDTUBE, INNER LEFT HAND
-
551121-37F00 BUSH, SLIDEBUSH, SLIDE
-
651167-37F00 BUSH, GUIDEBUSH, GUIDE
-
751158-27C00 SPACER, SEALSPACER, SEAL
-
851153-37F00 SEAL, OILSEAL, OIL
-
951156-27C00 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1051173-37F00 SEAL, DUSTSEAL, DUST
-
1151130-37F00 TUBE, OUTERTUBE, OUTER
-
1251171-37F10 SPRING, FRONTSPRING, FRONT
-
1351170-37F10 VALVE ASSY, BASEVALVE ASSY, BASE
-
1451148-37F00 PACKINGPACKING
-
1551189-28C00 CAP, RUBBERCAP, RUBBER
-
1651355-37F00 WASHERWASHER
-
1751128-37F01 ROD ASSY, PISTONROD ASSY, PISTON
-
1851129-37F00 NUTNUT
-
1951172-37F00 GUIDE, SPRINGGUIDE, SPRING
-
2051351-37F00 CAPCAP
-
2151197-37F00 GUIDE, SPRINGGUIDE, SPRING
-
2251321-37F00 BOLTBOLT
-
2351220-37F00 GUIDE, PROTECTOR RIGHT HANDGUIDE, PROTECTOR RIGHT HAND
-
2451210-37F00 GUIDE, PROTECTOR LEFT HANDGUIDE, PROTECTOR LEFT HAND
-
2501547-06257 BOLTBOLT
-
2651501-36E60 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
2751511-36E60 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
2801547-06107 BOLTBOLT
-
2951171-37F20 SPRING, FRONT (SOFT,K=0.41) (OPT)SPRING, FRONT (SOFT,K=0.41) (OPT)
-
2951171-37F30 SPRING, FRONT (HARD,K=0.45) (OPT)SPRING, FRONT (HARD,K=0.45) (OPT)
