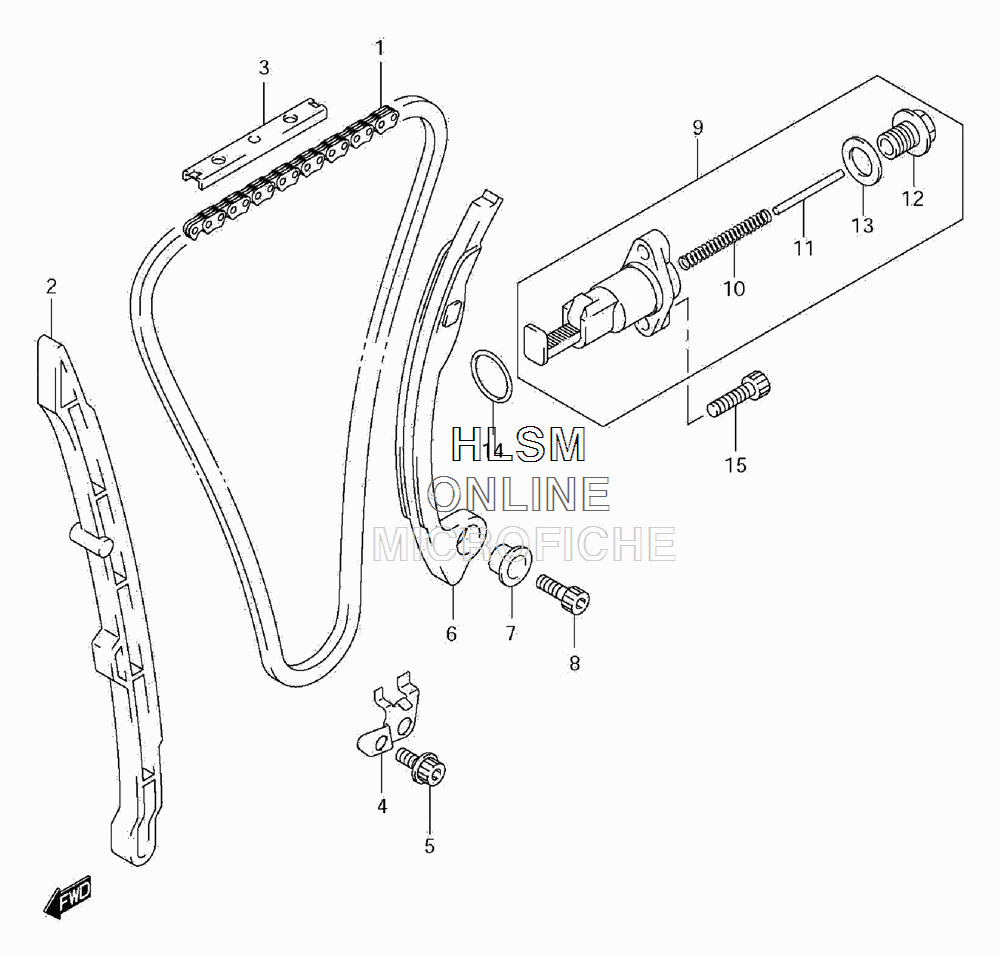

CAM CHAIN ASSY. W/ TENSIONER для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
112760-10H00 CHAIN, CAM SHAFT DRIVECHAIN, CAM SHAFT DRIVE
-
212771-49H00 GUIDE, CAM CHAIN NO.1GUIDE, CAM CHAIN NO.1
-
312782-35G00 GUIDE, CAM CHAIN NO.2GUIDE, CAM CHAIN NO.2
-
412773-49H00 RETAINER, CAM CHAIN GUIDERETAINER, CAM CHAIN GUIDE
-
507120-0610A BOLTBOLT
-
612811-10H00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
712812-35G00 SPACERSPACER
-
807130-0616A BOLTBOLT
-
912830-10H00 ADJUSTER ASSY, TENSIONER (INCL. 9-13)ADJUSTER ASSY, TENSIONER (INCL. 9-13)
-
1012831-10H00 SPRINGSPRING
-
1112836-10H00 BARBAR
-
1212833-10H00 PLUGPLUG
-
1312837-24F10 GASKETGASKET
-
1409280-19001 O RING, ADJUSTERO RING, ADJUSTER
-
1507130-0625A BOLTBOLT
