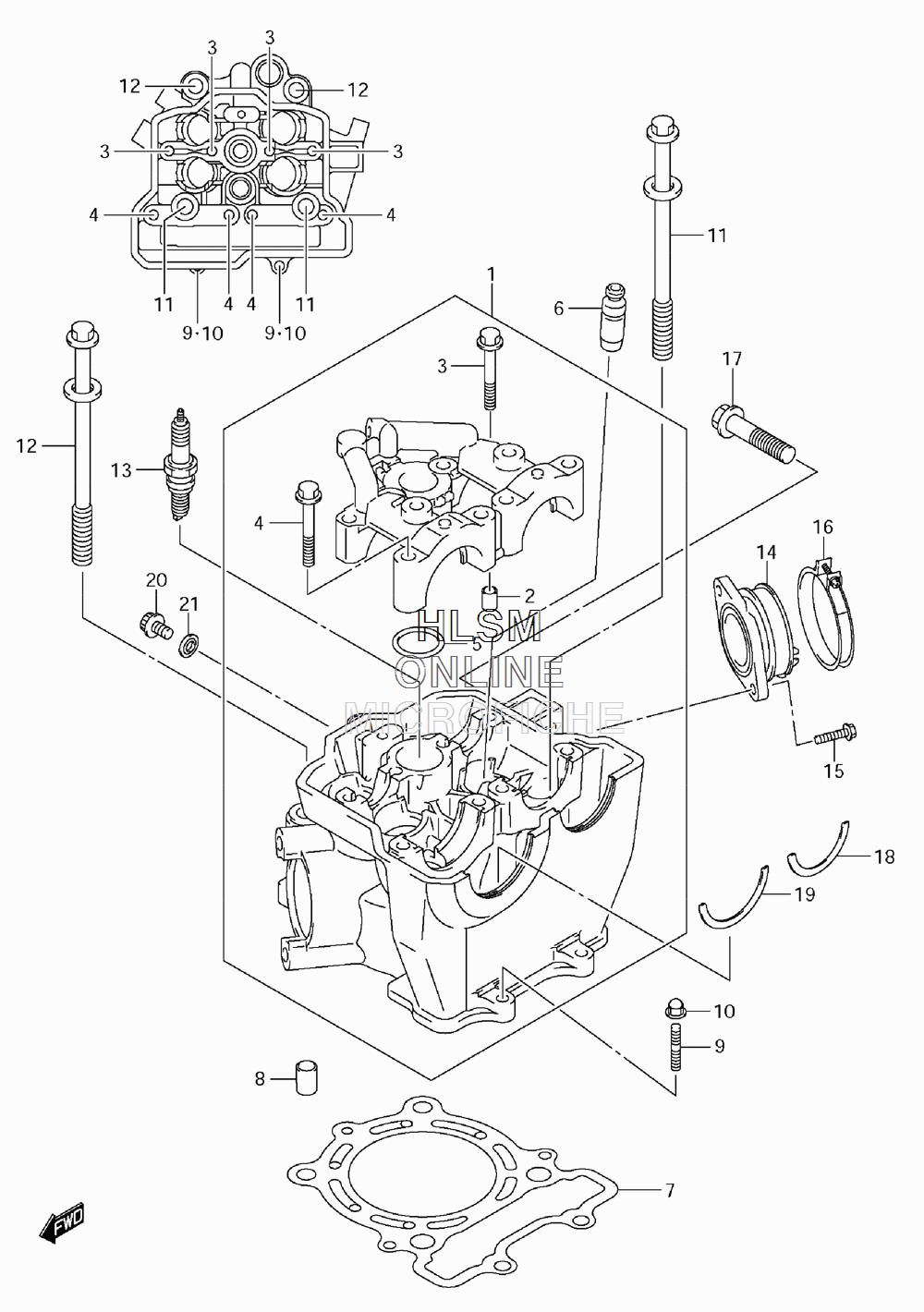

CYLINDER HEAD для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
111100-49H01 HEAD ASSY, CYLINDER (INCL. 2-5)HEAD ASSY, CYLINDER (INCL. 2-5)
-
209206-08001 PIN (6.2X8X11)PIN (6.2X8X11)
-
309103-06266 BOLT (6X40)BOLT (6X40)
-
409103-06293 BOLT (6X45)BOLT (6X45)
-
509280-26007 O RING (D:2.4,ID:25.7)O RING (D:2.4,ID:25.7)
-
611115-10H70 GUIDE, VALVE (OS.0.3) (OPT)GUIDE, VALVE (OS.0.3) (OPT)
-
711141-49H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
804211-13189 PINPIN
-
901421-0620A STUD BOLTSTUD BOLT
-
1008313-2006A NUTNUT
-
1111117-10H00 BOLT, CYLINDER HEAD (10X124)BOLT, CYLINDER HEAD (10X124)
-
1211117-10H10 BOLT, CYLINDER HEAD (10X124)BOLT, CYLINDER HEAD (10X124)
-
1309482-00597 SPARK PLUG (CR8EIA-10)SPARK PLUG (CR8EIA-10)
-
1413101-49H00 PIPE, INTAKEPIPE, INTAKE
-
1501547-06207 BOLTBOLT
-
1613170-49H00 CLAMP, INTAKE PIPECLAMP, INTAKE PIPE
-
1709103-10235 BOLT (10X50)BOLT (10X50)
-
1812749-49H00 C RING, INTAKEC RING, INTAKE
-
1912749-49H10 C RING, EXHAUSTC RING, EXHAUST
-
2007120-0610A BOLTBOLT
-
2109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
