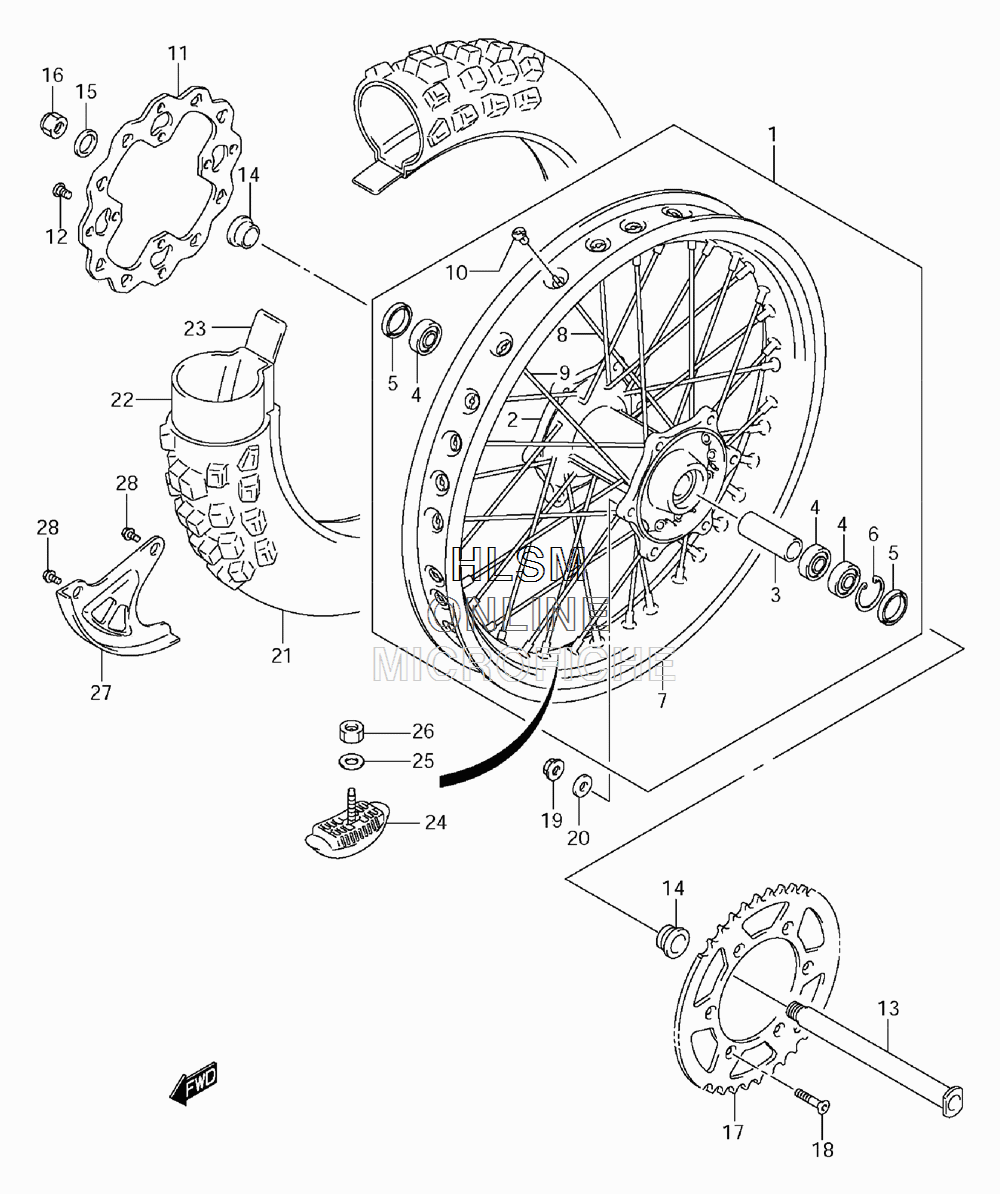

WHEEL - REAR для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
164100-10H00 WHEEL ASSY, REAR (INCL. 2-10)WHEEL ASSY, REAR (INCL. 2-10)
-
264111-35G20 HUB, REAR WHEELHUB, REAR WHEEL
-
364731-35G01 SPACER, BEARINGSPACER, BEARING
-
409262-25139 BEARING (25X42X9)BEARING (25X42X9)
-
509283-32045 DUST SEAL (32X43X7)DUST SEAL (32X43X7)
-
608331-4142A CIRCLIPCIRCLIP
-
765311-10H00 RIM, REAR WHEEL (1.85X19)RIM, REAR WHEEL (1.85X19)
-
865321-35G10 SPOKE, WHEEL INNERSPOKE, WHEEL INNER
-
965322-35G10 SPOKE, WHEEL OUTERSPOKE, WHEEL OUTER
-
1065325-35G10 NIPPLE, WHEELNIPPLE, WHEEL
-
1169211-28H10 DISC, REAR BRAKEDISC, REAR BRAKE
-
1209139-08022 SCREW (8X15)SCREW (8X15)
-
1364711-35G10 AXLE, REARAXLE, REAR
-
1464751-35G01 SPACERSPACER
-
1509160-22081 WASHER (22X35X2)WASHER (22X35X2)
-
1609159-22007 NUTNUT
-
1764511-28E00 SPROCKET, REAR (NT:49)SPROCKET, REAR (NT:49)
-
1809120-08017 SCREW (8X30.5)SCREW (8X30.5)
-
1909159-08133 NUTNUT
-
2009160-08082 WASHER (8.5X16X1.2)WASHER (8.5X16X1.2)
-
2165110-36F00 TIRE, REAR (110/90-19 57M) (DUNLOP)TIRE, REAR (110/90-19 57M) (DUNLOP)
-
2255200-44610 TUBE ASSY, WHEEL INNERTUBE ASSY, WHEEL INNER
-
2365261-01B30 PROTECTOR, INNER TUBEPROTECTOR, INNER TUBE
-
2465270-43D00 STOPPER, BEADSTOPPER, BEAD
-
2508322-0108A WASHERWASHER
-
2608310-0008A NUTNUT
-
2769231-37F12 COVER, REAR DISCCOVER, REAR DISC
-
2809116-06197 BOLT (6X12)BOLT (6X12)
