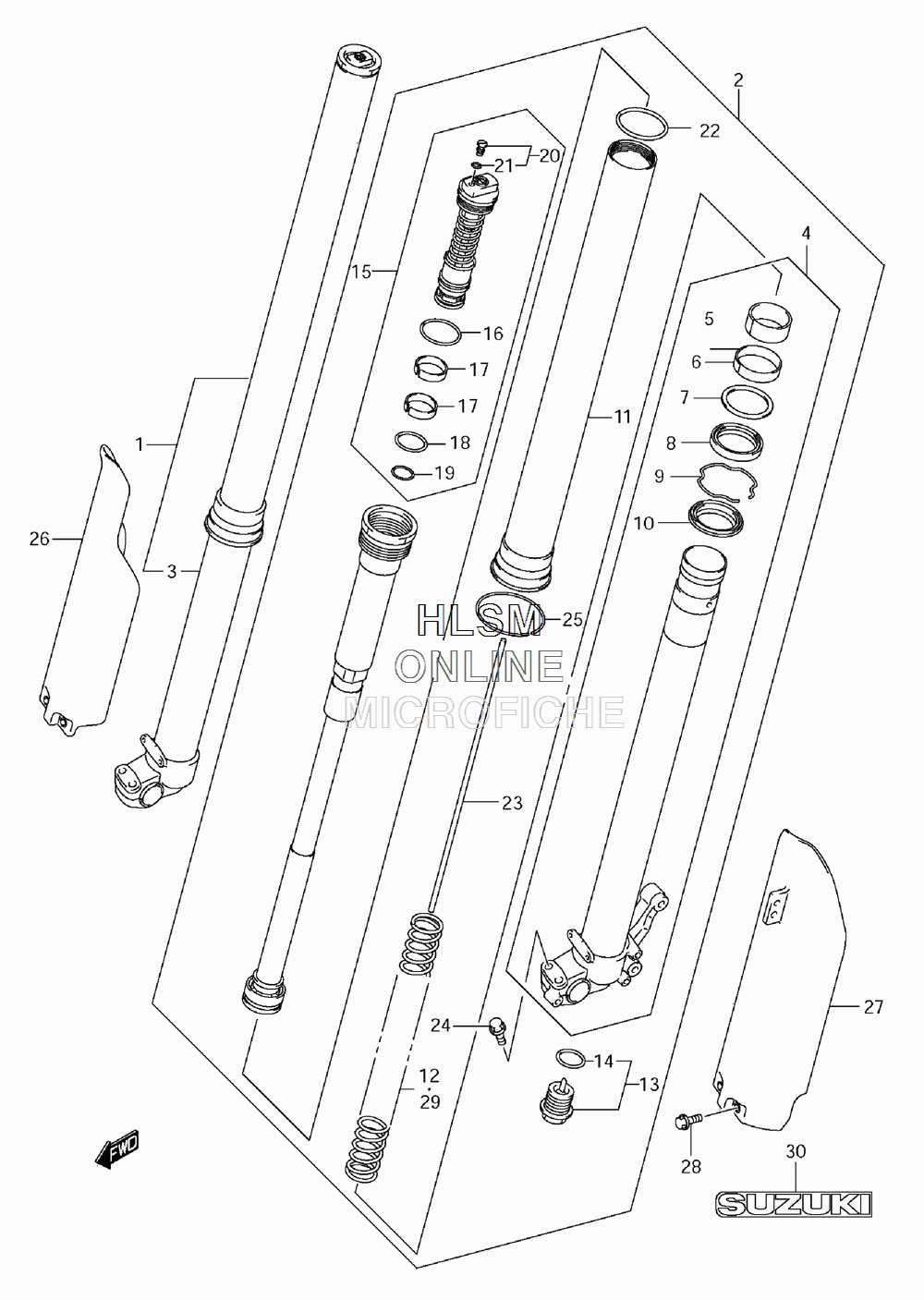

SUSPENSION - FRONT FORK для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
151103-49H10 DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 1, 3, 5-24)DAMPER ASSY, FRONT FORK RIGHT HAND (INCL. 1, 3, 5-24)
-
251104-49H10 DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 2, 4-24)DAMPER ASSY, FRONT FORK LEFT HAND (INCL. 2, 4-24)
-
351110-28H10 TUBE, INNER RIGHT HANDTUBE, INNER RIGHT HAND
-
451120-28H10 TUBE, INNER LEFT HAND (INCL. 5-10)TUBE, INNER LEFT HAND (INCL. 5-10)
-
551121-28H10 BUSH, GUIDEBUSH, GUIDE
-
651167-28H10 BUSH, GUIDEBUSH, GUIDE
-
751158-36F00 SPACER, SEALSPACER, SEAL
-
851153-37F80 SEAL, OILSEAL, OIL
-
951156-27C40 RING, OIL SEAL STOPPERRING, OIL SEAL STOPPER
-
1051173-37F80 SEAL, DUSTSEAL, DUST
-
1151130-10H10 TUBE, OUTERTUBE, OUTER
-
1251171-28H00 SPRING, FRONT (K=4.61)SPRING, FRONT (K=4.61)
-
1351170-37FC0 BOLT, CENTER (INC 14)BOLT, CENTER (INC 14)
-
1451177-36E20 O RINGO RING
-
1551351-49H10 BOLT, FORK (INCL. 16-21)BOLT, FORK (INCL. 16-21)
-
1651117-37F80 O RINGO RING
-
1751123-28H10 BUSH, FORK BOLT SLIDEBUSH, FORK BOLT SLIDE
-
1851174-36E40 O RINGO RING
-
1951175-37F80 O RINGO RING
-
2051357-36F20 BOLT, PLUG (INC 21)BOLT, PLUG (INC 21)
-
2151358-28E30 O RINGO RING
-
2251118-37F80 O RINGO RING
-
2351191-10H10 ROD, PUSHROD, PUSH
-
2451328-37F80 BOLTBOLT
-
2551211-37FC0 RING STOPPERRING STOPPER
-
2651501-28H00 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
2751511-28H00 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
2809111-06098 BOLT (6X10)BOLT (6X10)
-
2951171-28H10 SPRING, FRONT (SOFT K=4.41) (OPT)SPRING, FRONT (SOFT K=4.41) (OPT)
-
2951171-28H20 SPRING, FRONT (HARD K=4.81) (OPT)SPRING, FRONT (HARD K=4.81) (OPT)
-
3068661-29F00-DPZ EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
