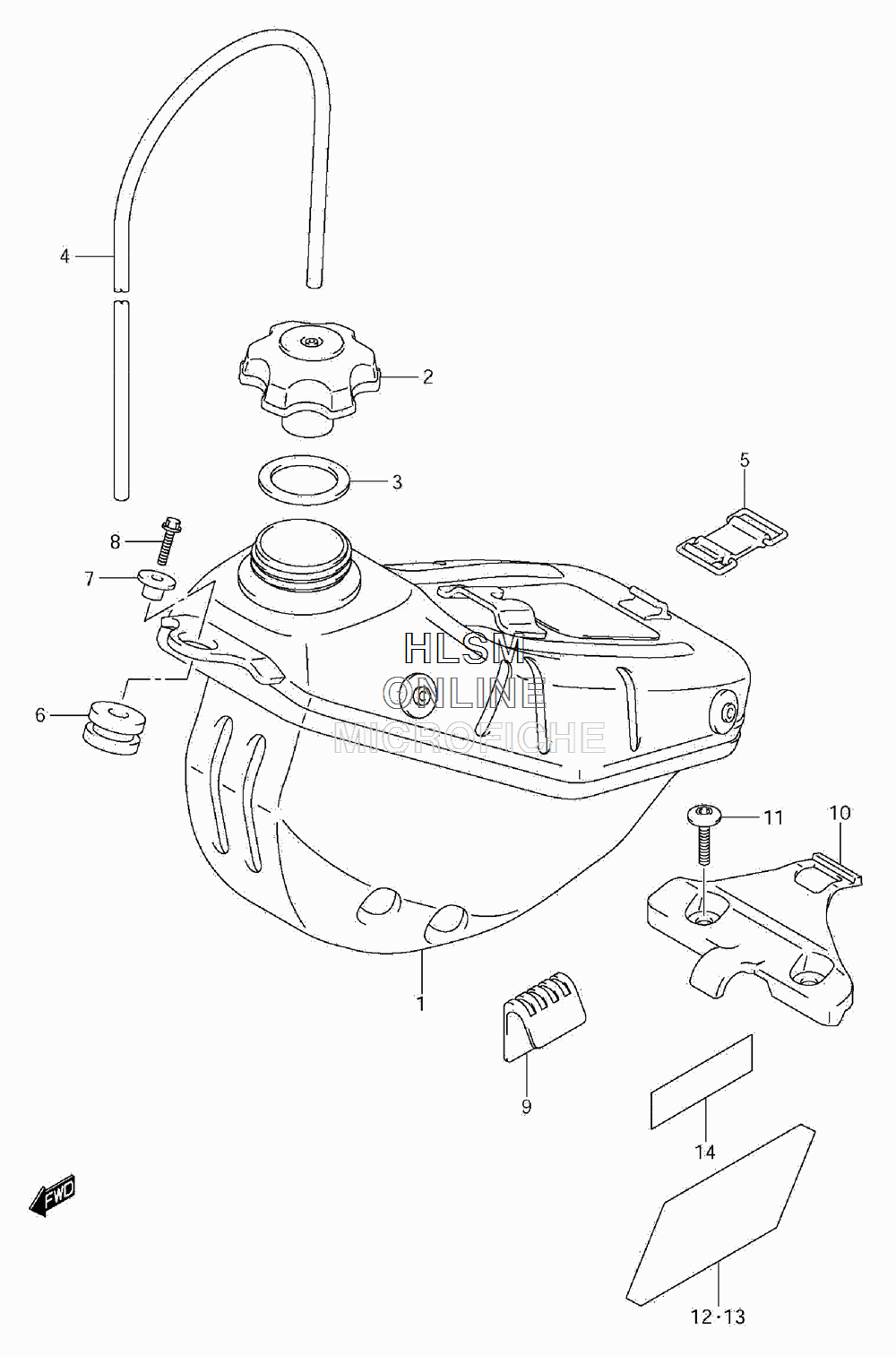

FUEL TANK для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
144110-49H10 TANK, FUELTANK, FUEL
-
244210-37F00 CAP, FUEL TANKCAP, FUEL TANK
-
344248-27C00 GASKETGASKET
-
409352-50823-600 HOSEHOSE
-
544560-49H00 BAND, FUEL TANKBAND, FUEL TANK
-
644541-28H00 CUSHION, FRONTCUSHION, FRONT
-
744134-35G02 SPACERSPACER
-
809103-06213 BOLT (6X30)BOLT (6X30)
-
944543-49H00 CUSHION, TANK SIDECUSHION, TANK SIDE
-
1044542-49H00 CUSHION, REARCUSHION, REAR
-
1109139-06185 SCREW (6X26.5)SCREW (6X26.5)
-
1217795-28H00 PROTECTOR, RIGHT HANDPROTECTOR, RIGHT HAND
-
1317796-28H00 PROTECTOR, LEFT HANDPROTECTOR, LEFT HAND
-
1417797-28H00 PROTECTOR, RADIATORPROTECTOR, RADIATOR
