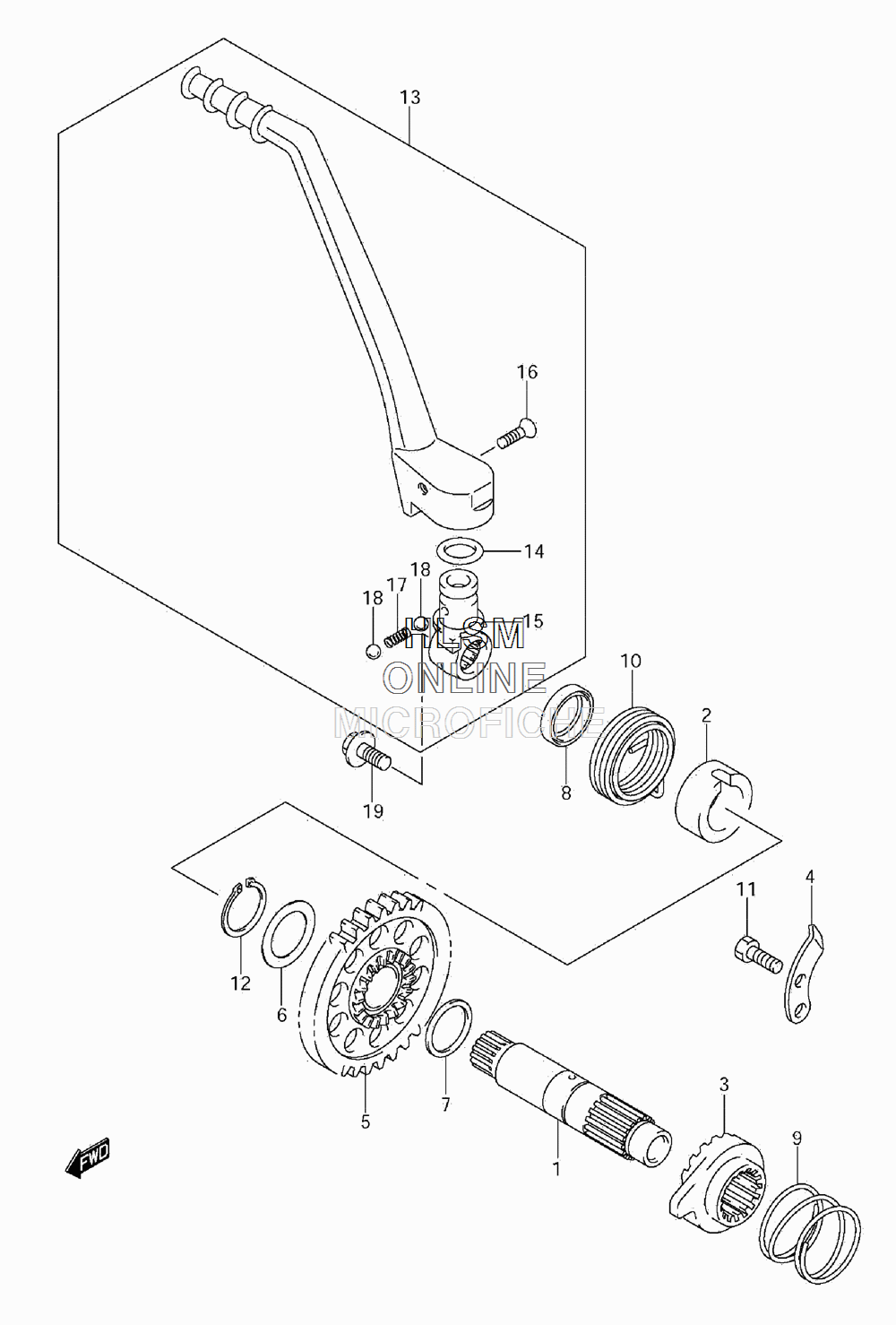

KICK STARTER для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
126211-10H00 SHAFT, KICK STARTERSHAFT, KICK STARTER
-
226221-10H00 GUIDE, KICK STARTER SFT SPRINGGUIDE, KICK STARTER SFT SPRING
-
326231-10H00 STARTER, KICKSTARTER, KICK
-
426232-49H00 GUIDE, KICK STARTERGUIDE, KICK STARTER
-
526240-10H00 GEAR, KICK STARTER DRIVEGEAR, KICK STARTER DRIVE
-
609181-18005 WASHER (18X26X0.5)WASHER (18X26X0.5)
-
709181-18004 WASHER (18X22X1.0)WASHER (18X22X1.0)
-
809283-18004 OIL SEAL (18X30X8.0)OIL SEAL (18X30X8.0)
-
909440-31002 SPRINGSPRING
-
1009448-45014 SPRINGSPRING
-
1101500-0612A BOLTBOLT
-
1208331-3118A CIRCLIPCIRCLIP
-
1326300-49H00 LEVER ASSY, KICK STARTER (INCL. 14-18)LEVER ASSY, KICK STARTER (INCL. 14-18)
-
1426313-28E20 O RING, KICK STARTER LEVERO RING, KICK STARTER LEVER
-
1526331-10H00 JOINT, KICK STARTER LEVERJOINT, KICK STARTER LEVER
-
1609127-06024 SCREW (6X27.5)SCREW (6X27.5)
-
1709440-05031 SPRINGSPRING
-
1806111-07004 BALLBALL
-
1909103-08522 BOLT (8X14)BOLT (8X14)
