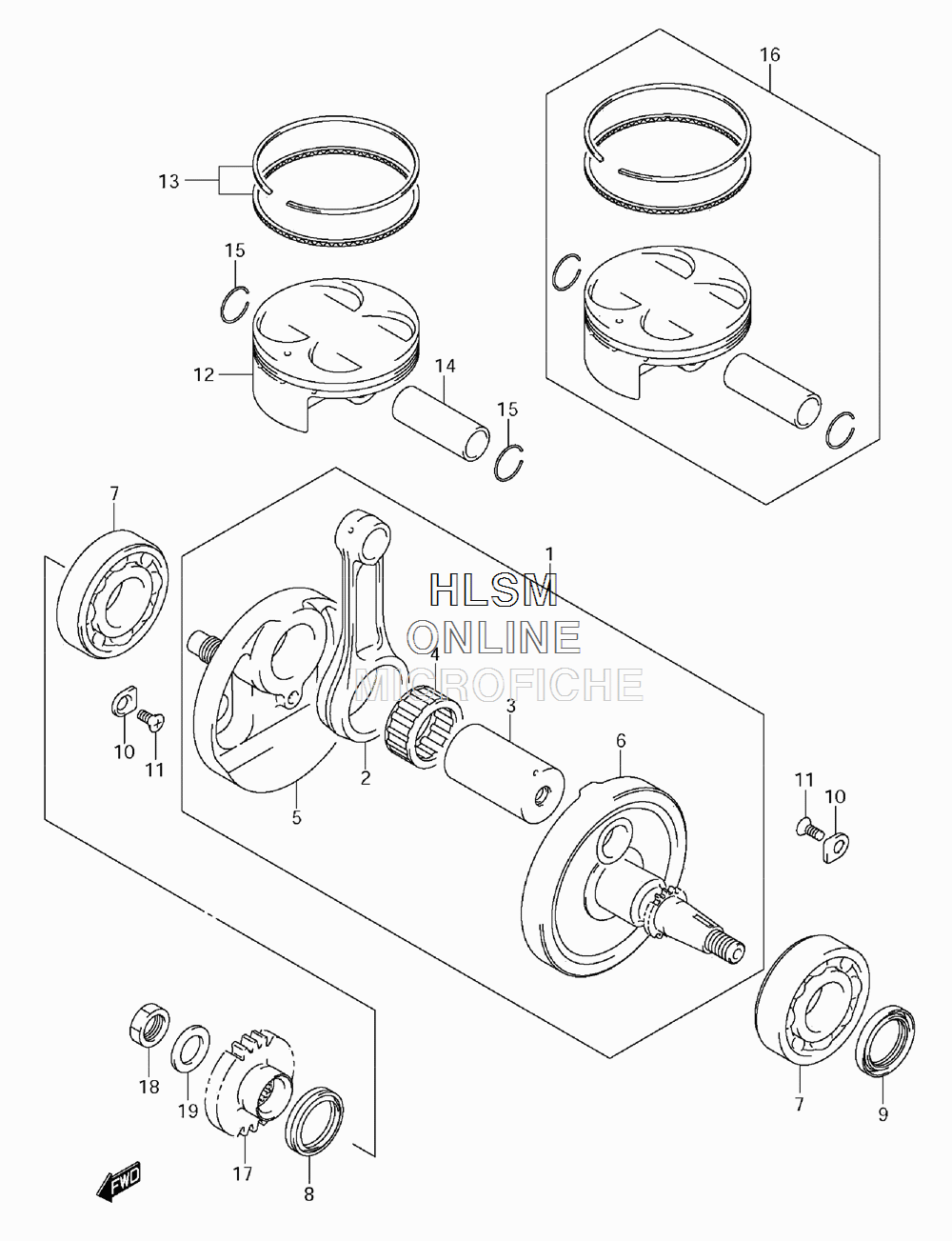

CRANKSHAFT W/ PISTON для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
112200-49H01 CRANKSHAFT ASSY (INCL. 2-6)CRANKSHAFT ASSY (INCL. 2-6)
-
212161-49H00-0B0 ROD, CONNECTINGROD, CONNECTING
-
312210-10H11 PINPIN
-
409263-30060-0B0 BEARING (30X38X18)BEARING (30X38X18)
-
512220-49H00 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
612261-49H00 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
709262-30122 BEARING (30X63X16)BEARING (30X63X16)
-
809283-30061 SEAL (30X40X7)SEAL (30X40X7)
-
909283-30069 SEAL (30X40X6)SEAL (30X40X6)
-
1024741-37F00 RETAINERRETAINER
-
1109126-06011 SCREW (6X12)SCREW (6X12)
-
1212111-49H00-0F0 PISTONPISTON
-
1312140-10810 RING SET, PISTONRING SET, PISTON
-
1412151-10H00 PIN, PISTONPIN, PISTON
-
1509381-16001 CIRCLIPCIRCLIP
-
1612110-49810 PISTON KITPISTON KIT
-
1721111-49H00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
1809140-16036 NUTNUT
-
1909164-16002 WASHERWASHER
