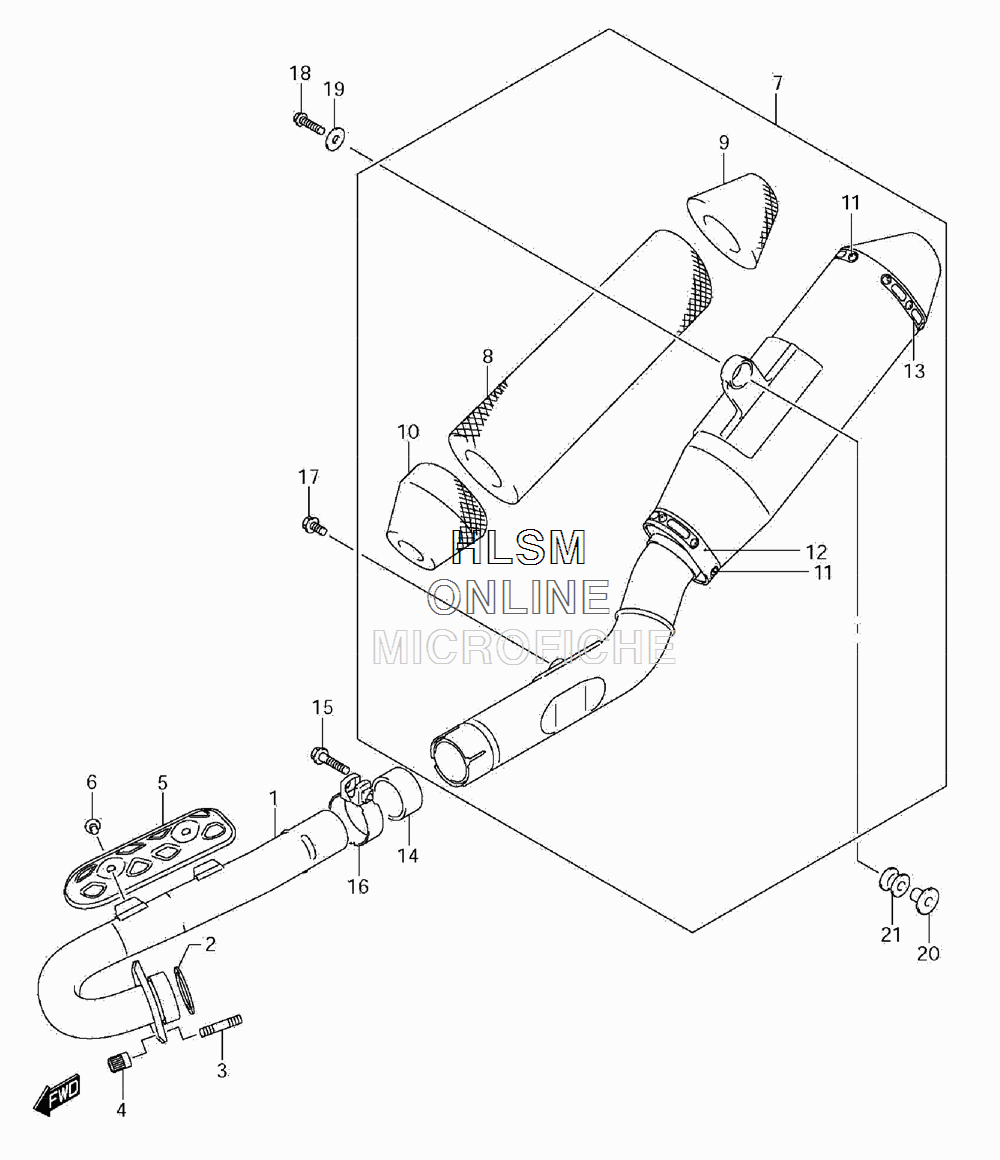

MUFFLER для Suzuki RM-Z250L1 - 2011 года выпуска
-
№АртикулНазвание
-
114150-49H20 PIPE, EXHAUSTPIPE, EXHAUST
-
214181-49H00 GASKETGASKET
-
301421-0816A BOLT, STUDBOLT, STUD
-
409159-08112 NUTNUT
-
514186-49H10 COVER, EXHAUST PIPECOVER, EXHAUST PIPE
-
609139-06178 SCREW (6X8)SCREW (6X8)
-
714310-49H00 BODY, MUFFLER (INCL. 6-13)BODY, MUFFLER (INCL. 6-13)
-
814351-49H10 SILENCER, MUFFLERSILENCER, MUFFLER
-
914355-49H00 GLASS WOOL, MUFFLER TAILGLASS WOOL, MUFFLER TAIL
-
1014356-49H10 GLASS WOOL, MUFFLER FRONTGLASS WOOL, MUFFLER FRONT
-
1114454-28H00 RIVETRIVET
-
1214782-10H00 BAND, FRONTBAND, FRONT
-
1314781-10H00 BAND, REARBAND, REAR
-
1414771-45G00 CONNECTORCONNECTOR
-
1507120-0835B BOLTBOLT
-
1614469-29F00 CLAMP, CONNECTORCLAMP, CONNECTOR
-
1709103-08426 BOLT (8X20)BOLT (8X20)
-
1809103-08391 BOLT (8X35)BOLT (8X35)
-
1909160-08151 WASHER (8.5X26X1.6)WASHER (8.5X26X1.6)
-
2009180-08157 SPACER (8.6X12X18.5)SPACER (8.6X12X18.5)
-
2109320-12043 CUSHIONCUSHION
