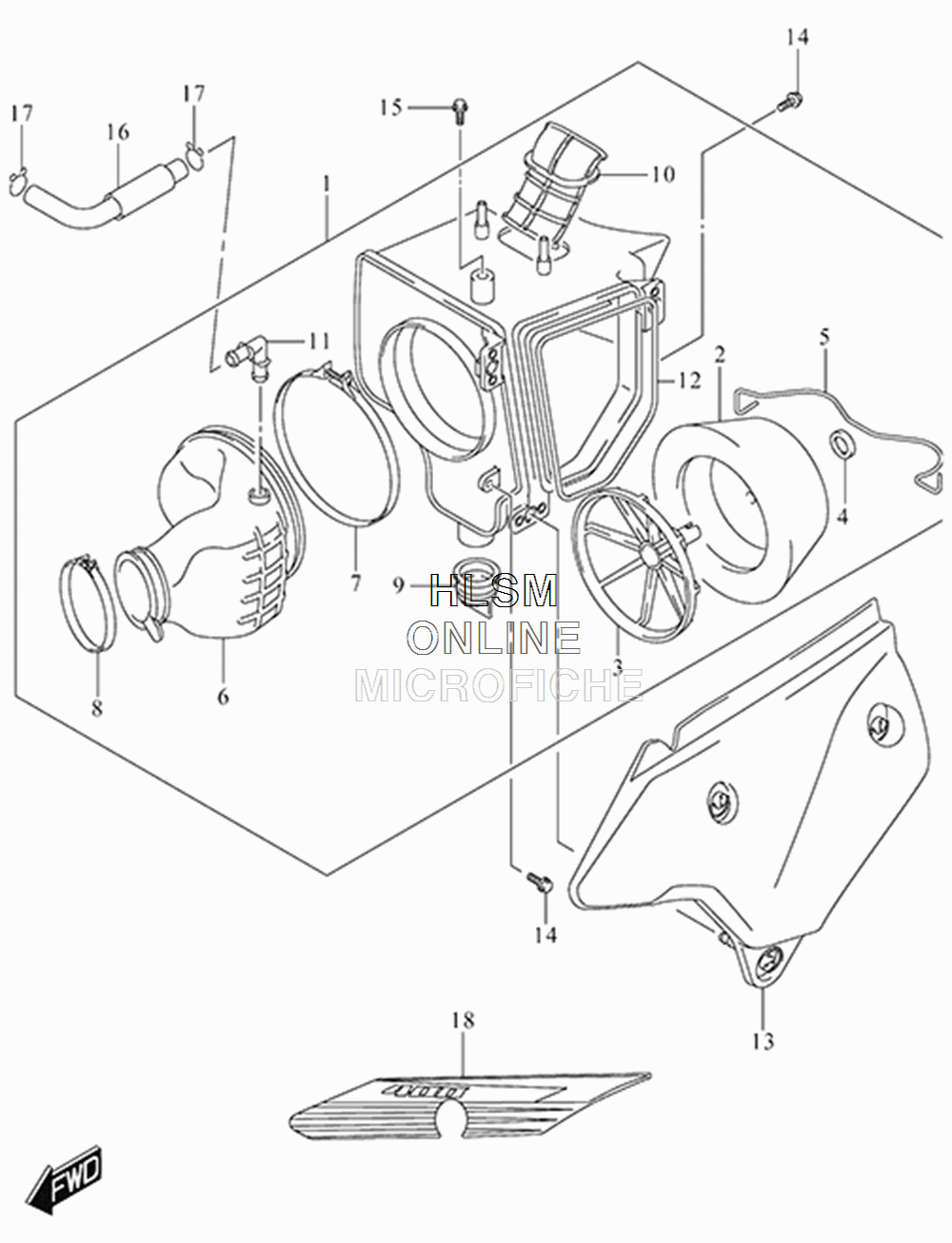

AIR CLEANER для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
113701-29FB2 CLEANER, AIRCLEANER, AIR
-
213780-44E00 ...FILTER, AIR CLEANER...FILTER, AIR CLEANER
-
313791-44E00 ...HOLDER, FILTER...HOLDER, FILTER
-
413796-44E00 ...SPACER...SPACER
-
513941-29F00 ...SPRING...SPRING
-
613881-29FB0 ...TUBE, OUTLET...TUBE, OUTLET
-
713826-29F00 ...CLAMP, OUTLET TUBE...CLAMP, OUTLET TUBE
-
809402-64203 ...CLAMP...CLAMP
-
913872-29F00 ...VALVE...VALVE
-
1013891-29FA0 ...TUBE, INLET...TUBE, INLET
-
1113858-14D20 ...JOINT, BREATHER HOSE...JOINT, BREATHER HOSE
-
1213746-29F00 ...GASKET, AIR CLEANER...GASKET, AIR CLEANER
-
1313740-29FB1-30H CAP, AIR CLEANER (WHITE)CAP, AIR CLEANER (WHITE)
-
1401547-0616A BOLTBOLT
-
1509111-06054 BOLT (6X14...6)BOLT (6X14...6)
-
1613850-29FA1 TUBE, BREATHERTUBE, BREATHER
-
1709401-14101 CLIPCLIP
-
1868145-29FK0 TAPE, AIR CLEANER CAPTAPE, AIR CLEANER CAP
