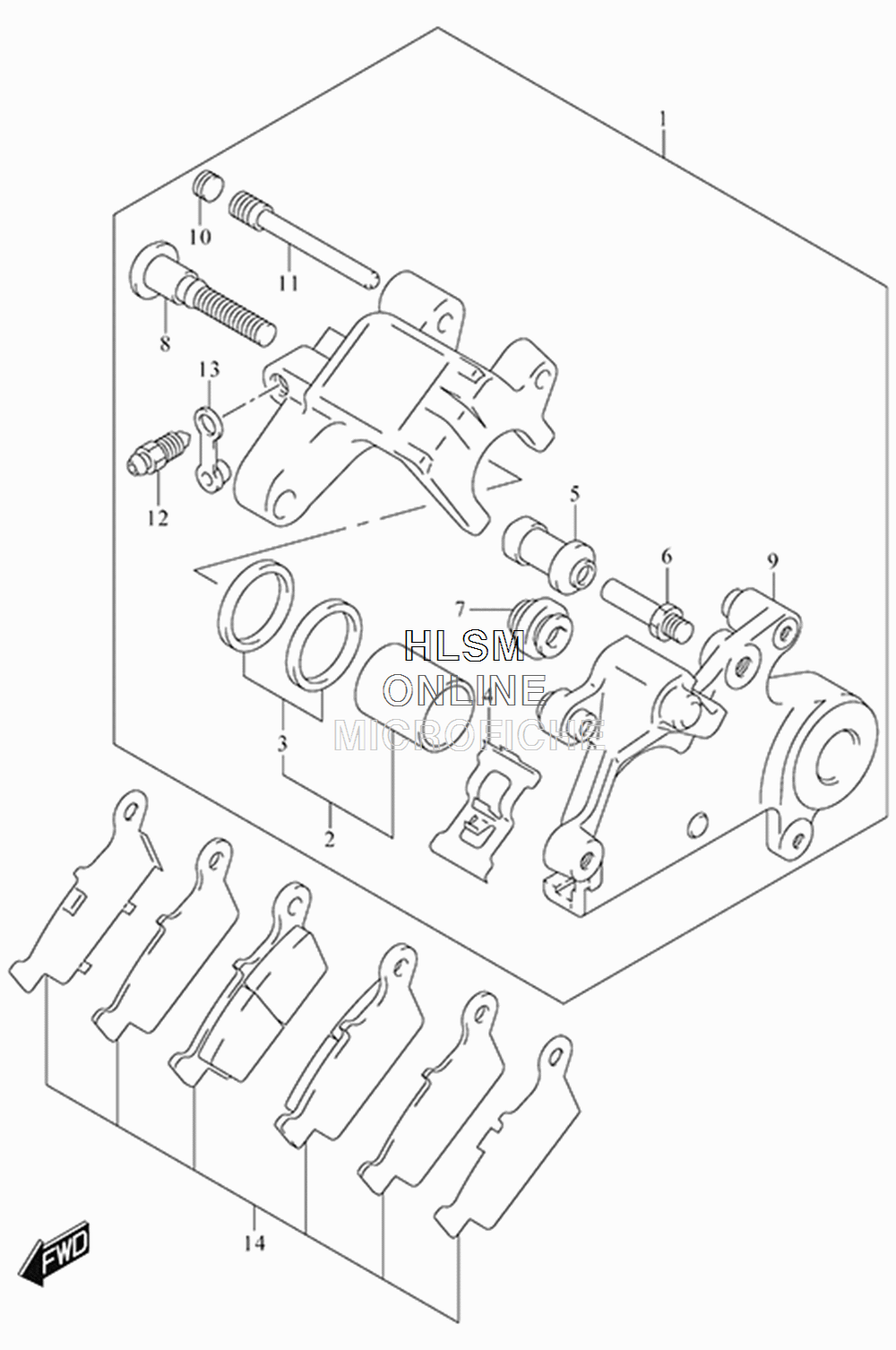

BRAKE - REAR CALIPER для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
169100-44E10-999 CALIPER ASSY, REARCALIPER ASSY, REAR
-
269100-43810 ...PISTON SET...PISTON SET
-
369100-36810 ......SEAL SET, PISTON......SEAL SET, PISTON
-
459315-36E00 ...SPRING, PAD...SPRING, PAD
-
559386-13A00 ...BOOT...BOOT
-
659382-27C30 ...BOLT...BOLT
-
759303-14500 ...BOOT...BOOT
-
859305-36E00 ...PIN, BOLT...PIN, BOLT
-
969351-36E00 ...BRACKET...BRACKET
-
1059146-21E10 ...PLUG, PIN...PLUG, PIN
-
1169345-43D00 ...PIN, HANGER...PIN, HANGER
-
1259121-01A00 ...BLEEDER...BLEEDER
-
1359122-01A00 ...CAP, BLEEDER...CAP, BLEEDER
-
1469100-36850 PAD AND RETAINER SETPAD AND RETAINER SET
