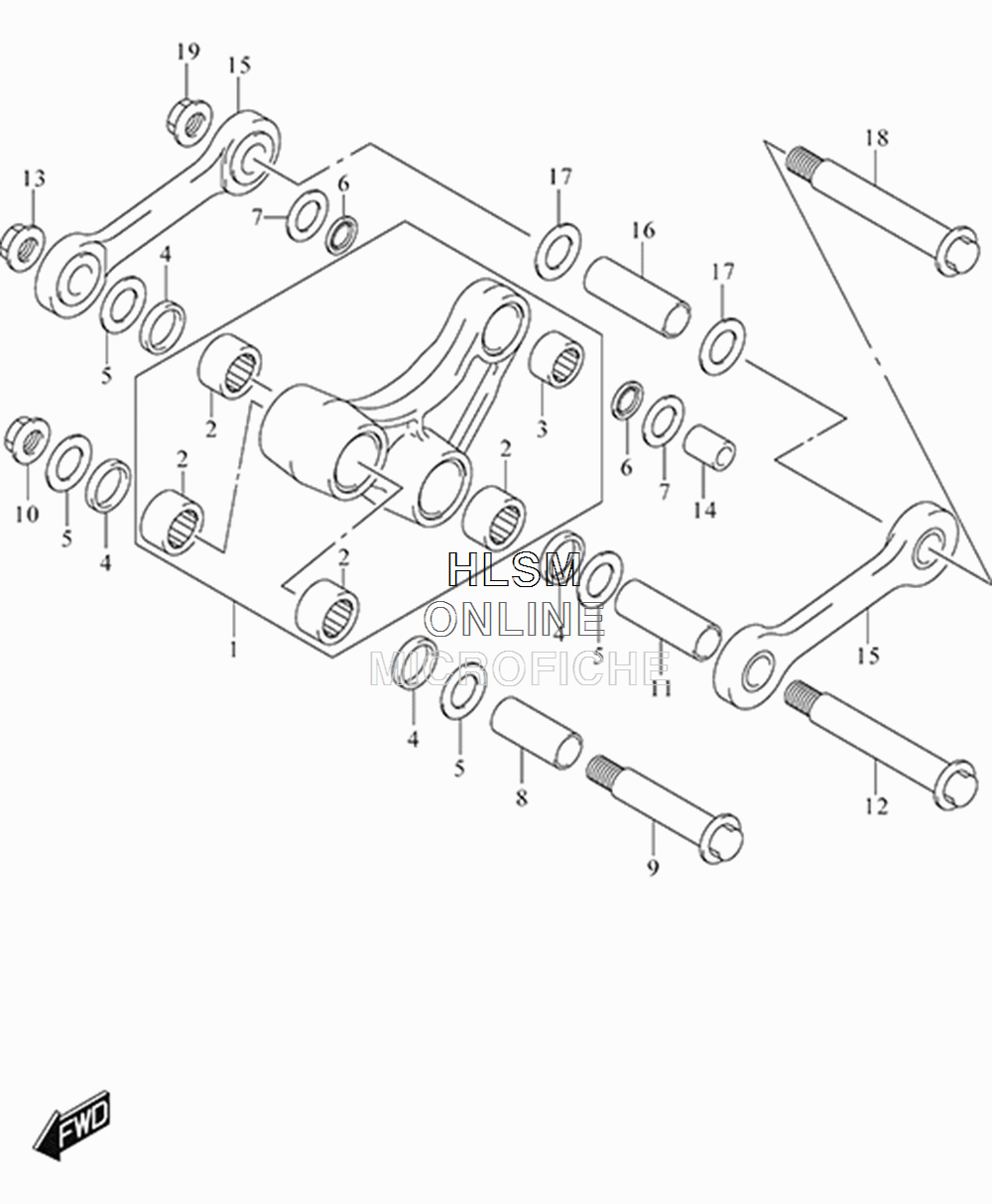

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki DR-Z400S - 2015 года выпуска

№

Артикул

Название
1

62600-37830 LEVER SET, REAR CUSHION

LEVER SET, REAR CUSHION

68 800 ₽
2

09263-20086 ...BEARING (20X27X15)

...BEARING (20X27X15)

2 870 ₽
3

09263-16033 ...BEARING (16X22X12)

...BEARING (16X22X12)

3 540 ₽
4

62624-14500 SEAL, DUST (19X27X4)

SEAL, DUST (19X27X4)

1 090 ₽
5

62647-37E00 THRUST WASHER (20X32.5X1.6)

THRUST WASHER (20X32.5X1.6)

770 ₽
6

09284-16005 OIL SEAL (16X22X2.5)

OIL SEAL (16X22X2.5)

1 220 ₽
7

62685-37E00 THRUST WASHER (16X28.5X1.6)

THRUST WASHER (16X28.5X1.6)

770 ₽
8

62317-37E10 SPACER, REAR CUSHION LEVER FRONT

SPACER, REAR CUSHION LEVER FRONT

3 540 ₽
9

62658-37E01 BOLT, FRONT (12X76)

BOLT, FRONT (12X76)

2 800 ₽
10

09159-12056 NUT

NUT

1 290 ₽
11

62646-37E10 SPACER, CENTER (15X20X57.4)

SPACER, CENTER (15X20X57.4)

3 540 ₽
12

62621-37E01 BOLT, CENTER (12X100)

BOLT, CENTER (12X100)

3 410 ₽
13

09159-12056 NUT

NUT

1 290 ₽
14

62684-36E10 SPACER, REAR (10X16X22)

SPACER, REAR (10X16X22)

2 210 ₽
15

62640-37E11 ROD SET, REAR CUSHION

ROD SET, REAR CUSHION

26 480 ₽
16

62646-37E10 SPACER, ROD (15X20X57.4)

SPACER, ROD (15X20X57.4)

3 540 ₽
17

62647-37E00 THRUST WASHER REAR CUSHION ROD

THRUST WASHER REAR CUSHION ROD

770 ₽
18

62621-37E01 BOLT, ROD (12X100)

BOLT, ROD (12X100)

3 410 ₽
19

09159-12056 NUT

NUT

1 290 ₽
