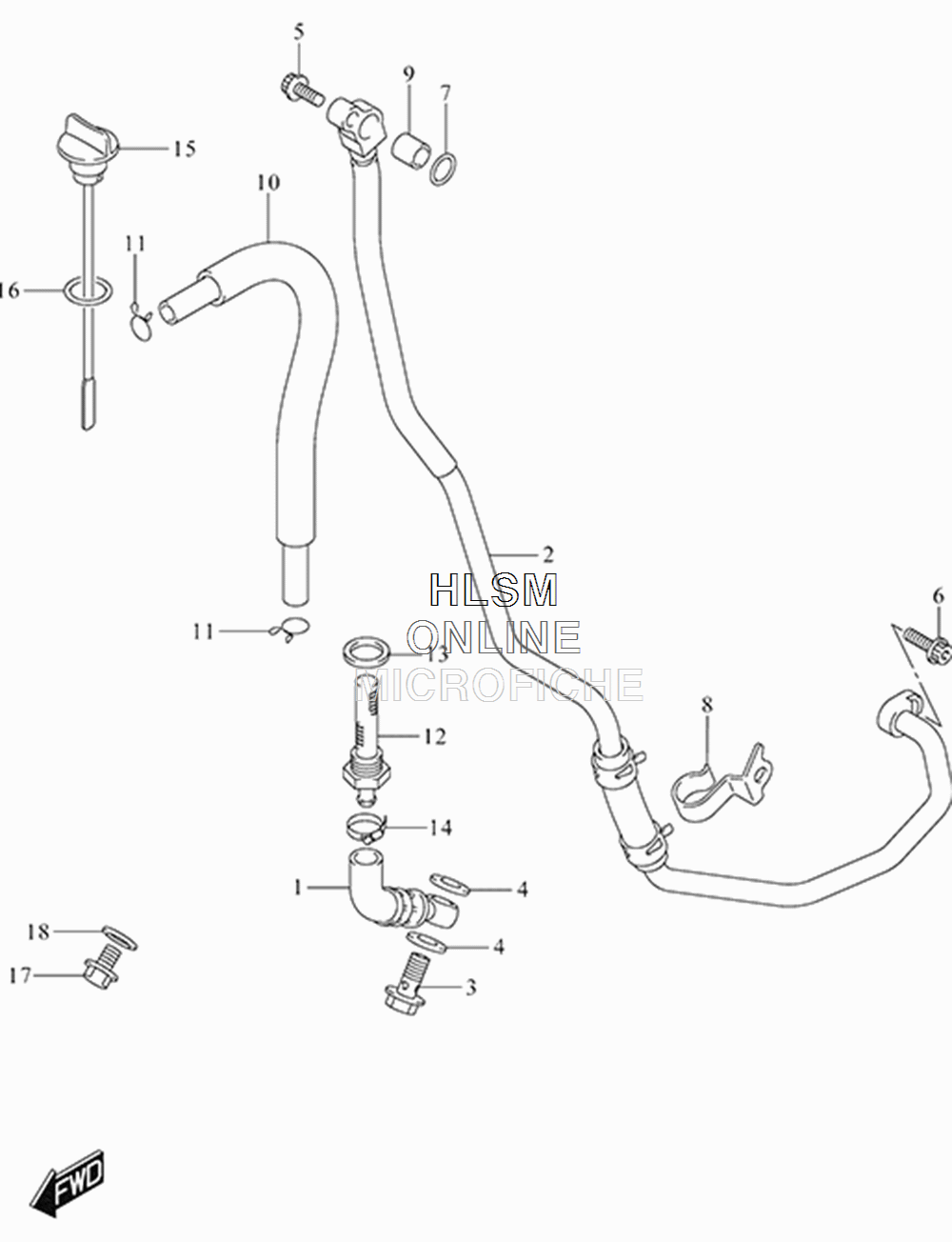

OIL HOSE для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
116460-29F10 HOSE, OIL TANK RIGHT HANDHOSE, OIL TANK RIGHT HAND
-
216470-29F20 HOSE, OIL TANK LEFT HANDHOSE, OIL TANK LEFT HAND
-
309360-14012 UNIONUNION
-
409168-14015 GASKET (14X20X1.5)GASKET (14X20X1.5)
-
507120-0616A BOLTBOLT
-
607120-0620A BOLTBOLT
-
709280-11005 O RING (D:2.4,ID:11)O RING (D:2.4,ID:11)
-
816491-29F11 CLAMP, OIL TANK HOSECLAMP, OIL TANK HOSE
-
904211-11129 PINPIN
-
1016480-29F00 HOSE, OIL OVER FLOWHOSE, OIL OVER FLOW
-
1109401-12403 CLIPCLIP
-
1216550-29F00 STRAINER, FRAME HEAD UNDERSTRAINER, FRAME HEAD UNDER
-
1309168-18007 GASKET (18X22X2)GASKET (18X22X2)
-
1409402-22512 CLAMPCLAMP
-
1516561-29F10 GAUGE, OIL LEVELGAUGE, OIL LEVEL
-
1609280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
1709247-10008 PLUG (10X12) (OIL DRAIN)PLUG (10X12) (OIL DRAIN)
-
1809168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
