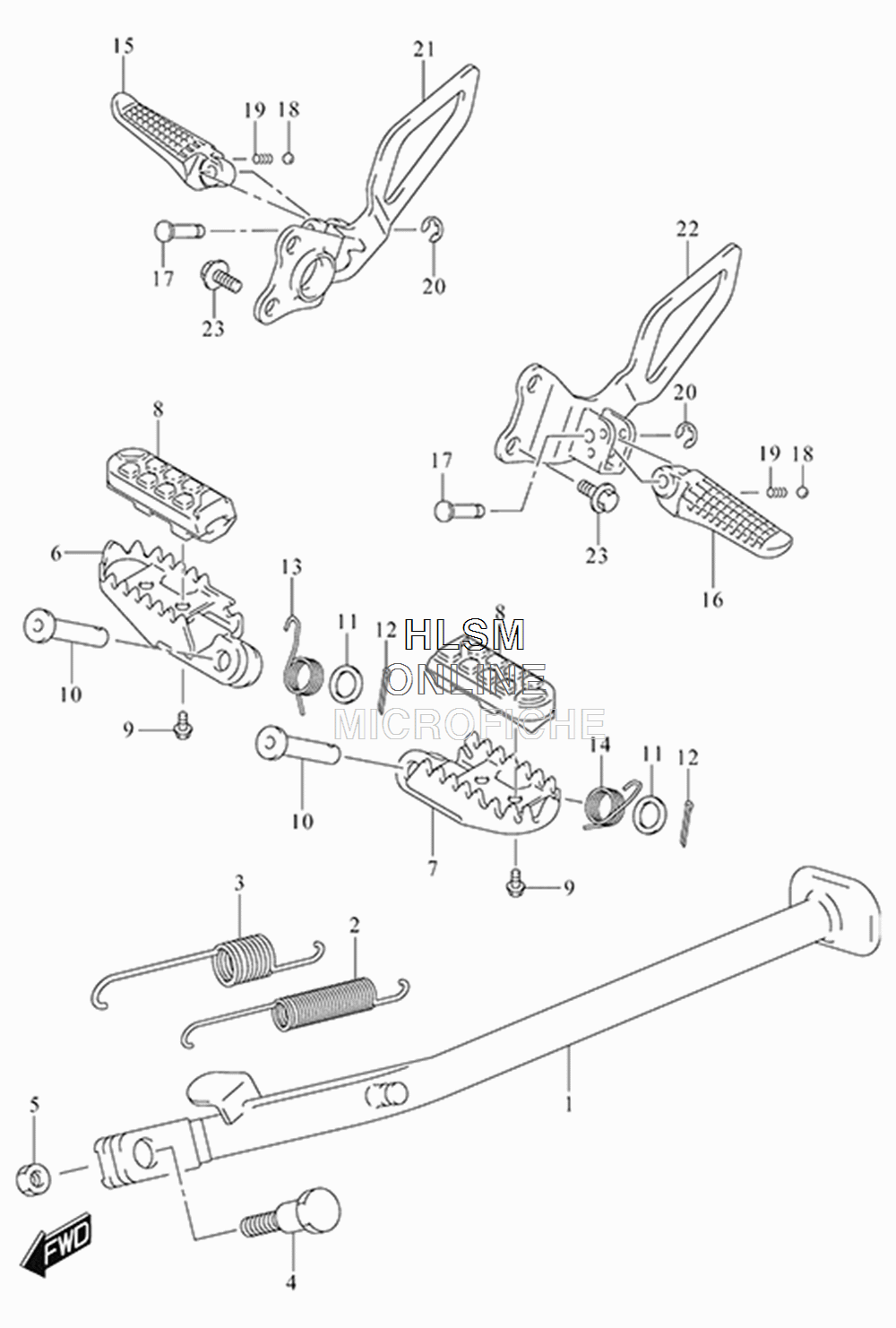

BRAKE PEDAL W/ STAND для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
142310-29F00 STAND, PROPSTAND, PROP
-
209443-12036 SPRINGSPRING
-
309443-19010 SPRINGSPRING
-
409111-10060 BOLT (10X33)BOLT (10X33)
-
542321-03FK0 NUT, PROP STANDNUT, PROP STAND
-
643550-29E01 FOOTREST, RIGHT HANDFOOTREST, RIGHT HAND
-
743560-29E01 FOOTREST, LEFT HANDFOOTREST, LEFT HAND
-
843530-29F00 RUBBER, FOOTRESTRUBBER, FOOTREST
-
901547-0510A BOLTBOLT
-
1009200-10019 PIN (10X41.5)PIN (10X41.5)
-
1108322-0110B WASHERWASHER
-
1204111-2520A COTTER PINCOTTER PIN
-
1309448-18030 SPRINGSPRING
-
1409448-18029 SPRINGSPRING
-
1543611-33E11 BAR, PILLION FOOTREST RIGHT HANDBAR, PILLION FOOTREST RIGHT HAND
-
1643621-33E11 BAR, PILLION FOOTREST LEFT HANDBAR, PILLION FOOTREST LEFT HAND
-
1787259-85510 PIN, PILLION FOOTRESTPIN, PILLION FOOTREST
-
1806111-07004 BALLBALL
-
1909440-05005 SPRINGSPRING
-
2008332-1104B E RINGE RING
-
2143650-29F20 BRACKET, PILLION RIGHT HANDBRACKET, PILLION RIGHT HAND
-
2243750-29F00 BRACKET, PILLION LEFT HANDBRACKET, PILLION LEFT HAND
-
2301550-0816B BOLTBOLT
