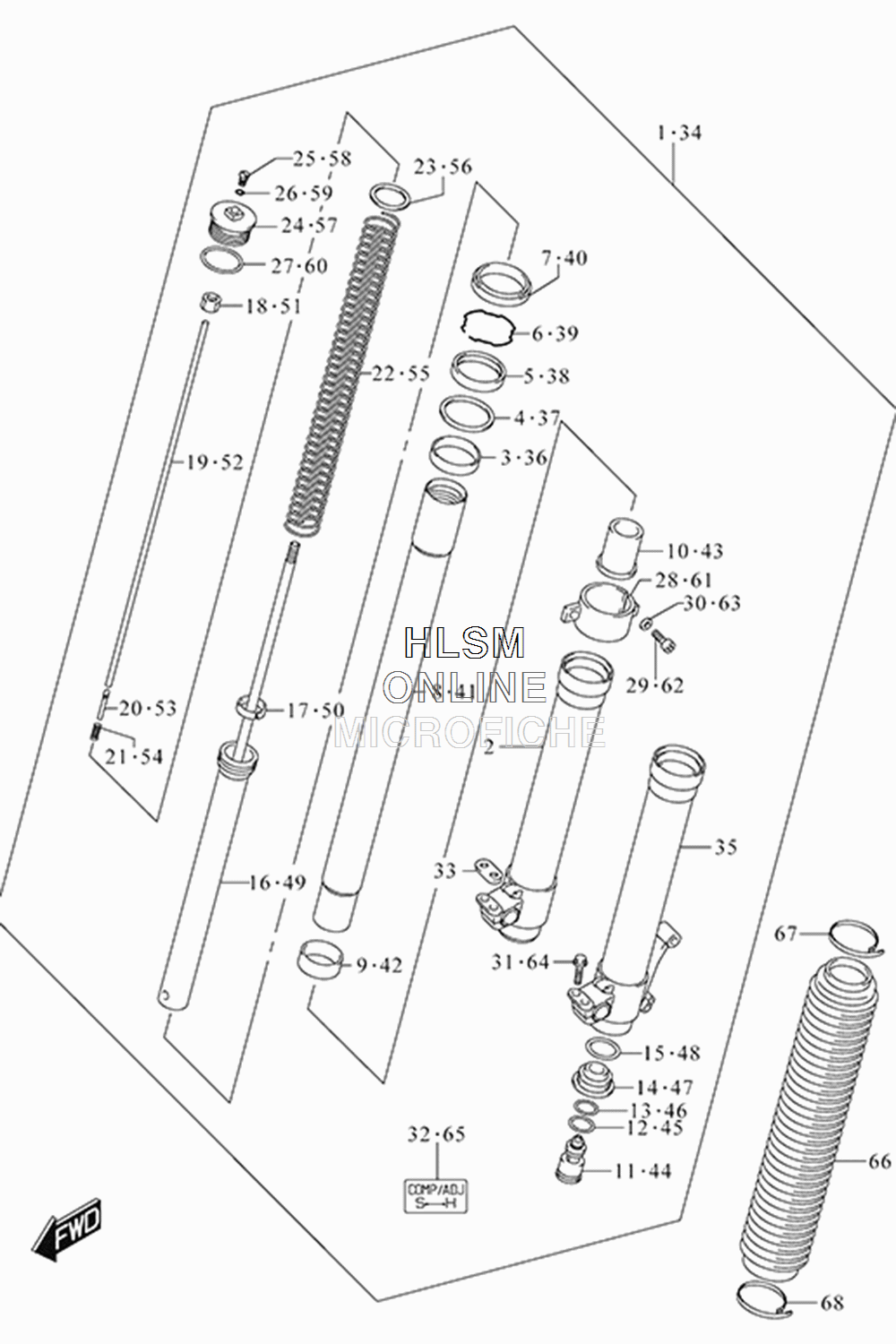

SUSPENSION - FRONT FORK для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
151103-29F60 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251130-29F60 ...TUBE, OUTER RIGHT HAND...TUBE, OUTER RIGHT HAND
-
351167-36E80 ...BUSH, GUIDE...BUSH, GUIDE
-
451158-36E00 ...SPACER, SEAL...SPACER, SEAL
-
551153-36E00 ...SEAL, OIL...SEAL, OIL
-
651156-36E00 ...RING, STOPPER...RING, STOPPER
-
751173-36E00 ...SEAL, DUST...SEAL, DUST
-
851110-29F00 ...TUBE, INNER...TUBE, INNER
-
951121-36E40 ...BUSH, SLIDE...BUSH, SLIDE
-
1051195-29F00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
1151170-29F00 ...BOLT, CENTER...BOLT, CENTER
-
1251175-29F00 ......O RING......O RING
-
1351174-29F00 ......O RING......O RING
-
1451205-29F00 ...PLATE, END...PLATE, END
-
1551117-27C40 ...O RING...O RING
-
1651190-29F00 ...ROD, FRONT DAMPER...ROD, FRONT DAMPER
-
1751122-29F00 ......BUSH, SLIDE......BUSH, SLIDE
-
1851827-33E00 ......NUT......NUT
-
1951191-29F00 ......ROD, PUSH......ROD, PUSH
-
2051192-05D80 ......NEEDLE......NEEDLE
-
2151193-28E00 ......SPRING, PUSH ROD......SPRING, PUSH ROD
-
2251171-29F60 ...SPRING, FR (K=8.63N/0.88KG)...SPRING, FR (K=8.63N/0.88KG)
-
2351192-36E00 ...JOINT, SPRING...JOINT, SPRING
-
2451351-29F00 ...BOLT, FORK...BOLT, FORK
-
2551357-28E30 ......BOLT, PLUG......BOLT, PLUG
-
2651358-28E30 ......O RING, PLUG......O RING, PLUG
-
2751117-36E00 ...O RING...O RING
-
2851203-29F00 ...HOLDER, BOOT...HOLDER, BOOT
-
2907130-05207 ...BOLT...BOLT
-
3009160-05044 ...WASHER (5.5X10X1)...WASHER (5.5X10X1)
-
3151321-27C40 ...BOLT, HANDLE HOLDER...BOLT, HANDLE HOLDER
-
3251149-29E40 ...LABEL...LABEL
-
3351516-29F00 ...COVER, AXLE HOLDER...COVER, AXLE HOLDER
-
3451104-29F60 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
3551140-29F60 ...TUBE, OUTER LEFT HAND...TUBE, OUTER LEFT HAND
-
3651167-36E80 ...BUSH, GUIDE...BUSH, GUIDE
-
3751158-36E00 ...SPACER, SEAL...SPACER, SEAL
-
3851153-36E00 ...SEAL, OIL...SEAL, OIL
-
3951156-36E00 ...RING, STOPPER...RING, STOPPER
-
4051173-36E00 ...SEAL, DUST...SEAL, DUST
-
4151110-29F00 ...TUBE, INNER...TUBE, INNER
-
4251121-36E40 ...BUSH, SLIDE...BUSH, SLIDE
-
4351195-29F00 ...PIECE, OIL LOCK...PIECE, OIL LOCK
-
4451170-29F00 ...BOLT, CENTER...BOLT, CENTER
-
4551175-29F00 ......O RING......O RING
-
4651174-29F00 ......O RING......O RING
-
4751205-29F00 ...PLATE, END...PLATE, END
-
4851117-27C40 ...O RING...O RING
-
4951190-29F00 ...ROD, FRONT DAMPER...ROD, FRONT DAMPER
-
5051122-29F00 ......BUSH, SLIDE......BUSH, SLIDE
-
5151827-33E00 ......NUT......NUT
-
5251191-29F00 ......ROD, PUSH......ROD, PUSH
-
5351192-05D80 ......NEEDLE......NEEDLE
-
5451193-28E00 ......SPRING, PUSH ROD......SPRING, PUSH ROD
-
5551171-29F60 ...SPRING, FR (K=8.63N/0.88KG)...SPRING, FR (K=8.63N/0.88KG)
-
5651192-36E00 ...JOINT, SPRING...JOINT, SPRING
-
5751351-29F00 ...BOLT, FORK...BOLT, FORK
-
5851357-28E30 ......BOLT, PLUG......BOLT, PLUG
-
5951358-28E30 ......O RING, PLUG......O RING, PLUG
-
6051117-36E00 ...O RING...O RING
-
6151203-29F00 ...HOLDER, BOOT...HOLDER, BOOT
-
6207130-05207 ...BOLT...BOLT
-
6309160-05044 ...WASHER (5.5X10X1)...WASHER (5.5X10X1)
-
6451321-27C40 ...BOLT, HANDLE HOLDER...BOLT, HANDLE HOLDER
-
6551149-29E40 ...LABEL...LABEL
-
6651571-29F00-019 BOOT (BLACK)BOOT (BLACK)
-
6751575-29F00 BAND, BOOT UPPERBAND, BOOT UPPER
-
6851576-29F00 BAND, BOOT LOWERBAND, BOOT LOWER
