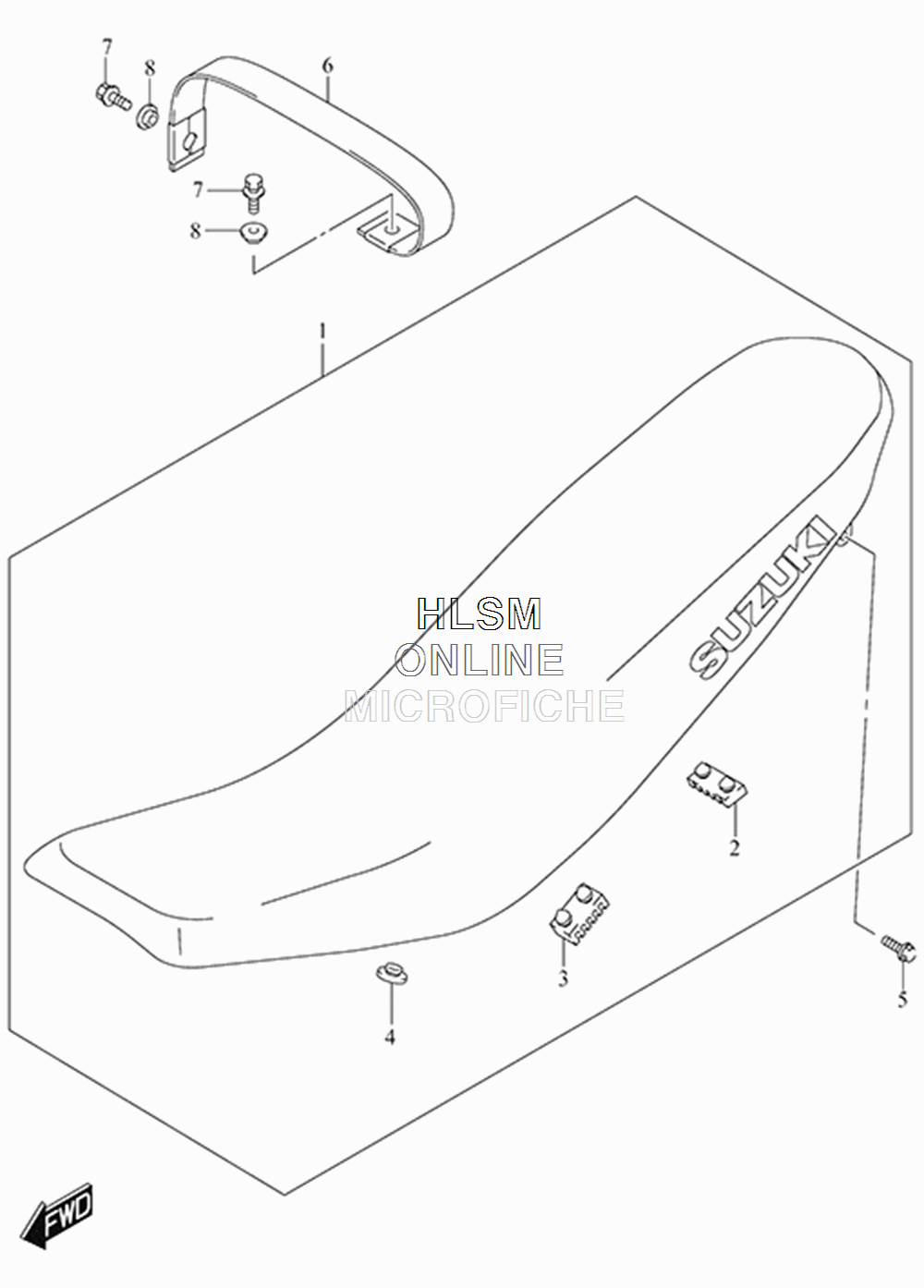

SEAT для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
145100-29FB0-BYD SEAT ASSYSEAT ASSY
-
245149-12C00 ...CUSHION (40X20X6) (FRONT/REAR)...CUSHION (40X20X6) (FRONT/REAR)
-
345149-31300 ...CUSHION (40X20X15) (CENTER)...CUSHION (40X20X15) (CENTER)
-
409321-10022 ...CUSHION...CUSHION
-
509116-06182 BOLT (6X20)BOLT (6X20)
-
645180-29F00-T5N BAND ASSY, SEAT (GRAY)BAND ASSY, SEAT (GRAY)
-
709116-06150 BOLT (6X25)BOLT (6X25)
-
809169-06063 WASHERWASHER
