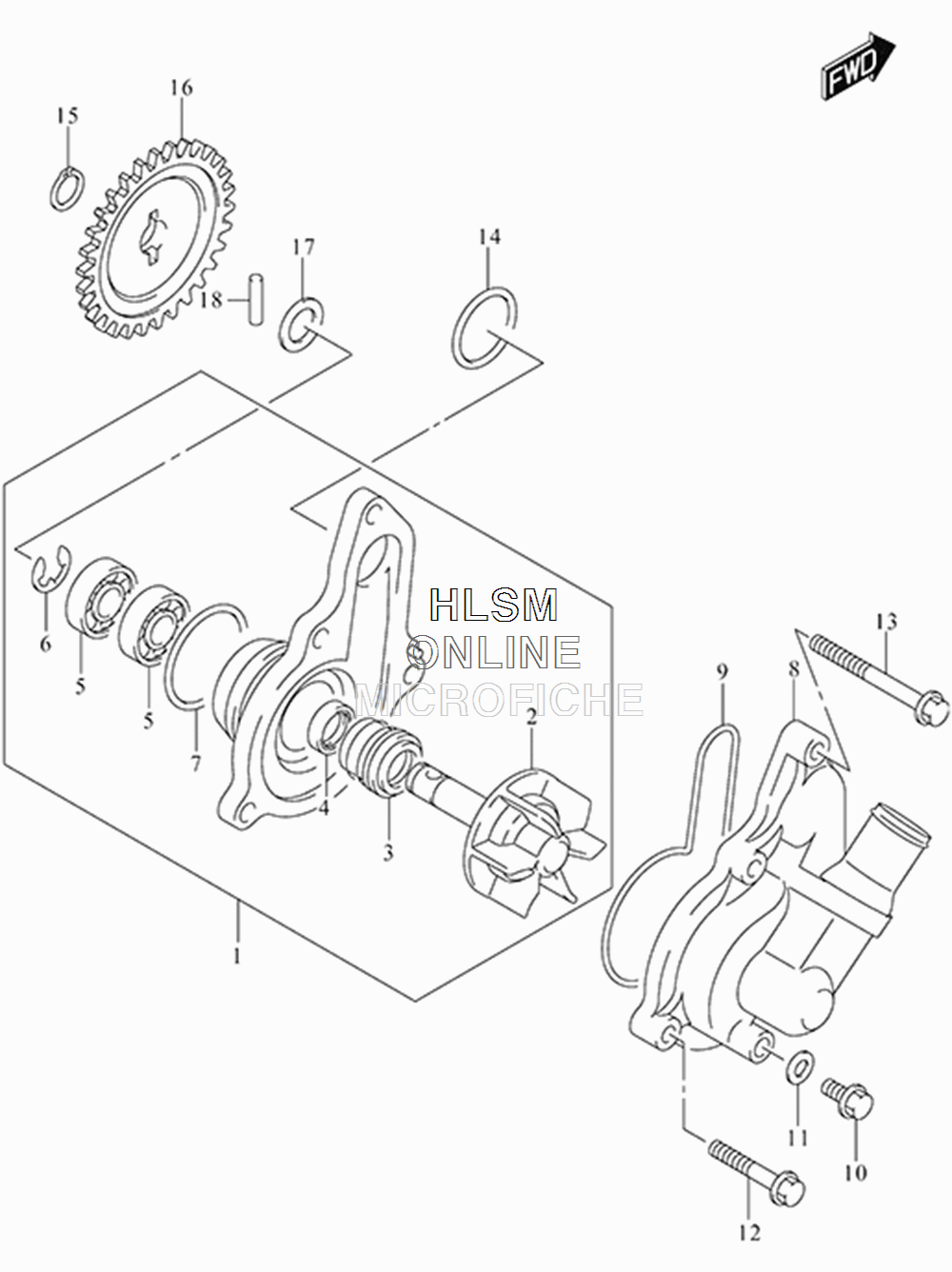

WATER PUMP для Suzuki DR-Z400S - 2015 года выпуска
-
№АртикулНазвание
-
117400-29F10 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-29F10 ...IMPELLER SHAFT...IMPELLER SHAFT
-
317470-02F10 ...SEAL, WATER PUMP SHAFT MECHANICAL...SEAL, WATER PUMP SHAFT MECHANICAL
-
409283-10004 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
508110-69000 ...BEARING...BEARING
-
608332-1108A ...E RING...E RING
-
717435-33400 ...O RING...O RING
-
817410-29F21 CASE, WATER PUMPCASE, WATER PUMP
-
917435-29F00 O RINGO RING
-
1001547-0610A BOLTBOLT
-
1109168-06026 GASKET (6.4X11.5X0.8)GASKET (6.4X11.5X0.8)
-
1209103-06204 BOLT (6X30)BOLT (6X30)
-
1309103-06209 BOLT (6X45)BOLT (6X45)
-
1409280-22001 O RING (D:2.4,ID:21.8)O RING (D:2.4,ID:21.8)
-
1508331-31109 CIRCLIPCIRCLIP
-
1617461-29F00 GEAR, WATER PUMP DRIVEN (NT:30)GEAR, WATER PUMP DRIVEN (NT:30)
-
1709181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
1809261-04001 PIN (4X18.5)PIN (4X18.5)
