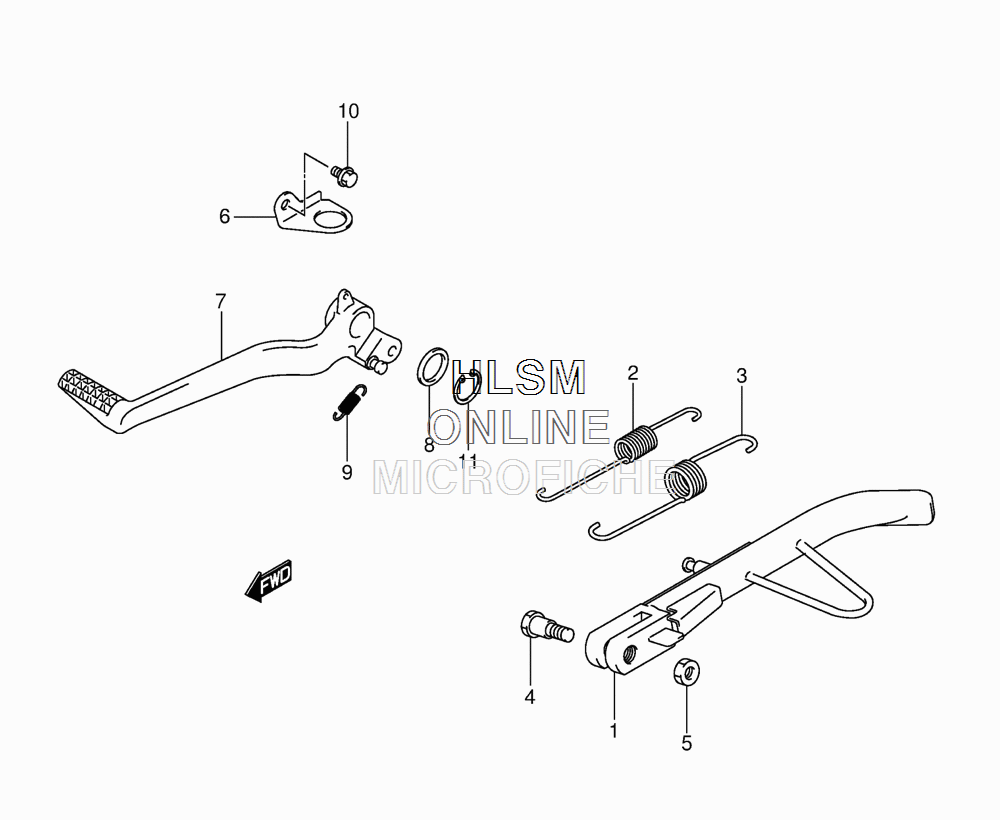

BRAKE PEDAL W/ STAND для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
142310-48H10 STAND, PROPSTAND, PROP
-
242423-48H00 SPRING, PROP STANDSPRING, PROP STAND
-
342424-48H00 SPRING, PROP STAND OUTERSPRING, PROP STAND OUTER
-
409111-10036 BOLT (10X38)BOLT (10X38)
-
542321-48H00 NUTNUT
-
641577-48H00 BRACKET, STOP LAMP SWITCHBRACKET, STOP LAMP SWITCH
-
743111-48H00 PEDAL, BRAKEPEDAL, BRAKE
-
809160-18040 WASHER (18X24X1)WASHER (18X24X1)
-
909443-11033 SPRINGSPRING
-
1001550-0508A BOLTBOLT
-
1108331-3118A CIRCLIPCIRCLIP
