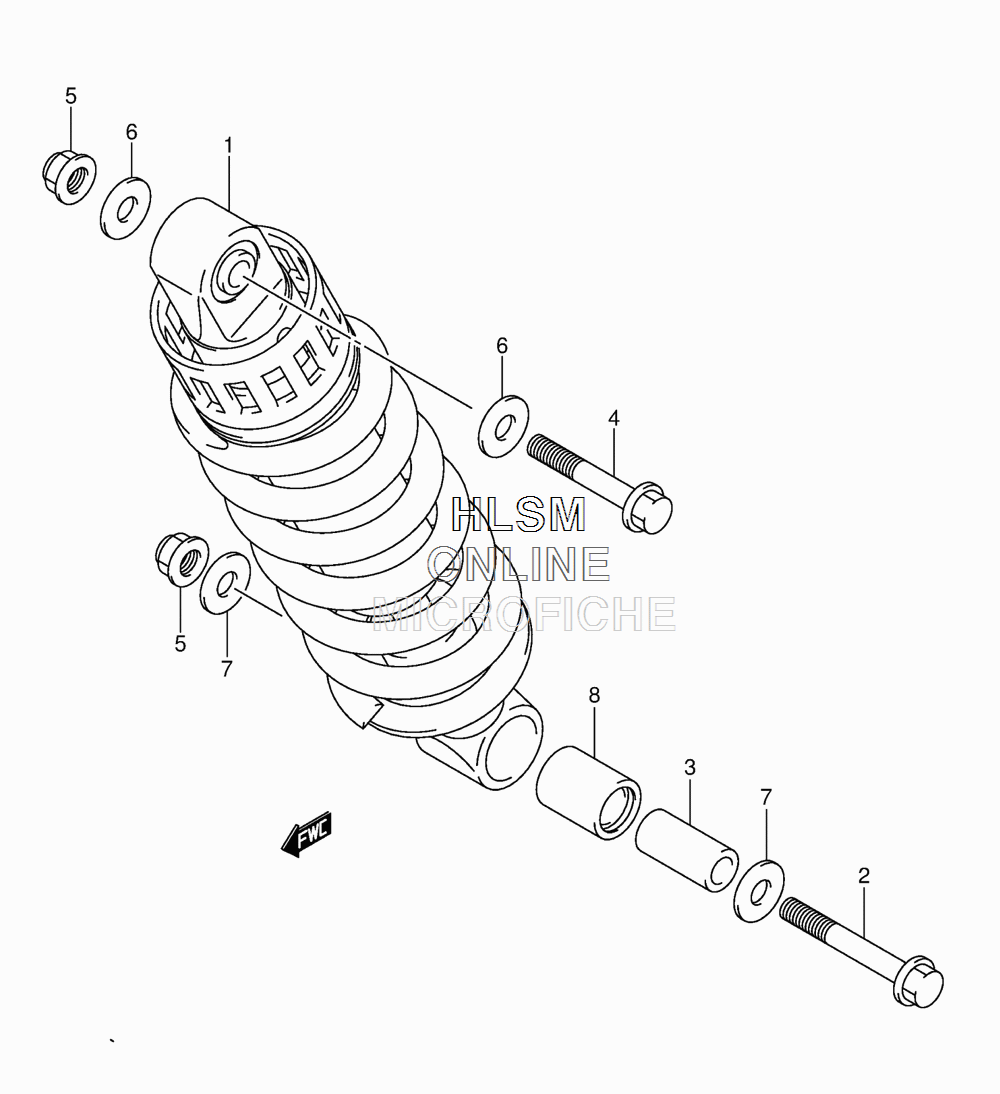

SUSPENSION - SHOCKS REAR для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
162100-48H20-28W ABSORBER ASSY, REAR SHOCK (WHITE)ABSORBER ASSY, REAR SHOCK (WHITE)
-
262313-48H00 BOLT, REAR SHOCK ABS LOWERBOLT, REAR SHOCK ABS LOWER
-
362317-48H00 SPACER, REAR SHOCK ABS LOWERSPACER, REAR SHOCK ABS LOWER
-
409103-10213 BOLT (10X52)BOLT (10X52)
-
509159-10115 NUTNUT
-
609160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
709160-10093 WASHER (10.5X24X2.3)WASHER (10.5X24X2.3)
-
809263-17L01 BEARING (17X24X32)BEARING (17X24X32)
