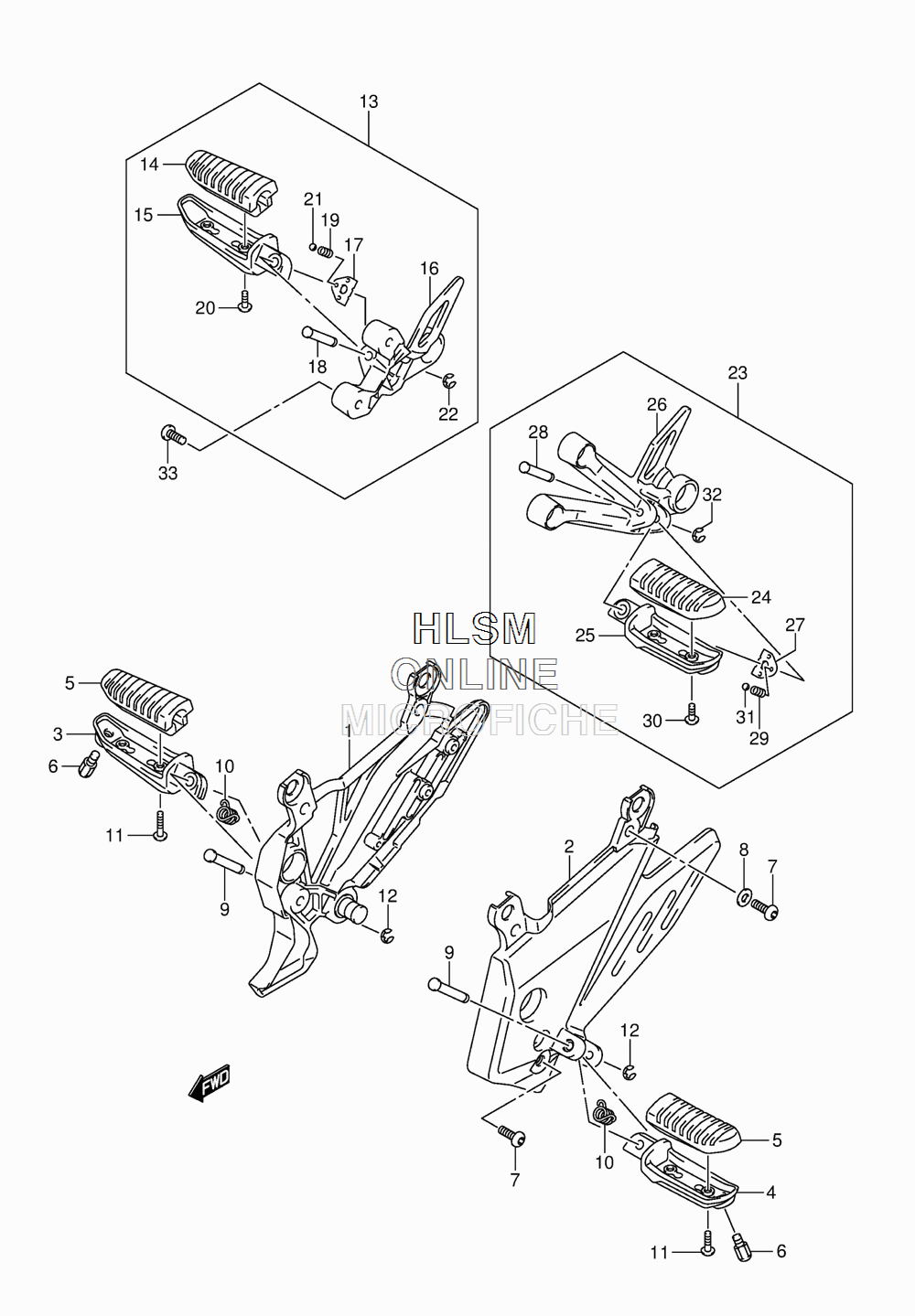

FOOTREST для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
143510-48H00 BRACKET, FOOTREST RIGHT HANDBRACKET, FOOTREST RIGHT HAND
-
243521-48H00 BRACKET, FOOTREST LEFT HANDBRACKET, FOOTREST LEFT HAND
-
343511-44G10 BAR, FRONT FOOTREST RIGHT HANDBAR, FRONT FOOTREST RIGHT HAND
-
443521-44G10 BAR, FRONT FOOTREST LEFT HANDBAR, FRONT FOOTREST LEFT HAND
-
543550-44G20 RUBBER, FOOTRESTRUBBER, FOOTREST
-
643576-48H00 BOLT, BANK SENSORBOLT, BANK SENSOR
-
709106-08194 BOLT (8X20)BOLT (8X20)
-
809160-09015 WASHER (9X19X1.0)WASHER (9X19X1.0)
-
909208-08022 PINPIN
-
1009448-16033 SPRINGSPRING
-
1102142-0512A SCREWSCREW
-
1208332-1106A E RINGE RING
-
1343600-48H00 FOOTREST ASSY, PILLION RIGHT HANDFOOTREST ASSY, PILLION RIGHT HAND
-
1443550-44G00 RUBBER, FOOTRESTRUBBER, FOOTREST
-
1543611-44G00 BAR, PILLION FOOTREST RIGHT HANDBAR, PILLION FOOTREST RIGHT HAND
-
1643811-48H00 BRACKET, PILLION FOOTREST RIGHT HANDBRACKET, PILLION FOOTREST RIGHT HAND
-
1743816-01H10 PLATE, PILLION FOOTRESTPLATE, PILLION FOOTREST
-
1809208-08021 PINPIN
-
1909440-05003 SPRINGSPRING
-
2002142-0512A SCREWSCREW
-
2106111-07004 STEEL BALL 7/32STEEL BALL 7/32
-
2208332-1106A E RINGE RING
-
2343700-48H00 FOOTREST ASSY, PILLION LEFT HANDFOOTREST ASSY, PILLION LEFT HAND
-
2443550-44G00 RUBBER, FOOTRESTRUBBER, FOOTREST
-
2543621-44G00 BAR, PILLION FOOTREST LEFT HANDBAR, PILLION FOOTREST LEFT HAND
-
2643821-48H00 BRACKET, PILLION FOOTREST LEFT HANDBRACKET, PILLION FOOTREST LEFT HAND
-
2743816-01H10 PLATE, PILLION FOOTRESTPLATE, PILLION FOOTREST
-
2809208-08021 PINPIN
-
2909440-05003 SPRINGSPRING
-
3002142-0512A SCREWSCREW
-
3106111-07004 STEEL BALL 7/32STEEL BALL 7/32
-
3208332-1106A E RINGE RING
-
3309106-08150 BOLT (8X23)BOLT (8X23)
