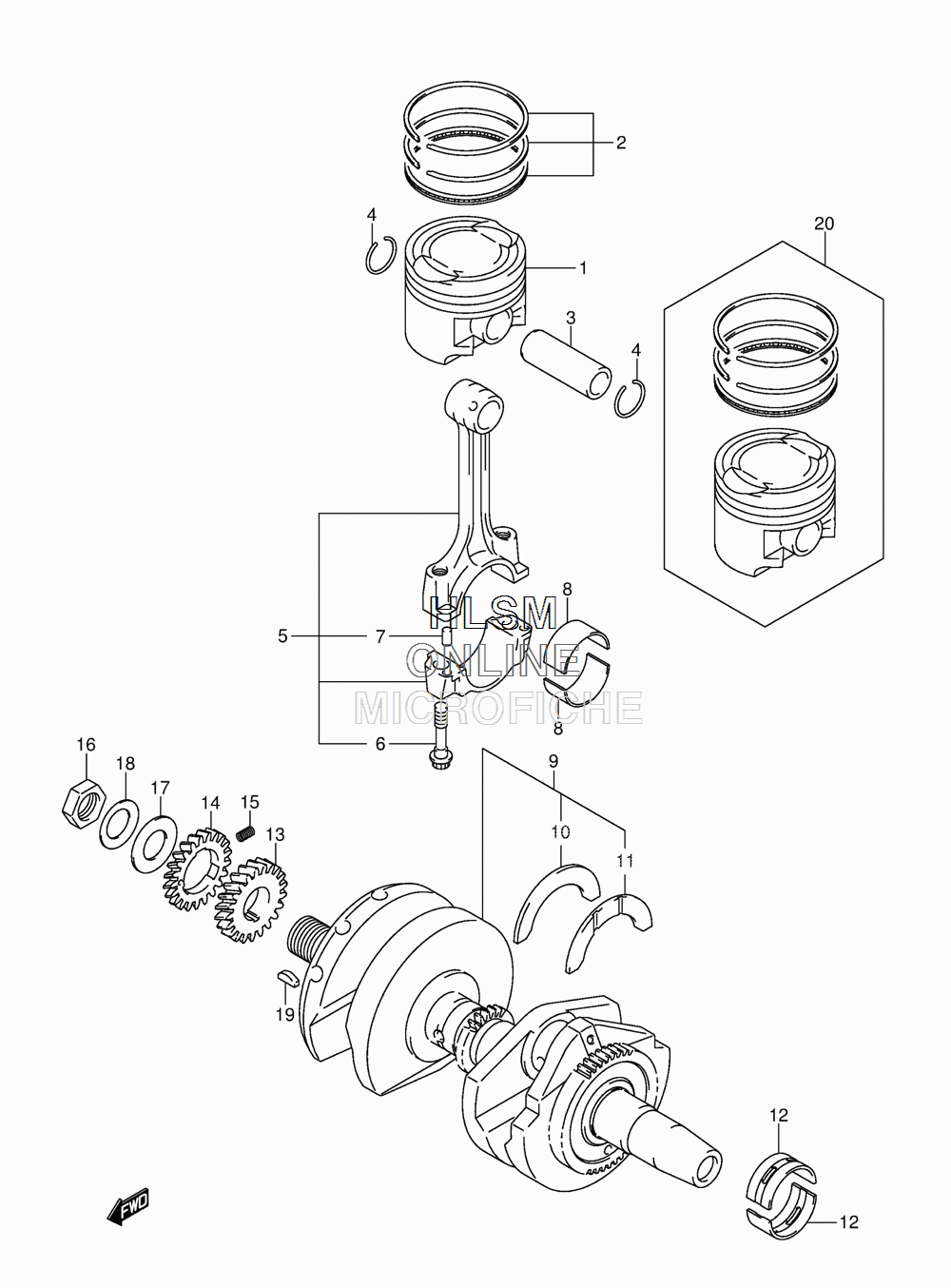

CRANKSHAFT W/ PISTON для Suzuki GW250 L4 - 2014 года выпуска

№

Артикул

Название
1

12111-48H00-0F0 PISTON (YELLOW)

PISTON (YELLOW)

115 700 ₽
2

12140-48H00 RING SET, PISTON

RING SET, PISTON

2 610 ₽
3

12151-48H00 PIN, PISTON

PIN, PISTON

1 010 ₽
4

09381-15001 CIRCLIP

CIRCLIP

250 ₽
5

12160-48H00 CONNROD ASSY

CONNROD ASSY

29 150 ₽
6

12163-35F00 BOLT, CONNROD

BOLT, CONNROD

1 860 ₽
7

04221-04089 PIN 4X8

PIN 4X8

190 ₽
8

12164-39F00-0A0 BEARING, CRANK PIN (GREEN)

BEARING, CRANK PIN (GREEN)

54 600 ₽
8

12164-39F00-0B0 BEARING, CRANK PIN (BLACK)

BEARING, CRANK PIN (BLACK)

54 600 ₽
8

12164-39F00-0C0 BEARING, CRANK PIN (BROWN)

BEARING, CRANK PIN (BROWN)

54 600 ₽
8

12164-39F00-0D0 BEARING, CRANK PIN (YELLOW)

BEARING, CRANK PIN (YELLOW)

54 600 ₽
9

12200-48830 CRANKSHAFT SET (SMC)

CRANKSHAFT SET (SMC)

390 ₽
9

12200-48840 CRANKSHAFT SET (CZHS)

CRANKSHAFT SET (CZHS)

520 ₽
10

12228-17E00-0E0 BEARING, THRUST LEFT HAND (YELLOW)

BEARING, THRUST LEFT HAND (YELLOW)

45 500 ₽
11

12228-17E00-0E0 BEARING, THRUST RIGHT HAND (YELLOW)

BEARING, THRUST RIGHT HAND (YELLOW)

45 500 ₽
11

12228-17E00-0F0 BEARING, THRUST RIGHT HAND (WHITE)

BEARING, THRUST RIGHT HAND (WHITE)

45 500 ₽
11

12228-17E00-0G0 BEARING, THRUST RIGHT HAND (ORANGE)

BEARING, THRUST RIGHT HAND (ORANGE)

45 500 ₽
11

12228-17E00-0H0 BEARING, THRUST RIGHT HAND (PINK)

BEARING, THRUST RIGHT HAND (PINK)

45 500 ₽
11

12228-17E00-0J0 BEARING, THRUST RIGHT HAND (BROWN)

BEARING, THRUST RIGHT HAND (BROWN)

45 500 ₽
11

12228-17E00-0K0 BEARING, THRUST RIGHT HAND (PURPLE)

BEARING, THRUST RIGHT HAND (PURPLE)

45 500 ₽
11

12228-17E00-0L0 BEARING, THRUST RIGHT HAND (NO COLOR)

BEARING, THRUST RIGHT HAND (NO COLOR)

45 500 ₽
12

12229-48H10-0A0 BEARING, CRANKSHAFT (GREEN)

BEARING, CRANKSHAFT (GREEN)

119 600 ₽
12

12229-48H10-0B0 BEARING, CRANKSHAFT (BLACK)

BEARING, CRANKSHAFT (BLACK)

132 600 ₽
12

12229-48H10-0C0 BEARING ,CRANKSHAFT (BROWN)

BEARING ,CRANKSHAFT (BROWN)

132 600 ₽
12

12229-48H10-0D0 BEARING, CRANKSHAFT (YELLOW)

BEARING, CRANKSHAFT (YELLOW)

132 600 ₽
13

21111-48H00 GEAR, PRIMARY DRIVE (NT:21)

GEAR, PRIMARY DRIVE (NT:21)

7 690 ₽
14

21112-48H00 GEAR, PRIMARY DRIVE NO.2 (NT:21)

GEAR, PRIMARY DRIVE NO.2 (NT:21)

3 380 ₽
15

21114-35C00 SPRING, PRI DRIVE GEAR

SPRING, PRI DRIVE GEAR

580 ₽
16

09140-18023 NUT

NUT

510 ₽
17

09160-18039 WASHER (18X36X1.5)

WASHER (18X36X1.5)

350 ₽
18

09164-18012 WASHER

WASHER

180 ₽
19

09420-04008 KEY

KEY

600 ₽
20

12100-48H00-050 PISTON SET (OS:0.5) (OPT)

PISTON SET (OS:0.5) (OPT)

179 400 ₽
