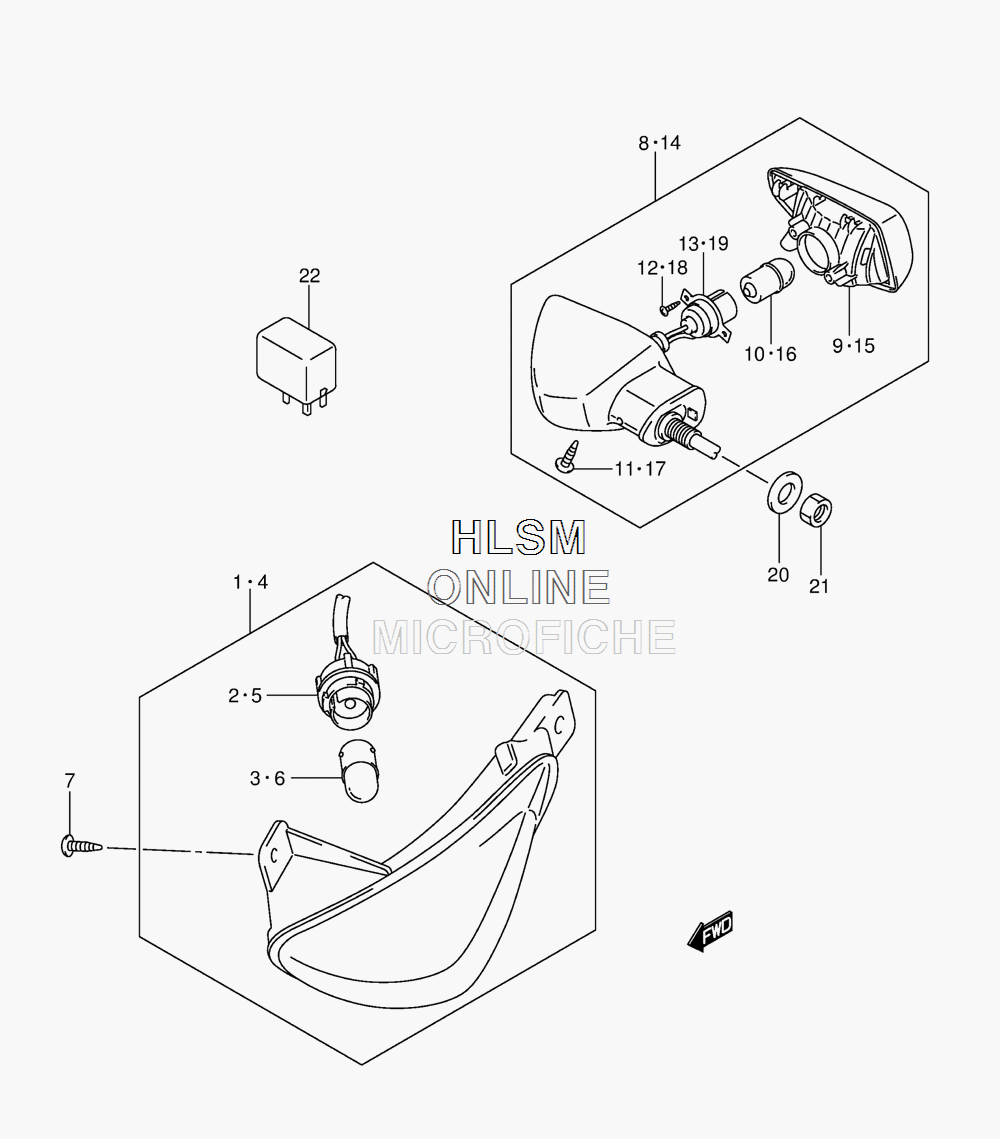

TURN SIGNAL ASSY. для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
135601-48H30 LAMP ASSY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSY, FRONT TURNSIGNAL RIGHT HAND
-
235618-48H00 CORDCORD
-
309471-12226 BULB (12V,10W)BULB (12V,10W)
-
435602-48H30 LAMP ASSY, FRONT TURNSIGNAL LEFT HANDLAMP ASSY, FRONT TURNSIGNAL LEFT HAND
-
535638-48H00 CORDCORD
-
609471-12226 BULB (12V,10W)BULB (12V,10W)
-
703541-0516A SCREWSCREW
-
835603-48H02 LAMP ASSY, REAR TURNSIGNAL RIGHT HANDLAMP ASSY, REAR TURNSIGNAL RIGHT HAND
-
935650-48H01 LAMP UNIT RIGHT HANDLAMP UNIT RIGHT HAND
-
1009471-12226 BULB (12V,10W)BULB (12V,10W)
-
1103241-0412B SCREWSCREW
-
1235623-48H00 SCREWSCREW
-
1335658-48H00 CORD RIGHT HANDCORD RIGHT HAND
-
1435604-48H02 LAMP ASSY, REAR TURNSIGNAL LEFT HANDLAMP ASSY, REAR TURNSIGNAL LEFT HAND
-
1535670-48H01 LAMP UNIT LEFT HANDLAMP UNIT LEFT HAND
-
1609471-12226 BULB (12V,10W)BULB (12V,10W)
-
1703241-0412B SCREWSCREW
-
1835623-48H00 SCREWSCREW
-
1935678-48H00 CORD LEFT HANDCORD LEFT HAND
-
2035679-48H00 WASHER, REAR TURNSIGNAL LAMPWASHER, REAR TURNSIGNAL LAMP
-
2108310-0010A NUTNUT
-
2238610-26H02 RELAY ASSY, TURNSIGNAL LAMPRELAY ASSY, TURNSIGNAL LAMP
