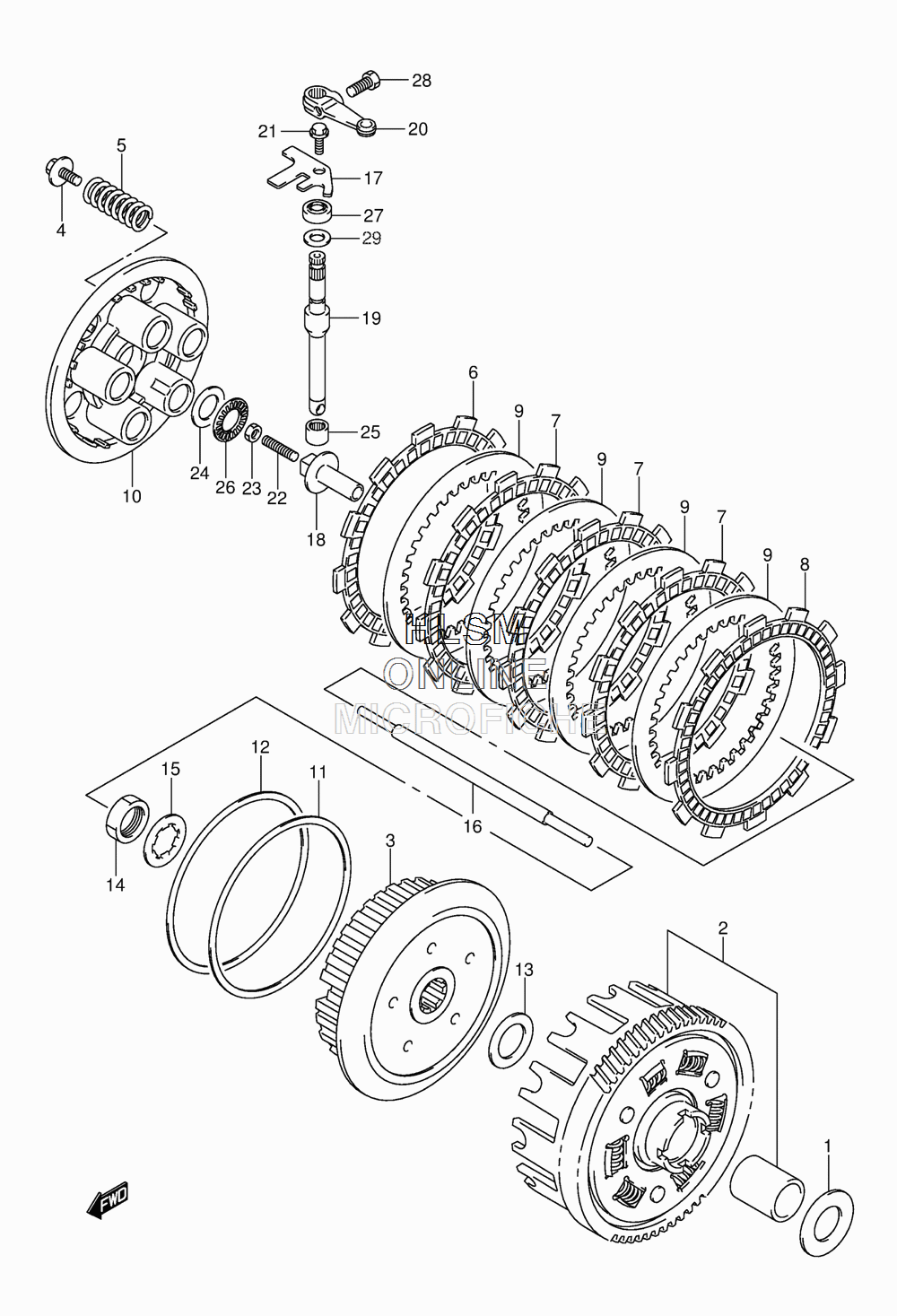

CLUTCH для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
108211-22363 WASHERWASHER
-
221200-48880 GEAR ASSY, PRIMARY DRIVEN (NT:68)GEAR ASSY, PRIMARY DRIVEN (NT:68)
-
321411-48H00 HUB, CLUTCH SLEEVEHUB, CLUTCH SLEEVE
-
421412-48H00 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
521413-48H00 SPRING, CLUTCHSPRING, CLUTCH
-
621441-48H00 PLATE, CLUTCH DRIVE NO.1 (T:3.0)PLATE, CLUTCH DRIVE NO.1 (T:3.0)
-
721441-48H10 PLATE, CLUTCH DRIVE NO.2 (T:3.0)PLATE, CLUTCH DRIVE NO.2 (T:3.0)
-
821442-48H00 PLATE, CLUTCH DRIVE NO.3 (T:3.5)PLATE, CLUTCH DRIVE NO.3 (T:3.5)
-
921451-48H00 PLATE, CLUTCH DRIVEN (T:2.0)PLATE, CLUTCH DRIVEN (T:2.0)
-
1021462-48H00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1121471-48H00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
1221472-48H00 WASHER, CLUTCH SLEEVE HUB WAVEWASHER, CLUTCH SLEEVE HUB WAVE
-
1321252-48H00 WASHER, THRUSTWASHER, THRUST
-
1409140-22005 NUTNUT
-
1509167-22029 WASHERWASHER
-
1623110-48H00 ROD, CLUTCH PUSHROD, CLUTCH PUSH
-
1723117-48H00 RETAINER, CL RELEASE OIL SEALRETAINER, CL RELEASE OIL SEAL
-
1823121-48H00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
1923122-48H02 CAMSHAFT, CLUTCH RELEASECAMSHAFT, CLUTCH RELEASE
-
2023271-48H00 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
2109103-06233 BOLT (6X12)BOLT (6X12)
-
2209134-06018 SCREWSCREW
-
2309140-06023 NUTNUT
-
2409160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
2509263-10L01 BEARING (10X14X10)BEARING (10X14X10)
-
2609263-15L01 BEARING (15X28X2)BEARING (15X28X2)
-
2709285-10L01 OIL SEALOIL SEAL
-
2801500-0616A BOLTBOLT
-
2909160-12119 WASHER (12.5X17X1)WASHER (12.5X17X1)
