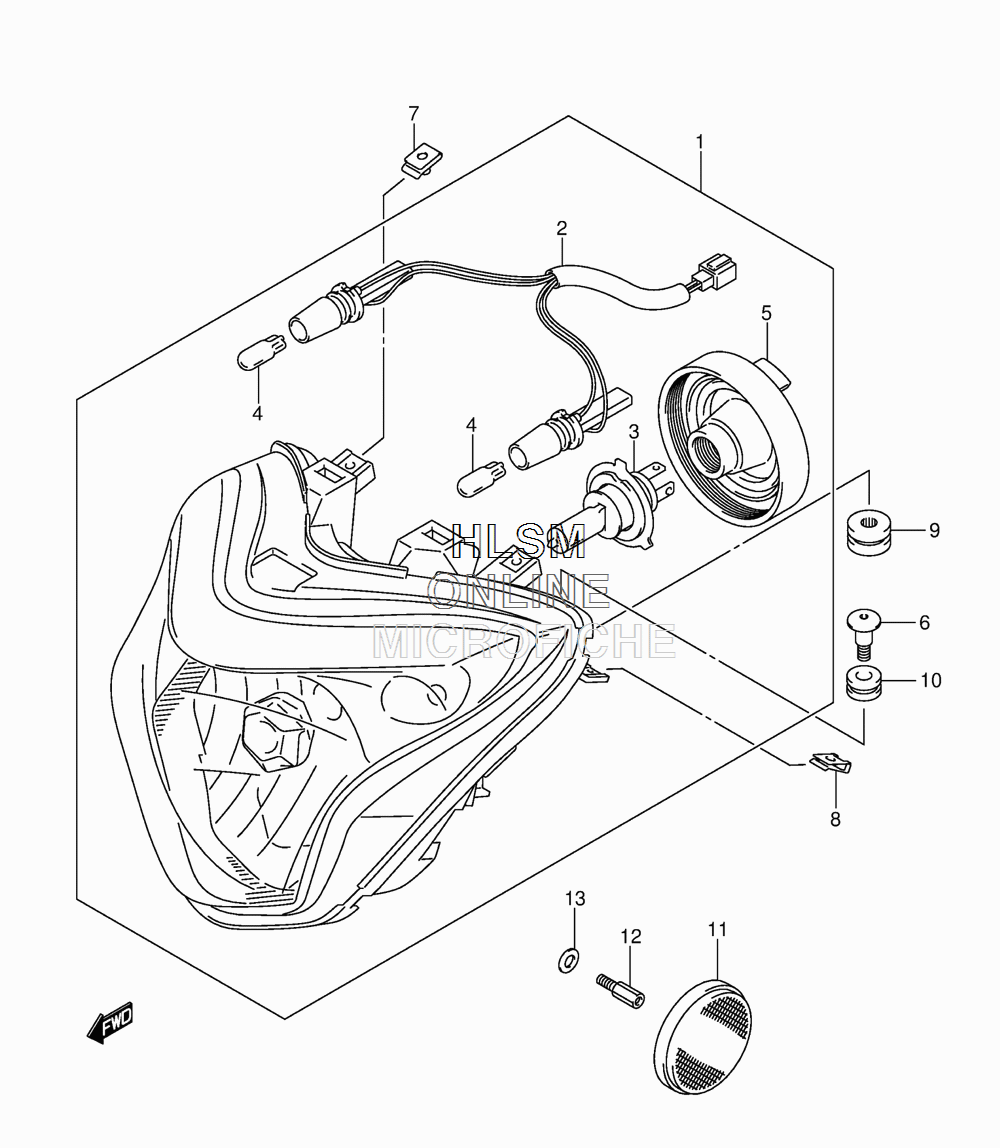

HEADLAMP для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
135100-48H30 HEADLAMP ASSYHEADLAMP ASSY
-
236118-48H01 CORD ASSYCORD ASSY
-
309471-12060 BULB (12V,60/55W)BULB (12V,60/55W)
-
409471-12216 BULB (12V5W)BULB (12V5W)
-
535179-48H00 CAPCAP
-
635151-48H00 SCREW, HEADLAMPSCREW, HEADLAMP
-
735155-48H00 NUT, HEADLAMPNUT, HEADLAMP
-
835157-48H00 NUT, HEADLAMPNUT, HEADLAMP
-
935382-48H00 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1035382-48H10 CUSHION, HEADLAMPCUSHION, HEADLAMP
-
1135950-04H50 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1135950-14A11 REFLEX REFLECTOR ASSY, FRONT SIDEREFLEX REFLECTOR ASSY, FRONT SIDE
-
1209119-06119 BOLT (6X18)BOLT (6X18)
-
1308322-0106A WASHERWASHER
