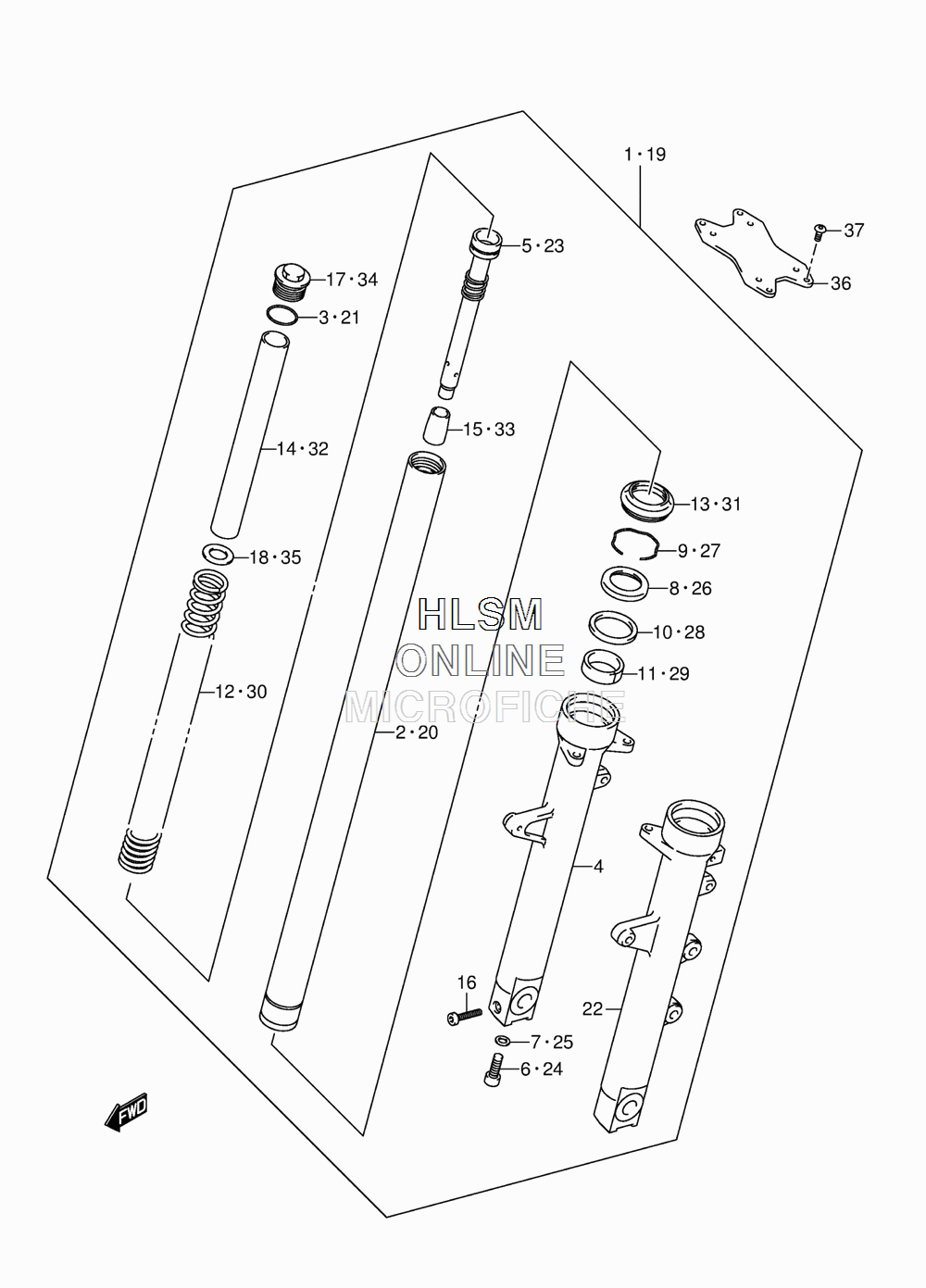

SUSPENSION - FRONT FORK для Suzuki GW250 L4 - 2014 года выпуска
-
№АртикулНазвание
-
151103-48H40 DAMPER ASSY, FRONT FORK RIGHT HANDDAMPER ASSY, FRONT FORK RIGHT HAND
-
251110-48H40 TUBE, INNERTUBE, INNER
-
351117-38260 O RINGO RING
-
451130-48H10 TUBE, OUTERTUBE, OUTER
-
551146-48H00 CYLINDERCYLINDER
-
651147-05H00 BOLTBOLT
-
751148-41310 GASKETGASKET
-
851153-26F00 OIL SEALOIL SEAL
-
951156-40301 RING, STOPPERRING, STOPPER
-
1051158-48H00 WASHERWASHER
-
1151167-01D00 METAL, SLIDEMETAL, SLIDE
-
1251171-48H00 SPRINGSPRING
-
1351173-48H00 SEAL, DUSTSEAL, DUST
-
1451176-48H00 SPACERSPACER
-
1551195-48H00 PIECE, OIL LOCKPIECE, OIL LOCK
-
1651328-48H00 BOLTBOLT
-
1751351-48H00 CAPCAP
-
1851356-48H00 WASHERWASHER
-
1951104-48H40 DAMPER ASSY, FRONT FORK LEFT HANDDAMPER ASSY, FRONT FORK LEFT HAND
-
2051110-48H40 TUBE, INNERTUBE, INNER
-
2151117-38260 O RINGO RING
-
2251140-48H10 TUBE, OUTERTUBE, OUTER
-
2351146-48H00 CYLINDERCYLINDER
-
2451147-05H00 BOLTBOLT
-
2551148-41310 GASKETGASKET
-
2651153-26F00 OIL SEALOIL SEAL
-
2751156-40301 RING, STOPPERRING, STOPPER
-
2851158-48H00 WASHERWASHER
-
2951167-01D00 METAL, SLIDEMETAL, SLIDE
-
3051171-48H00 SPRINGSPRING
-
3151173-48H00 SEAL, DUSTSEAL, DUST
-
3251176-48H00 SPACERSPACER
-
3351195-48H00 PIECE, OIL LOCKPIECE, OIL LOCK
-
3451351-48H00 CAPCAP
-
3551356-48H00 WASHERWASHER
-
3651471-48H00 STABILIZER, FRONTSTABILIZER, FRONT
-
3709139-06030 SCREW (6X16)SCREW (6X16)
