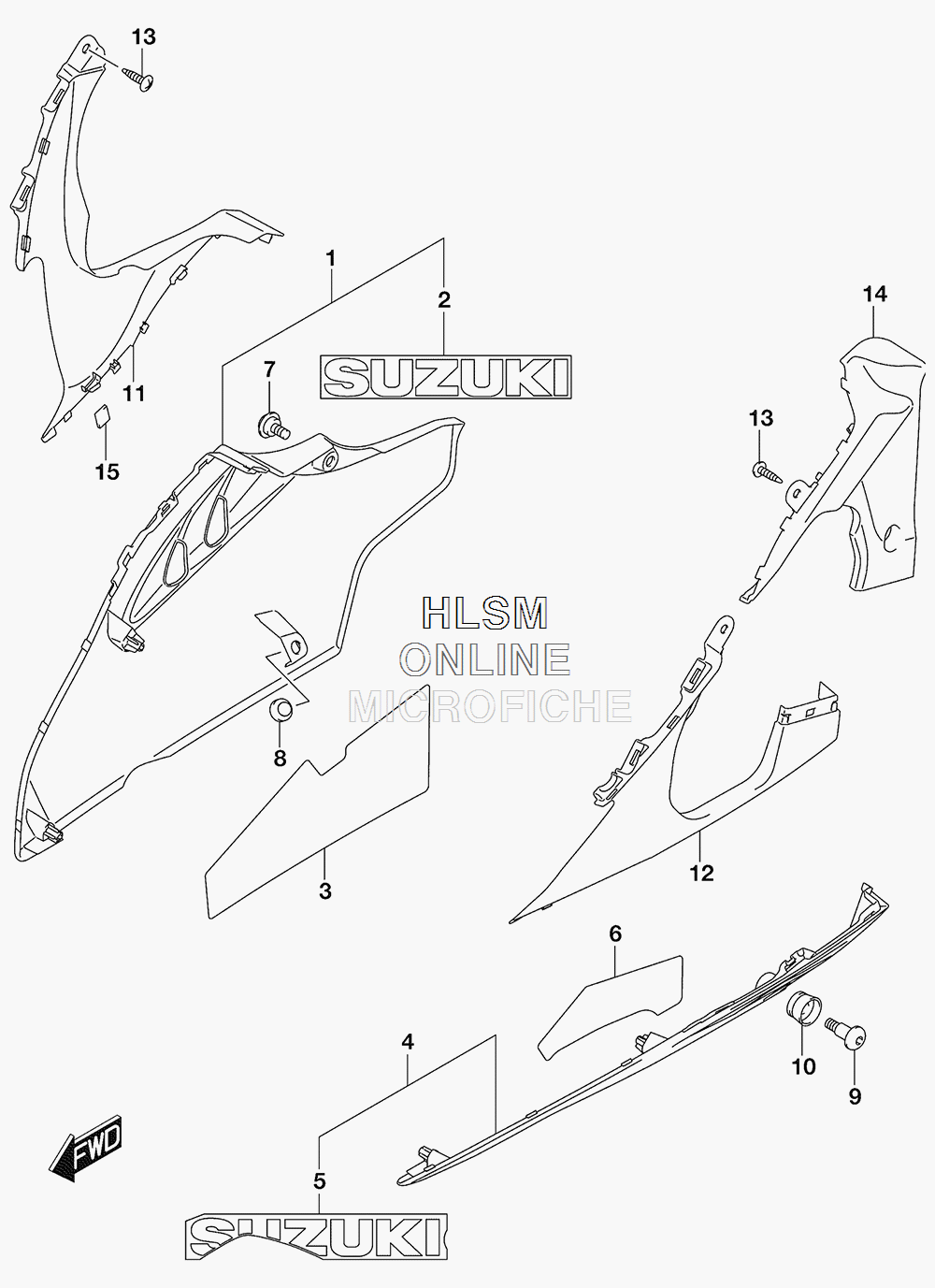

COWLING - UNDER BODY для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
194470-47H00-YSF COWL, UNDER RIGHT HAND (BLUE) (FOR YSF)COWL, UNDER RIGHT HAND (BLUE) (FOR YSF)
-
194470-47H00-YVZ COWL, UNDER RIGHT HAND (RED) (FOR ARB)COWL, UNDER RIGHT HAND (RED) (FOR ARB)
-
194470-47H00-PGZ COWL, UNDER RIGHT HAND (GRAY) (FOR AR4)COWL, UNDER RIGHT HAND (GRAY) (FOR AR4)
-
268181-33C20-YWW ...EMBLEM, ''SUZUKI'' RIGHT HAND (WHITE) (FOR YSF)...EMBLEM, ''SUZUKI'' RIGHT HAND (WHITE) (FOR YSF)
-
268181-33C20-019 ...EMBLEM, ''SUZUKI'' RIGHT HAND (BLACK) (FOR YVZ,PGZ)...EMBLEM, ''SUZUKI'' RIGHT HAND (BLACK) (FOR YVZ,PGZ)
-
394476-47H00 SHIELD, HEAT FRONT RIGHT HANDSHIELD, HEAT FRONT RIGHT HAND
-
494480-47H00-YSF COWL, UNDER LEFT HAND (BLUE) (FOR YSF)COWL, UNDER LEFT HAND (BLUE) (FOR YSF)
-
494480-47H00-YVZ COWL, UNDER LEFT HAND (RED) (FOR ARB)COWL, UNDER LEFT HAND (RED) (FOR ARB)
-
494480-47H00-PGZ COWL, UNDER LEFT HAND (GRAY) (FOR AR4)COWL, UNDER LEFT HAND (GRAY) (FOR AR4)
-
568191-47H00-YWW ...EMBLEM, ''SUZUKI'' LEFT HAND (WHITE) (FOR YSF)...EMBLEM, ''SUZUKI'' LEFT HAND (WHITE) (FOR YSF)
-
568191-47H00-019 ...EMBLEM, ''SUZUKI'' LEFT HAND (BLACK) (FOR YVZ,PGZ)...EMBLEM, ''SUZUKI'' LEFT HAND (BLACK) (FOR YVZ,PGZ)
-
694486-47H00 SHIELD, HEAT LEFT HANDSHIELD, HEAT LEFT HAND
-
709139-05064 SCREW (5X13)SCREW (5X13)
-
809321-10018 CUSHIONCUSHION
-
909139-06190 BOLT (6X20)BOLT (6X20)
-
1094479-15H00 CUSHIONCUSHION
-
1194474-47H00 COWL, SIDE LOWER RIGHT HANDCOWL, SIDE LOWER RIGHT HAND
-
1294484-47H00 COWL, SIDE LOWER LEFT HANDCOWL, SIDE LOWER LEFT HAND
-
1303541-0516A SCREWSCREW
