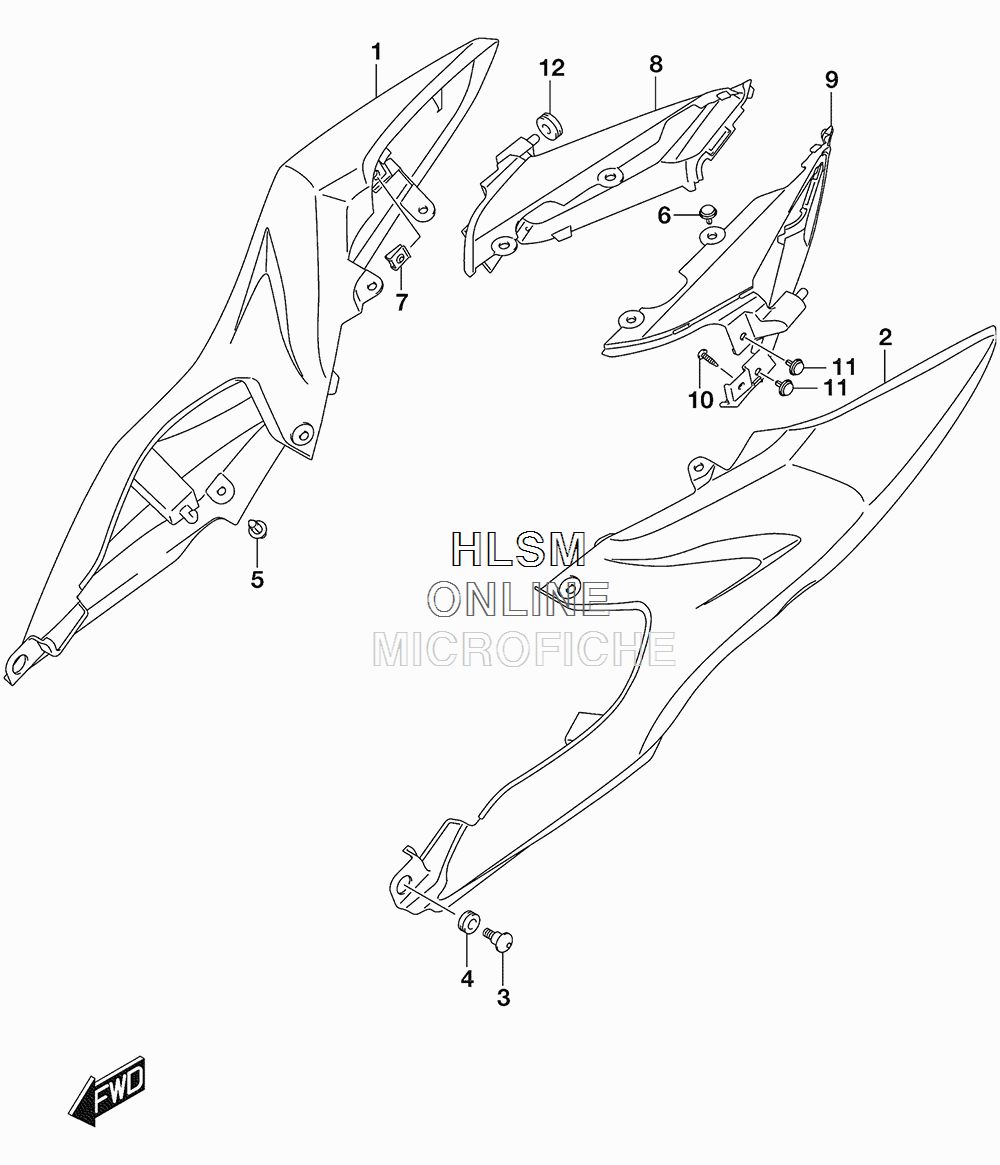

SIDE COVER (ARB-AR4) для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
147111-47H00-YKV COVER, FRAME RIGHT HAND (BLACK) (FOR ARB)COVER, FRAME RIGHT HAND (BLACK) (FOR ARB)
-
147111-47H00-YVB COVER, FRAME RIGHT HAND (BLACK) (FOR AR4)COVER, FRAME RIGHT HAND (BLACK) (FOR AR4)
-
247211-47H00-YKV COVER, FRAME LEFT HAND (BLACK) (FOR ARB)COVER, FRAME LEFT HAND (BLACK) (FOR ARB)
-
247211-47H00-YVB COVER, FRAME LEFT HAND (BLACK) (FOR AR4)COVER, FRAME LEFT HAND (BLACK) (FOR AR4)
-
347133-43H00 SCREW, FRONTSCREW, FRONT
-
409320-08021 CUSHIONCUSHION
-
509409-06314-5PK CLIP (BLACK)CLIP (BLACK)
-
609409-06328 CLIPCLIP
-
709148-05038 NUTNUT
-
847611-47H00-YKV COVER, FRAME REAR RIGHT HAND (BLACK) (FOR AR4)COVER, FRAME REAR RIGHT HAND (BLACK) (FOR AR4)
-
847611-47H00-YVB COVER, FRAME REAR RIGHT HAND (BLACK) (FOR ARB)COVER, FRAME REAR RIGHT HAND (BLACK) (FOR ARB)
-
947621-47H00-YKV COVER, FRAME REAR LEFT HAND (BLACK) (FOR AR4)COVER, FRAME REAR LEFT HAND (BLACK) (FOR AR4)
-
947621-47H00-YVB COVER, FRAME REAR LEFT HAND (BLACK) (FOR ARB)COVER, FRAME REAR LEFT HAND (BLACK) (FOR ARB)
-
1003541-0512A SCREWSCREW
-
1109409-06328 CLIPCLIP
-
1209320-06504 CUSHIONCUSHION
