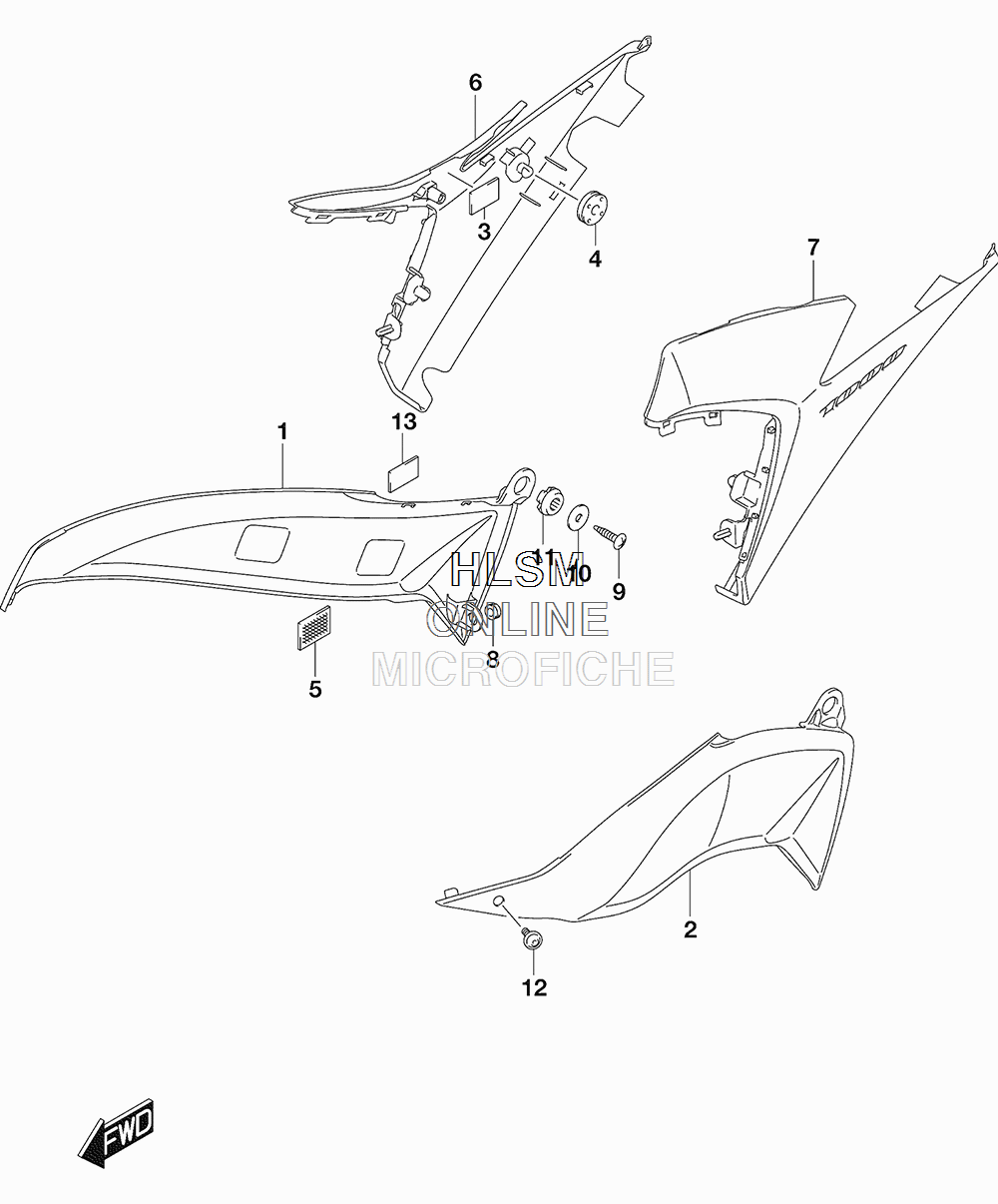

SIDE LOWER COVER для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
147411-47H10 COVER, SIDE FRONT RIGHT HANDCOVER, SIDE FRONT RIGHT HAND
-
247511-47H10 COVER, SIDE FRONT LEFT HANDCOVER, SIDE FRONT LEFT HAND
-
344556-33H00 CUSHIONCUSHION
-
409320-08028 CUSHIONCUSHION
-
544572-13G00 FASTENERFASTENER
-
647421-47HA0 COVER, SIDE REAR RIGHT HANDCOVER, SIDE REAR RIGHT HAND
-
747521-47H00 COVER, SIDE REAR LEFT HANDCOVER, SIDE REAR LEFT HAND
-
809320-06016 CUSHIONCUSHION
-
903541-0516A SCREWSCREW
-
1009160-05501 WASHER (5.5X20X1.2)WASHER (5.5X20X1.2)
-
1109320-09010 CUSHIONCUSHION
-
1209139-05064 SCREW (5X13)SCREW (5X13)
-
1333652-21G10 CUSHIONCUSHION
