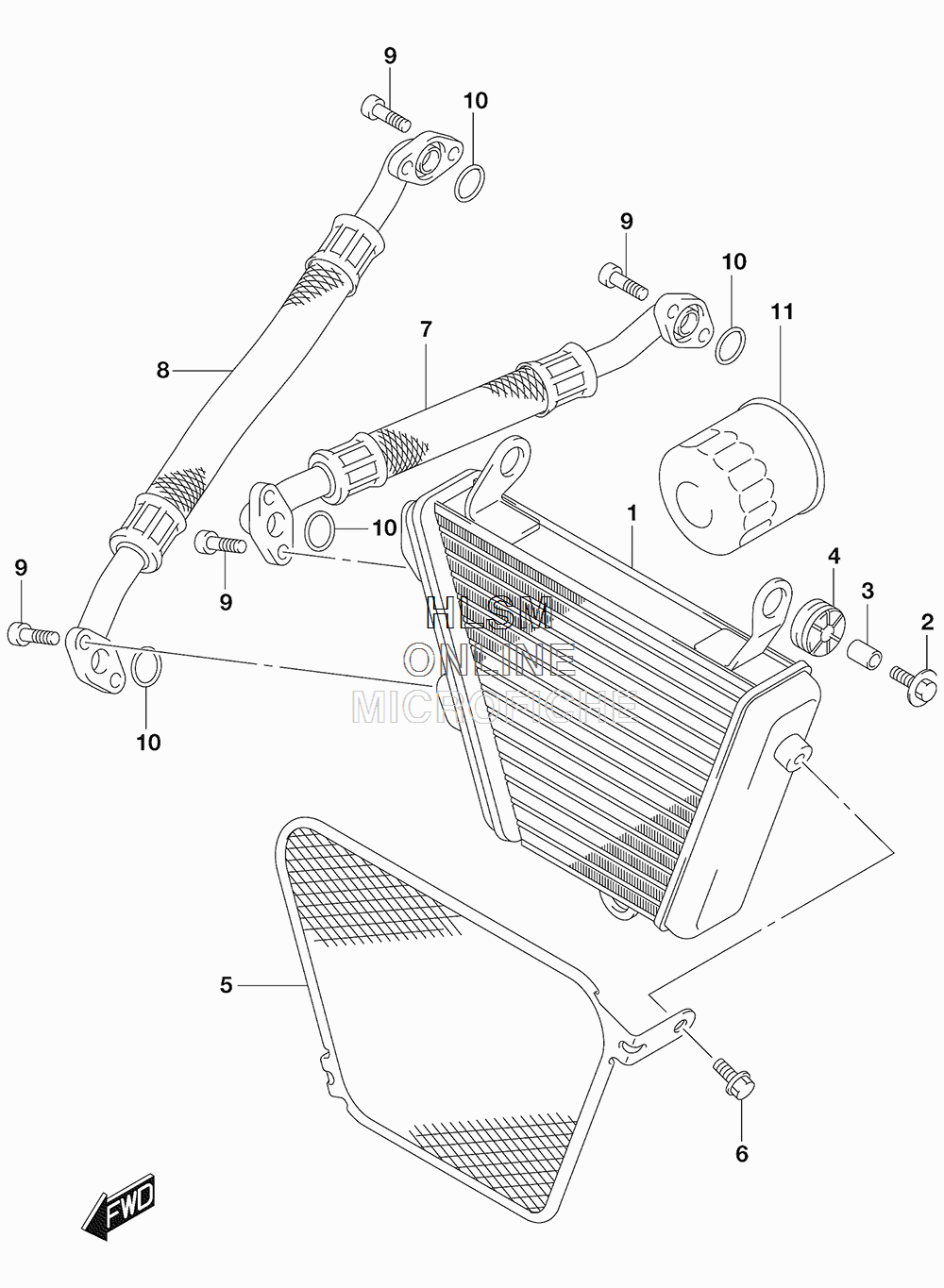

OIL COOLER для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
116600-47H10 COOLER ASSY, OILCOOLER ASSY, OIL
-
209118-06122 BOLT (6X25)BOLT (6X25)
-
309180-06290 SPACER (6.5X10X12)SPACER (6.5X10X12)
-
409320-10051 CUSHIONCUSHION
-
516650-47H10 GUARD, OIL COOLERGUARD, OIL COOLER
-
601550-0610A BOLTBOLT
-
716460-47H00 HOSE, OIL COOLER INLETHOSE, OIL COOLER INLET
-
816470-47H00 HOSE, OIL COOLER OUTLETHOSE, OIL COOLER OUTLET
-
909106-06073 BOLT (6X16)BOLT (6X16)
-
1009280-15015 O RING (D:2.4,ID:16)O RING (D:2.4,ID:16)
-
1116510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
