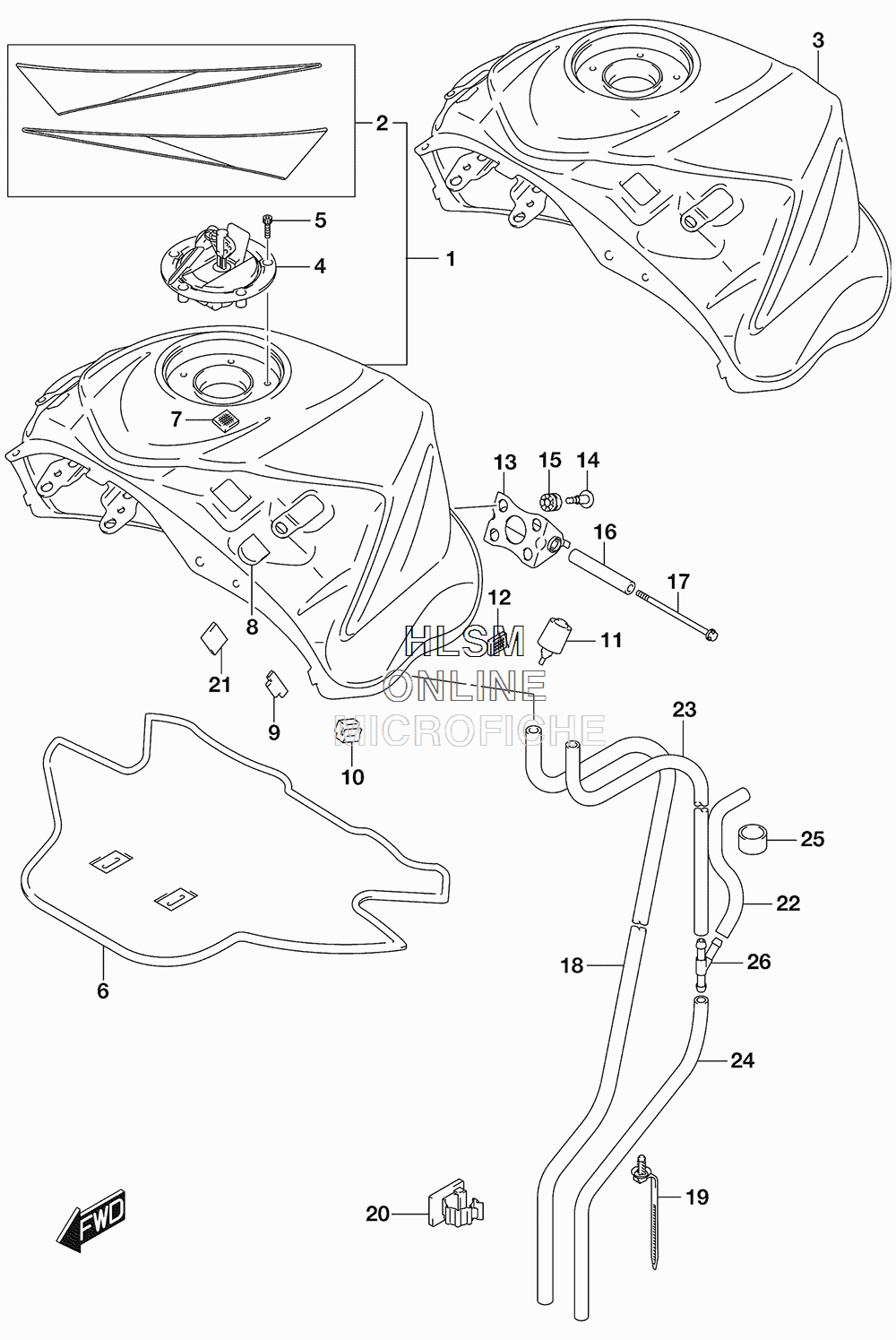

FUEL TANK для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
144100-47H30-YSF TANK ASSY, FUEL (BLUE) (FOR YSF)TANK ASSY, FUEL (BLUE) (FOR YSF)
-
268110-47H10-A3F ...TAPE SET, FUEL TANK (FOR YSF)...TAPE SET, FUEL TANK (FOR YSF)
-
344100-47H01-YVZ TANK ASSY, FUEL (RED) (FOR ARB)TANK ASSY, FUEL (RED) (FOR ARB)
-
344100-47H01-YVB TANK ASSY, FUEL (BLACK) (FOR AR4)TANK ASSY, FUEL (BLACK) (FOR AR4)
-
444200-16850 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509106-05017 BOLT (5X20)BOLT (5X20)
-
644191-47H00 SHIELD, FUEL TANK HEATSHIELD, FUEL TANK HEAT
-
744572-44G00 FASTENER, COVER FRONTFASTENER, COVER FRONT
-
809329-18001 CUSHIONCUSHION
-
944276-21H00 CUSHION, FRONT SIDECUSHION, FRONT SIDE
-
1044541-41G00 CUSHION, SIDECUSHION, SIDE
-
1144542-41G00 CUSHION, LOWERCUSHION, LOWER
-
1244572-13G00 FASTENER, COVER SIDEFASTENER, COVER SIDE
-
1344530-41G01 BRACKET, REARBRACKET, REAR
-
1409139-06191 SCREW (6X22)SCREW (6X22)
-
1509320-08071 CUSHIONCUSHION
-
1644561-18G00 SPACER, JOINTSPACER, JOINT
-
1709106-06119 BOLT (6X110)BOLT (6X110)
-
1844423-47H00 HOSE, DRAINHOSE, DRAIN
-
1909407-17403 CLAMP (L:154)CLAMP (L:154)
-
2009403-14311 CLAMPCLAMP
-
2161544-94500 CUSHIONCUSHION
-
2244424-15H10 HOSE, TANK BREATHER NO.2HOSE, TANK BREATHER NO.2
-
2344424-47H00 HOSE, FUEL TANK BRTHR NO.1HOSE, FUEL TANK BRTHR NO.1
-
2444424-47H10 HOSE, FUEL TANK BRTHR NO.2HOSE, FUEL TANK BRTHR NO.2
-
2509352-12163-600 HOSE (12X16X600) (L:600->10)HOSE (12X16X600) (L:600->10)
-
2609367-06007 3 WAY3 WAY
