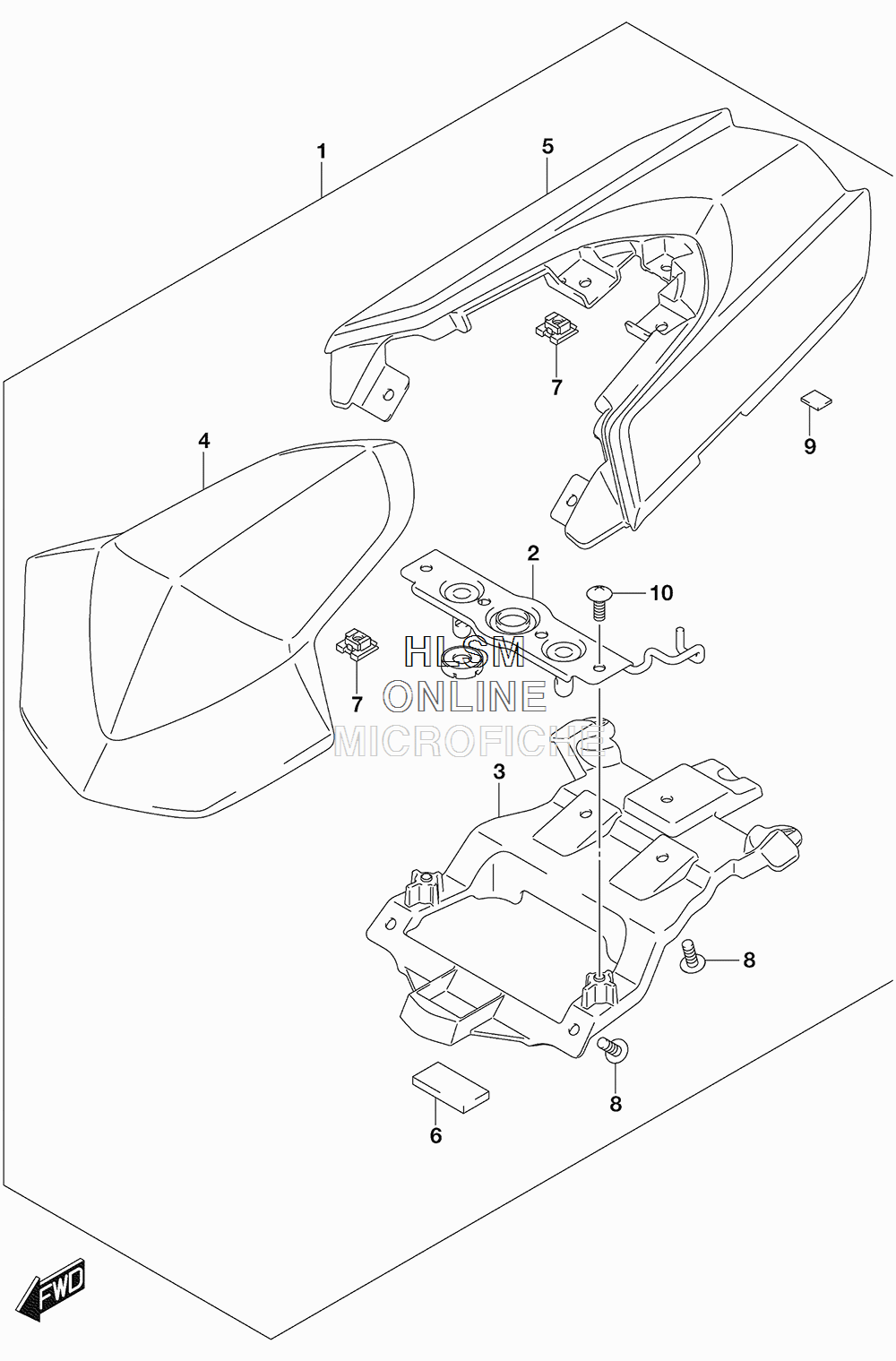

SEAT TAIL BOX (OPTIONAL) для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
145550-47H00-YSF BOX, SEAT TAIL (BLUE)BOX, SEAT TAIL (BLUE)
-
145550-47H00-ARB BOX, SEAT TAIL (RED/BLACK)BOX, SEAT TAIL (RED/BLACK)
-
145550-47H00-AR4 BOX, SEAT TAIL (BLACK/GRAY)BOX, SEAT TAIL (BLACK/GRAY)
-
245290-47H10 ...STRIKER...STRIKER
-
345553-47H00 ...FRAME, SEAT TAIL BOX...FRAME, SEAT TAIL BOX
-
445551-47H00-YSF ...BOX, SEAT TAIL FR (BLUE) (FOR YSF)...BOX, SEAT TAIL FR (BLUE) (FOR YSF)
-
445551-47H00-YKV ...BOX, SEAT TAIL FR (BLACK) (FOR ARB)...BOX, SEAT TAIL FR (BLACK) (FOR ARB)
-
445551-47H00-PGZ ...BOX, SEAT TAIL FR (GRAY) (FOR AR4)...BOX, SEAT TAIL FR (GRAY) (FOR AR4)
-
545552-47H00-YSF ...BOX, SEAT TAIL RR (BLUE) (FOR YSF)...BOX, SEAT TAIL RR (BLUE) (FOR YSF)
-
545552-47H00-YVZ ...BOX, SEAT TAIL RR (RED) (FOR ARB)...BOX, SEAT TAIL RR (RED) (FOR ARB)
-
545552-47H00-YVB ...BOX, SEAT TAIL RR (BLACK) (FOR AR4)...BOX, SEAT TAIL RR (BLACK) (FOR AR4)
-
645149-47H00 ...CUSHION...CUSHION
-
709148-06018 ...NUT...NUT
-
802142-0616A ...SCREW...SCREW
-
945517-01H00 ...CUSHION...CUSHION
-
1003541-0616A ...SCREW...SCREW
