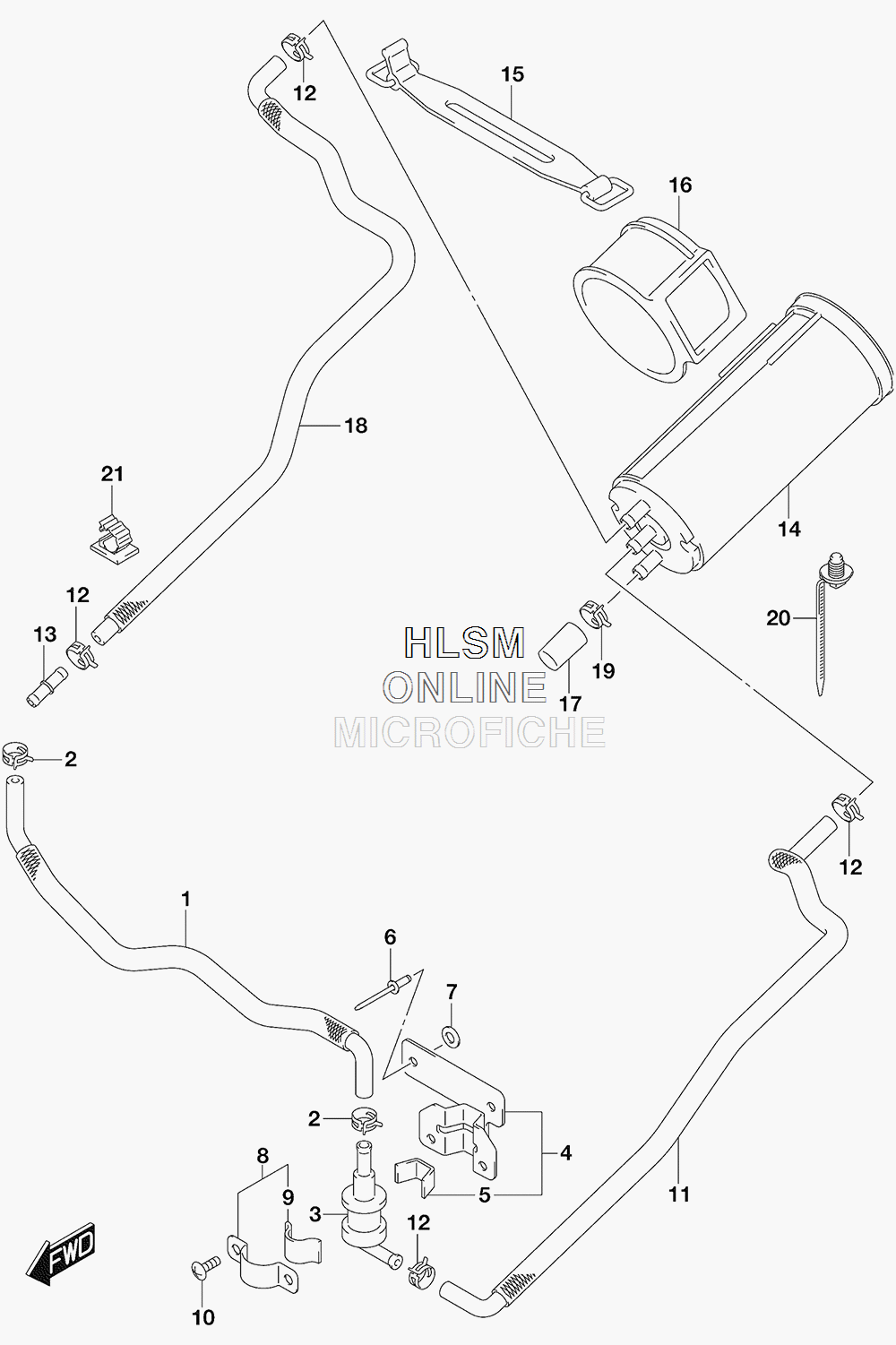

EVAP SYSTEM (CALIFORNIA ONLY) для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
144434-47H00 HOSE, TANK BREATHER VALVEHOSE, TANK BREATHER VALVE
-
209401-11413 CLIPCLIP
-
344240-17C00 VALVE, TANK BREATHERVALVE, TANK BREATHER
-
444890-47H00 PLATE, BRTHR VALVEPLATE, BRTHR VALVE
-
544894-24A00 ...CUSHION...CUSHION
-
609229-04038 RIVETRIVET
-
708322-0104A WASHERWASHER
-
844892-24A00 PLATE, BRTHR VALVE NO.2PLATE, BRTHR VALVE NO.2
-
944894-24A00 ...CUSHION...CUSHION
-
1002142-0408A SCREWSCREW
-
1144435-47H00 HOSE, VALVE AND 2 WAY VALVEHOSE, VALVE AND 2 WAY VALVE
-
1209401-11413 CLIPCLIP
-
1309367-06009 JOINTJOINT
-
1417210-15H00 CANISTERCANISTER
-
1544881-47H00 BAND, CANISTERBAND, CANISTER
-
1644883-47H00 CUSHION, CANISTERCUSHION, CANISTER
-
1709251-07005 CAPCAP
-
1844436-47H00 HOSE, PURGEHOSE, PURGE
-
1909401-12404 CLIPCLIP
-
2009407-17403 CLAMP (L:154)CLAMP (L:154)
-
2109403-14311 CLAMPCLAMP
