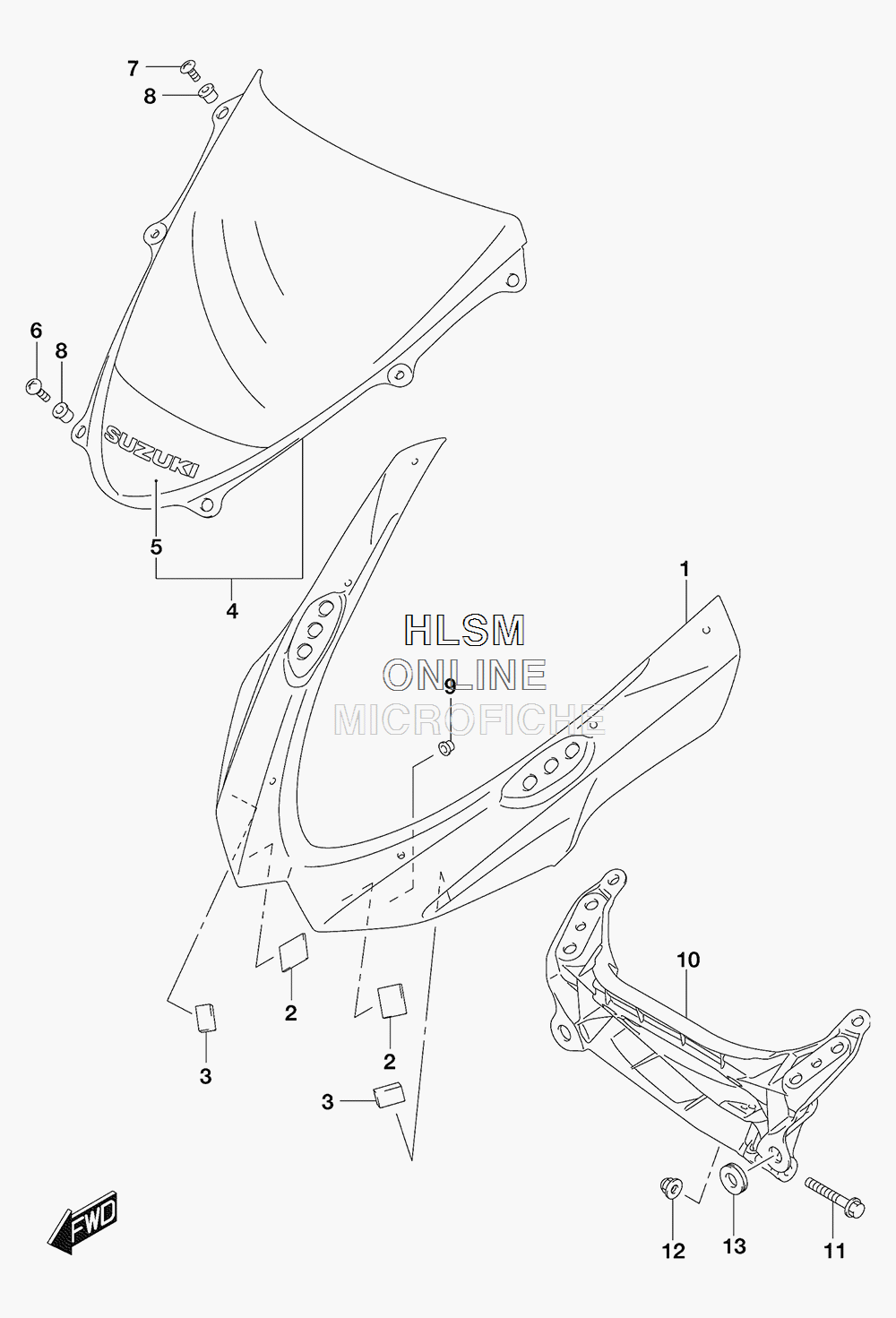

COWLING BODY для Suzuki GSX-R1000 L5 - 2015 года выпуска
-
№АртикулНазвание
-
194411-47H00-YSF BODY, COWLING (BLUE) (FOR YSF)BODY, COWLING (BLUE) (FOR YSF)
-
194411-47H00-YKV BODY, COWLING (BLACK) (FOR ARB)BODY, COWLING (BLACK) (FOR ARB)
-
194411-47H00-PGZ BODY, COWLING (GRAY) (FOR AR4)BODY, COWLING (GRAY) (FOR AR4)
-
244572-02F01 CUSHION, FRONTCUSHION, FRONT
-
344572-37H00 CUSHION, SIDECUSHION, SIDE
-
464310-47H00 WINDSCREENWINDSCREEN
-
568275-47H00 ...TAPE...TAPE
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
809159-05019 NUTNUT
-
909320-05018 CUSHIONCUSHION
-
1094511-47H00 BRACE, COWLINGBRACE, COWLING
-
1101550-0845A BOLTBOLT
-
1208313-2008A NUTNUT
-
1309320-08028 CUSHIONCUSHION
