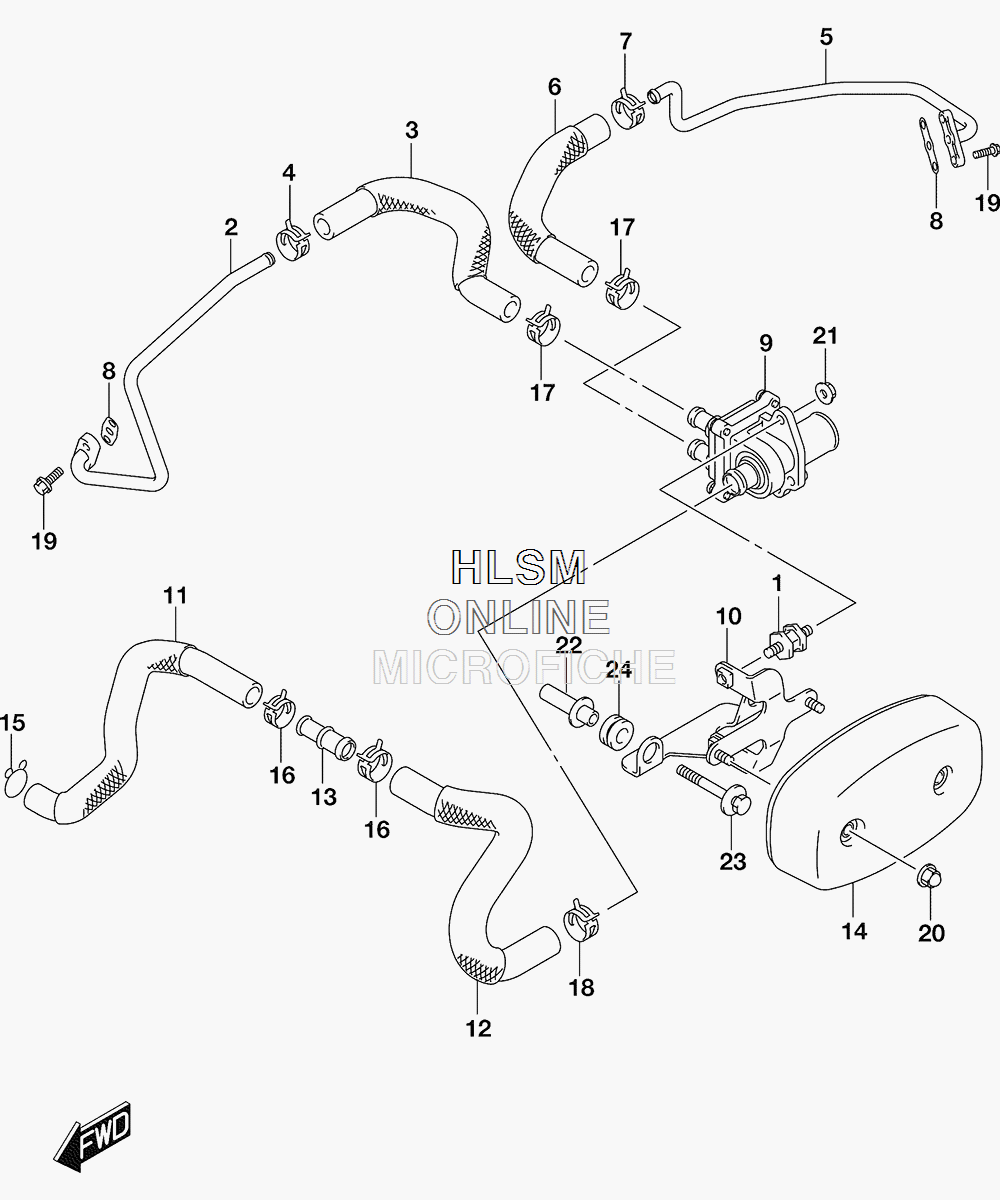

2ND AIR для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
118487-39G00 BOLT, 2ND AIR VALVE CUSHIONBOLT, 2ND AIR VALVE CUSHION
-
218410-41F30 PIPE, 2ND AIR FRPIPE, 2ND AIR FR
-
318461-39G00 HOSE, 2ND AIR VALVE FRHOSE, 2ND AIR VALVE FR
-
409401-15407 CLIPCLIP
-
518420-41F30 PIPE, 2ND AIR RRPIPE, 2ND AIR RR
-
618471-39G00 HOSE, 2ND AIR VALVE RRHOSE, 2ND AIR VALVE RR
-
709401-15407 CLIPCLIP
-
818441-45C01 GASKET, 2ND AIR PIPEGASKET, 2ND AIR PIPE
-
918450-39G01 VALVE ASSY, 2ND AIRVALVE ASSY, 2ND AIR
-
1018610-39G00 BRACKET, 2ND AIR SBRACKET, 2ND AIR S
-
1118711-39G00 HOSE, 2ND AIR CLNRHOSE, 2ND AIR CLNR
-
1218712-39G00 HOSE, 2ND AIR CLNRHOSE, 2ND AIR CLNR
-
1318713-39G00 JOINTJOINT
-
1418780-41F30 COVER, 2ND AIR VALVECOVER, 2ND AIR VALVE
-
1509401-15101 CLIPCLIP
-
1609401-16407 CLIPCLIP
-
1709401-18406 CLIPCLIP
-
1809401-20405 CLIPCLIP
-
1901547-0616A BOLTBOLT
-
2008313-2006A NUTNUT
-
2108316-1006B NUTNUT
-
2218620-41F00 SPACER, 2ND AIR BRACKETSPACER, 2ND AIR BRACKET
-
2309116-06183 BOLT (6X55)BOLT (6X55)
-
2409320-10015 CUSHIONCUSHION
