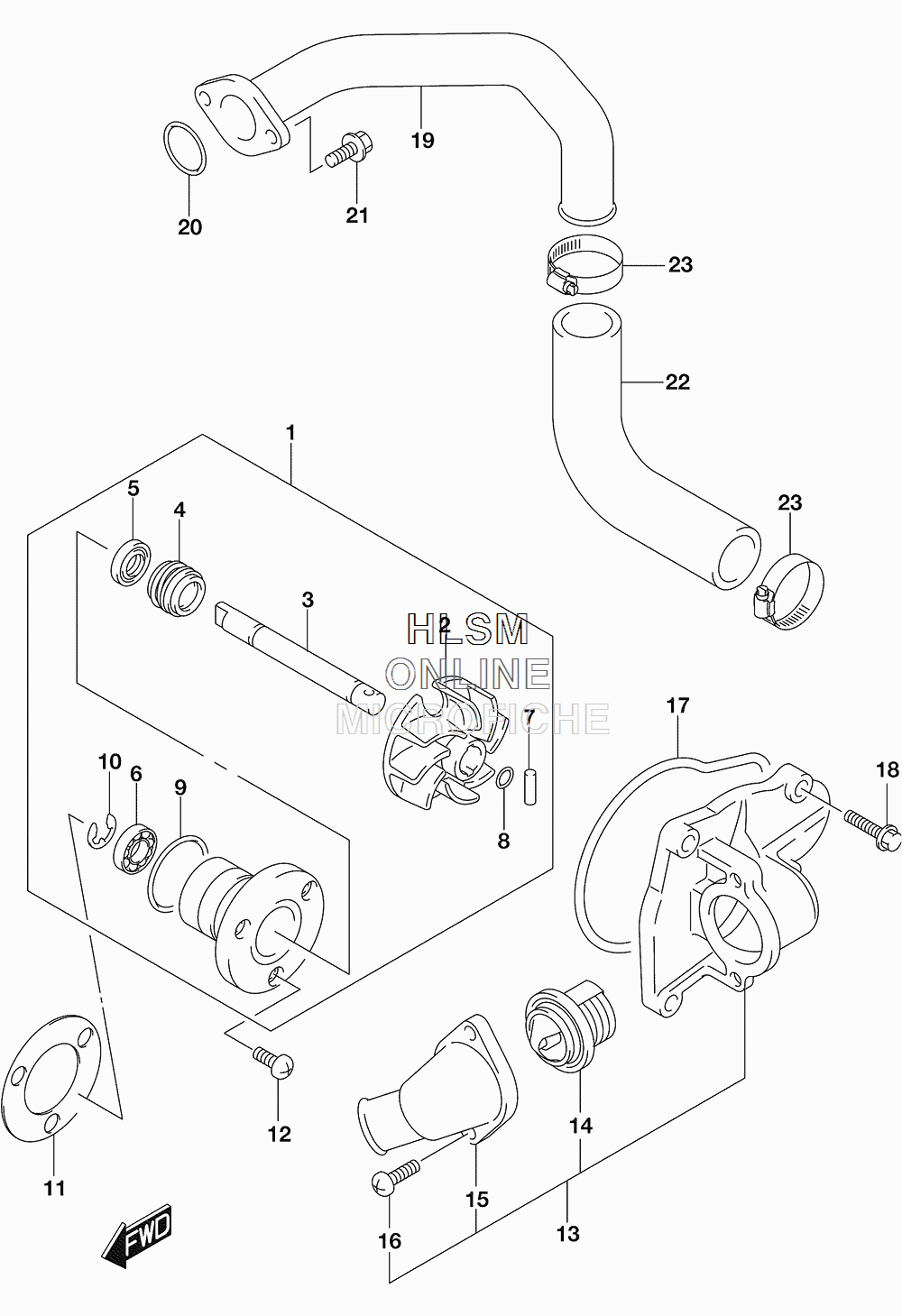

WATER PUMP для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
117400-38A10 PUMP ASSY, WATERPUMP ASSY, WATER
-
217491-38A00 ...IMPELLER...IMPELLER
-
317511-38A00 ...SHAFT...SHAFT
-
417470-02F10 ...SEAL, MECHANICAL...SEAL, MECHANICAL
-
509283-10004 ...OIL SEAL (10X21X5)...OIL SEAL (10X21X5)
-
609262-10004 ...BEARING (10X22X6)...BEARING (10X22X6)
-
717516-38A00 ...PIN...PIN
-
817515-38A00 ...O RING...O RING
-
917417-38A00 ...O RING...O RING
-
1008332-1108A ...E RING...E RING
-
1117431-38A10 GASKET, WATER PUMPGASKET, WATER PUMP
-
1202112-0612B SCREWSCREW
-
1317410-41F30 CAP ASSY, WATER PUMPCAP ASSY, WATER PUMP
-
1417670-33400 ...THERMOSTAT, WATER...THERMOSTAT, WATER
-
1517412-41F00 ...CONNECTOR...CONNECTOR
-
1602112-0616A ...SCREW...SCREW
-
1717435-38A00 O RINGO RING
-
1801547-0620A BOLTBOLT
-
1917890-41F00 PIPE, CYLINDER INPIPE, CYLINDER IN
-
2009280-24007 O RING (D:2.3,ID:24.4)O RING (D:2.3,ID:24.4)
-
2101547-0616A BOLTBOLT
-
2217858-38A10 HOSE, WATER PUMP OUTHOSE, WATER PUMP OUT
-
2309402-32512 CLAMPCLAMP
