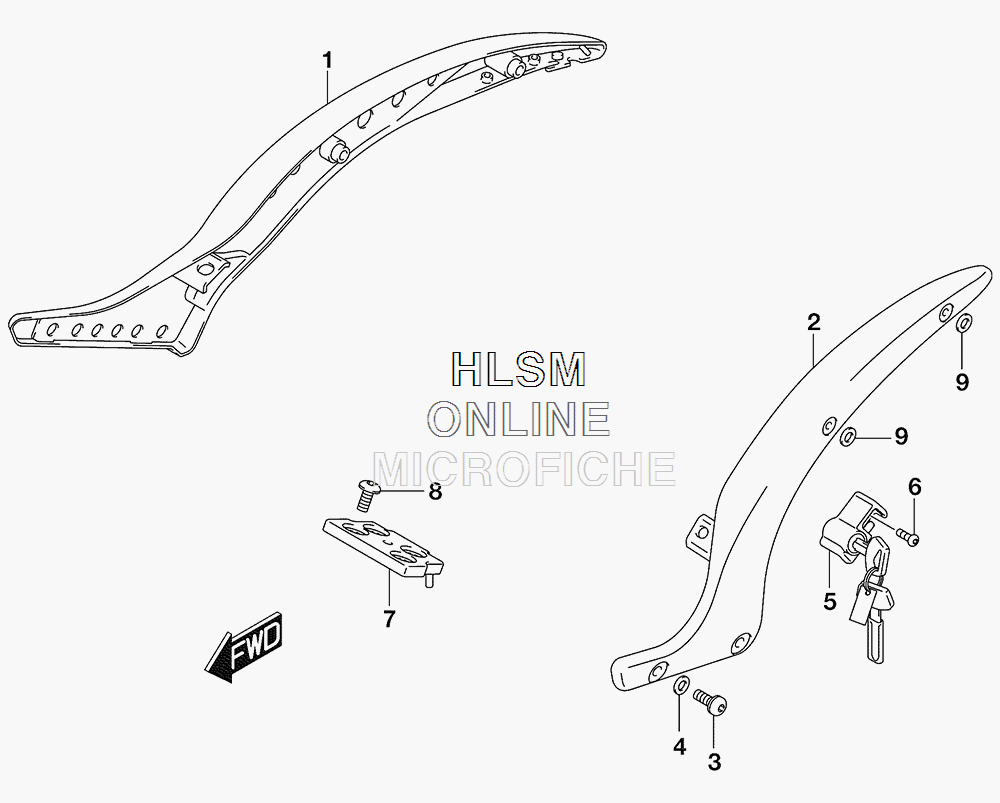

FRAME HANDLE GRIP для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
141610-41F10-019 GRIP, FRAME HANDLE RIGHT HAND (BLACK)GRIP, FRAME HANDLE RIGHT HAND (BLACK)
-
241620-41F10-019 GRIP, FRAME HANDLE LEFT HAND (BLACK)GRIP, FRAME HANDLE LEFT HAND (BLACK)
-
309139-10003 BOLT (10X25)BOLT (10X25)
-
409160-10082 WASHER (10.5X19X2)WASHER (10.5X19X2)
-
595700-41821 LOCK SET, HELMETLOCK SET, HELMET
-
609139-06089 SCREW (6X14)SCREW (6X14)
-
741310-41F50 BRACKET, FUEL TANK REARBRACKET, FUEL TANK REAR
-
809106-08140 BOLT (8X16)BOLT (8X16)
-
909160-08043 WASHER (8.5X18X1)WASHER (8.5X18X1)
