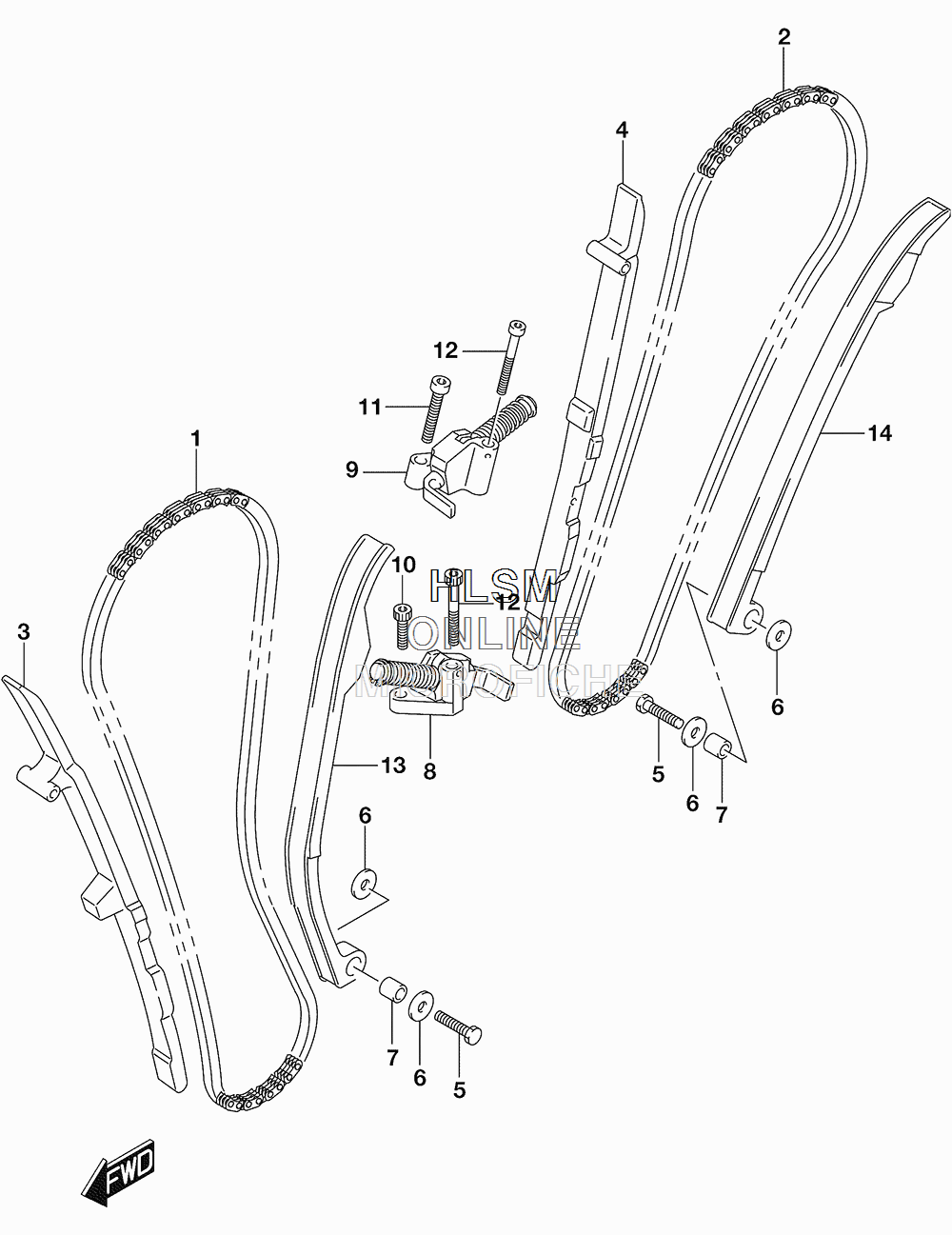

CAM CHAIN ASSY. W/ TENSIONER для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
112760-41F01 CHAIN, CAM SHAFT DRIVE FRONT (DID SCA-0412A SV X 132LE)CHAIN, CAM SHAFT DRIVE FRONT (DID SCA-0412A SV X 132LE)
-
212760-38A21 CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE)CHAIN, CAM SHAFT DRIVE REAR (DID SCA-0412A SV X 128LE)
-
312772-41F00 GUIDE, CAM CHAIN FRONTGUIDE, CAM CHAIN FRONT
-
412771-41F00 GUIDE, CAM CHAIN REARGUIDE, CAM CHAIN REAR
-
509100-06129 BOLT (6X26)BOLT (6X26)
-
608211-06182 WASHERWASHER
-
709180-06148 SPACER (6X11X11)SPACER (6X11X11)
-
812831-38A01 ADJUSTER ASSY, TENSIONER FRONTADJUSTER ASSY, TENSIONER FRONT
-
912832-41F01 ADJUSTER ASSY, TENSIONER REARADJUSTER ASSY, TENSIONER REAR
-
1007130-0620A BOLTBOLT
-
1107130-0630A BOLTBOLT
-
1207130-0645A BOLTBOLT
-
1312811-41F00 TENSIONER, CAM CHAIN FRONTTENSIONER, CAM CHAIN FRONT
-
1412816-38A01 TENSIONER, CAM CHAIN REARTENSIONER, CAM CHAIN REAR
