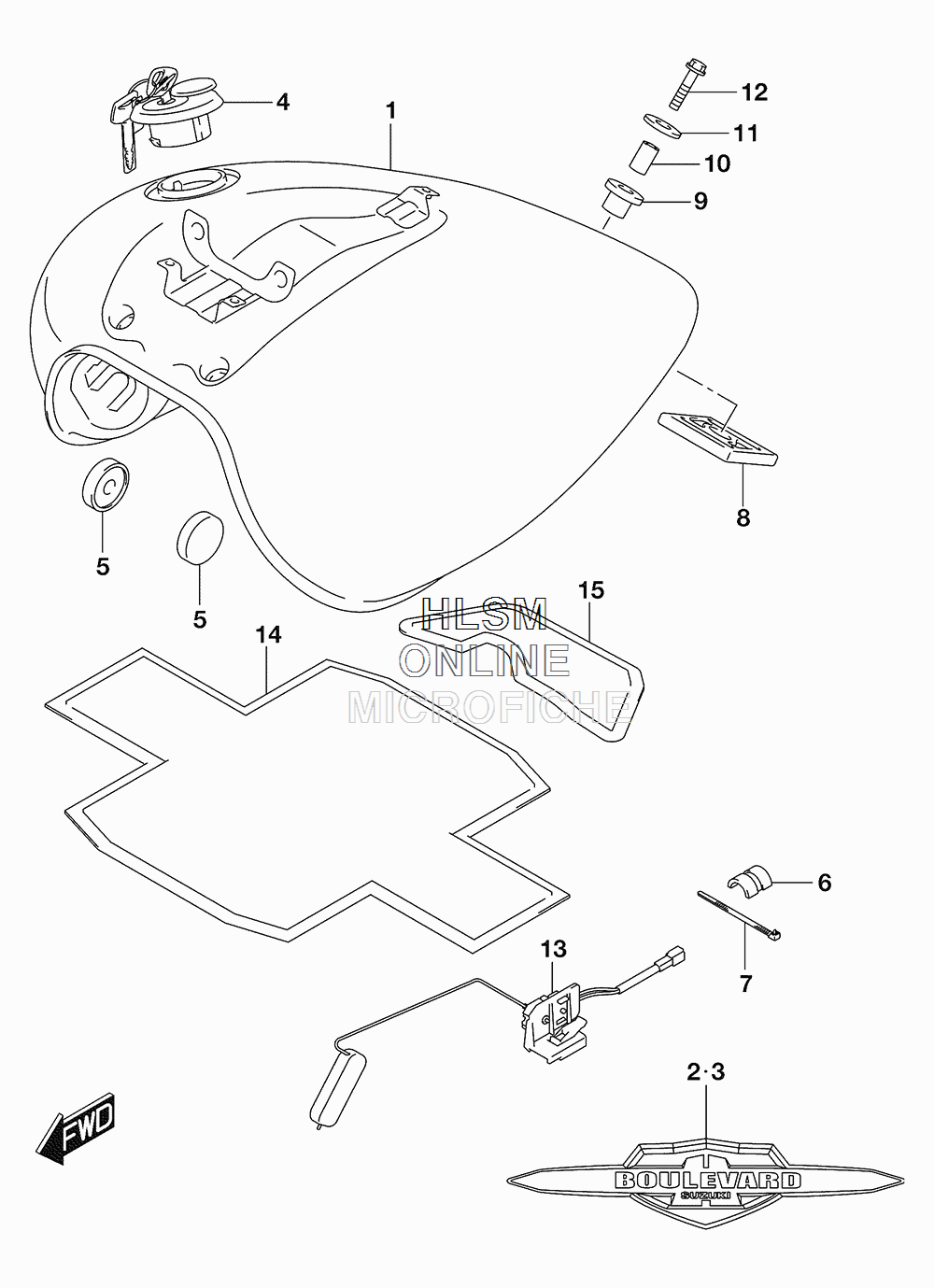

FUEL TANK для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
144100-43H00-YVB TANK ASSY, FUEL (BLACK)TANK ASSY, FUEL (BLACK)
-
268111-41F31 EMBLEM, RIGHT HANDEMBLEM, RIGHT HAND
-
368121-41F31 EMBLEM, LEFT HANDEMBLEM, LEFT HAND
-
444200-41830 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
509329-10007 CUSHIONCUSHION
-
644541-14F10 CUSHION, SIDECUSHION, SIDE
-
709407-25402 CLAMP (L:250)CLAMP (L:250)
-
844542-41F00 CUSHION, REAR LOWERCUSHION, REAR LOWER
-
944541-41F01 CUSHION, REAR UPPERCUSHION, REAR UPPER
-
1009180-08057 SPACER (8.2X12.5X23.5)SPACER (8.2X12.5X23.5)
-
1109160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
1201550-0835A BOLTBOLT
-
1334810-41F11 GUAGE ASSY, FUEL TANKGUAGE ASSY, FUEL TANK
-
1444192-39G00 SHIELD, HEAT NO.1SHIELD, HEAT NO.1
-
1544191-43H00 SHIELD, HEAT NO.2SHIELD, HEAT NO.2
