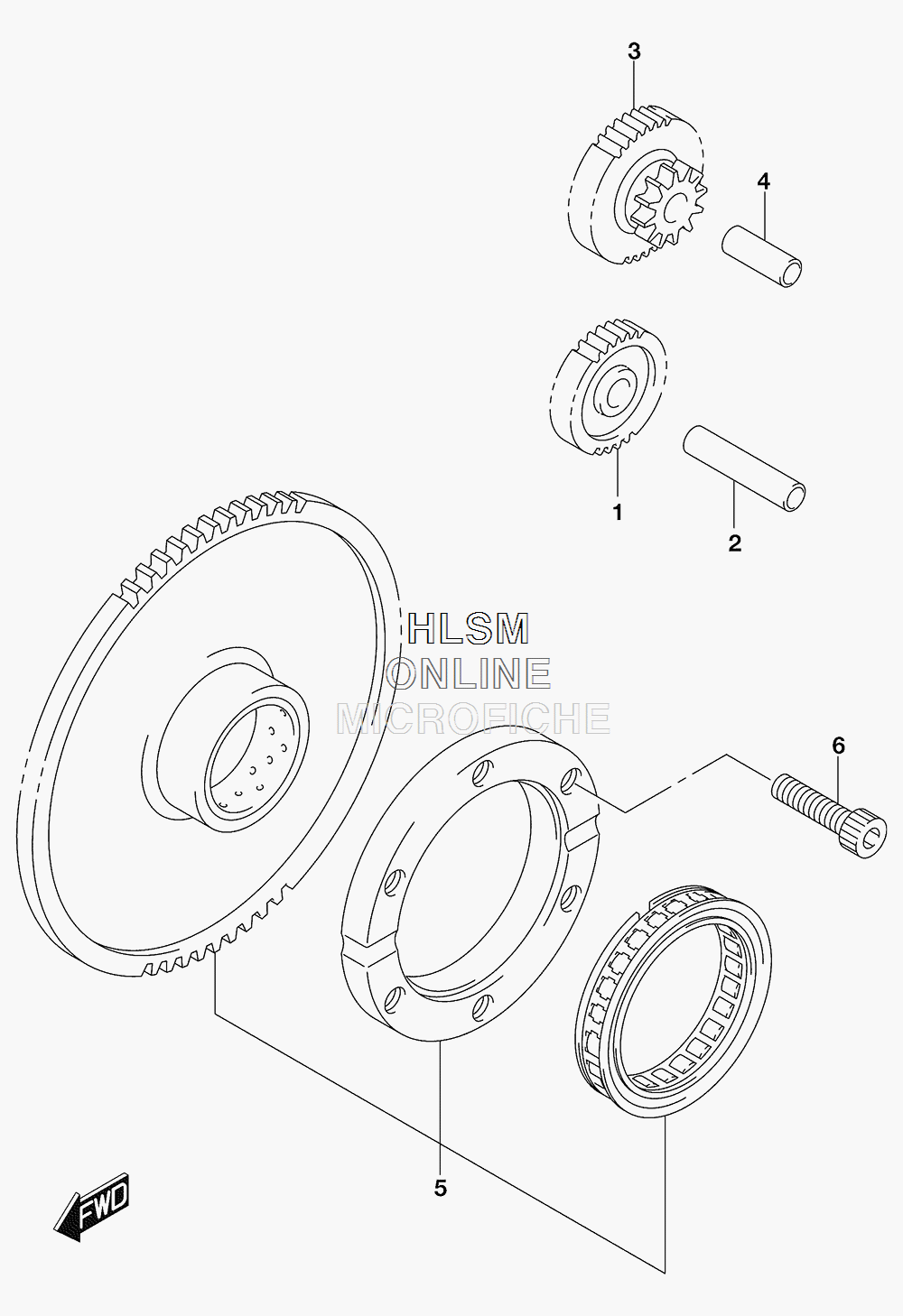

STARTER CLUTCH для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
112611-38A01 GEAR, STARTER IDLE NO.1 (NT:12/41)GEAR, STARTER IDLE NO.1 (NT:12/41)
-
209202-10008 PIN (10X43)PIN (10X43)
-
312611-38A11 GEAR, STARTER IDLE NO.2 (NT:32)GEAR, STARTER IDLE NO.2 (NT:32)
-
409202-10006 PINPIN
-
512600-41851 CLUTCH SET, STARTER (NT:79)CLUTCH SET, STARTER (NT:79)
-
609106-08105 BOLT (8X30)BOLT (8X30)
