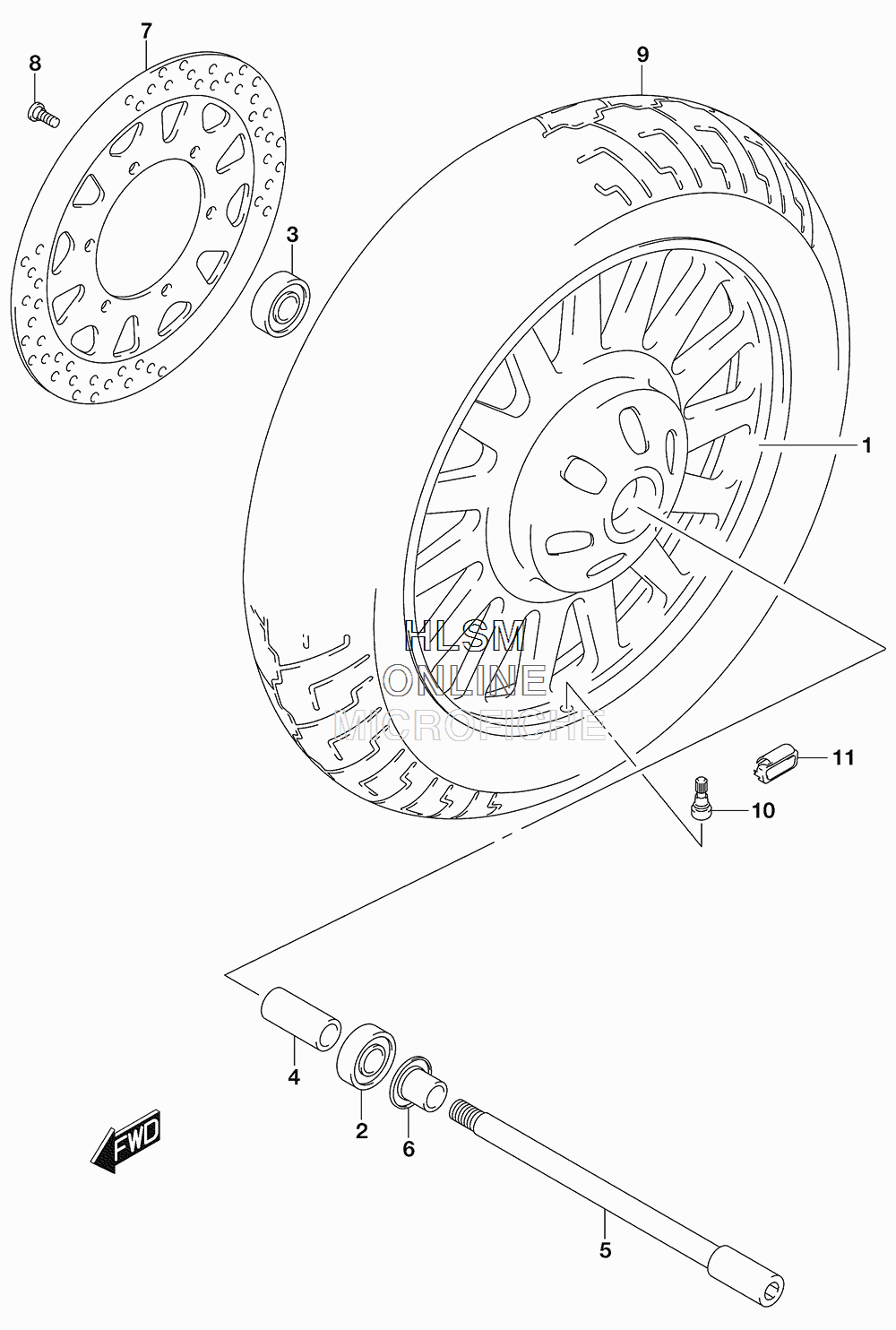

WHEEL - FRONT для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
154111-41F10-019 WHEEL, FRONT (16M/CXMT3.00) (BLACK)WHEEL, FRONT (16M/CXMT3.00) (BLACK)
-
208133-62037 BEARING (LEFT HAND)BEARING (LEFT HAND)
-
308143-62037 BEARING (RIGHT HAND)BEARING (RIGHT HAND)
-
409180-17080 SPACER (17.5X25X102)SPACER (17.5X25X102)
-
554711-41F00 AXLE, FRONTAXLE, FRONT
-
654740-32C00 SPACER, AXLE LEFT HANDSPACER, AXLE LEFT HAND
-
759211-41F10 DISC, FRONT BRAKE RIGHT HANDDISC, FRONT BRAKE RIGHT HAND
-
809106-08160 BOLT (8X21)BOLT (8X21)
-
955110-41F20 TIRE, FRONT (130/90-16M/C 67H)TIRE, FRONT (130/90-16M/C 67H)
-
1043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1143222-73H20 BALANCER, WHEEL NO.1 (10G)BALANCER, WHEEL NO.1 (10G)
-
1143224-73H20 BALANCER, WHEEL NO.2 (20G)BALANCER, WHEEL NO.2 (20G)
-
1143226-73H20 BALANCER, WHEEL NO.3 (30G)BALANCER, WHEEL NO.3 (30G)
