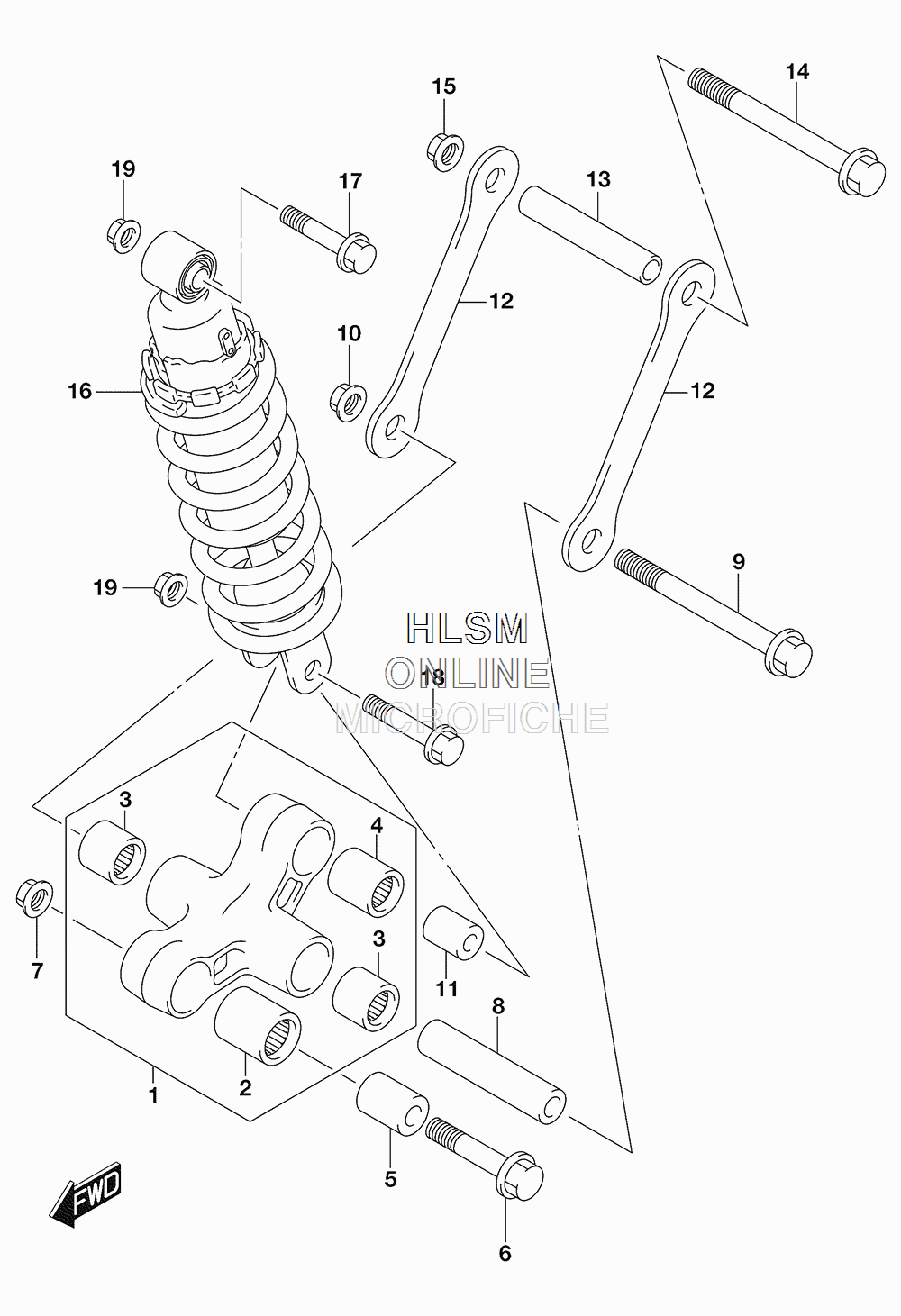

SUSPENSION - CUSHION LEVER W/ SHOCK для Suzuki VL800B L5 BOULEVARD C50 B.O.S.S. - 2015 года выпуска
-
№АртикулНазвание
-
162600-33890 LEVER SET, REAR CUSHIONLEVER SET, REAR CUSHION
-
209263-20073 ...BEARING (20X27X30)...BEARING (20X27X30)
-
309263-17039 ...BEARING (17X24X20)...BEARING (17X24X20)
-
409263-17034 ...BEARING (17X24X26)...BEARING (17X24X26)
-
562684-12C00 SPACER, FRONT (12X20X32)SPACER, FRONT (12X20X32)
-
662668-42A02 BOLT, FRONT (12X62)BOLT, FRONT (12X62)
-
708319-3112A NUTNUT
-
862626-33D00 SPACER, CENTER (12X17X94)SPACER, CENTER (12X17X94)
-
962621-33D00 BOLT, CENTER (12X124)BOLT, CENTER (12X124)
-
1008319-3112A NUTNUT
-
1162684-40A10 SPACER, REAR (10X17X30)SPACER, REAR (10X17X30)
-
1262641-41F00 ROD, REAR CUSHION LEVERROD, REAR CUSHION LEVER
-
1362626-33D00 SPACER, ROD (12X17X94)SPACER, ROD (12X17X94)
-
1462621-33D00 BOLT, ROD (12X124)BOLT, ROD (12X124)
-
1508319-3112A NUTNUT
-
1662100-41FB0 ABSORBER ASSY, REAR SHOCKABSORBER ASSY, REAR SHOCK
-
1709103-10064 BOLT (10X50)BOLT (10X50)
-
1809103-10101 BOLT (10X54)BOLT (10X54)
-
1908319-3110A NUTNUT
