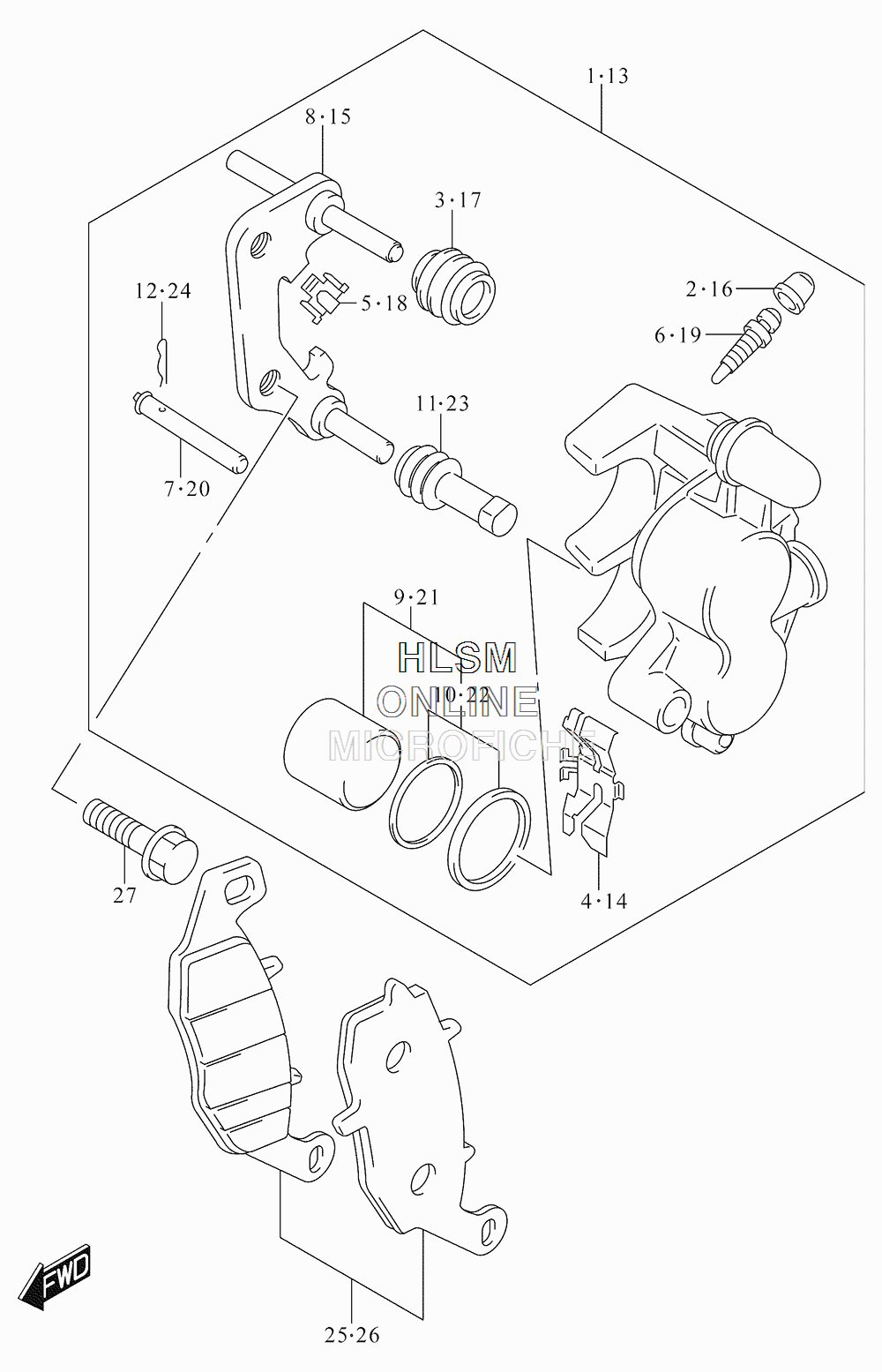

BRAKE - FRONT CALIPER для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
159100-33DH1-999 CALIPER ASSY, FRONT RIGHT HANDCALIPER ASSY, FRONT RIGHT HAND
-
255156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
359112-44B00 ...BOOT, AXLE...BOOT, AXLE
-
459115-33D00 ...SPRING, PAD RIGHT HAND...SPRING, PAD RIGHT HAND
-
559116-33D00 ...GUIDE, PAD...GUIDE, PAD
-
659121-18410 ...BLEEDER...BLEEDER
-
759141-44B01 ...PIN, PAD...PIN, PAD
-
859150-33D01 ...CARRIER, CALIPER RIGHT HAND...CARRIER, CALIPER RIGHT HAND
-
959301-20820 ...PISTON SET...PISTON SET
-
1059300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
1159313-36500 ...INSULATOR, AXLE...INSULATOR, AXLE
-
1269142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
1359300-33DH1-999 CALIPER ASSY, FRONT LEFT HANDCALIPER ASSY, FRONT LEFT HAND
-
1459315-33D00 ...SPRING, PAD LEFT HAND...SPRING, PAD LEFT HAND
-
1559350-33D01 ...CARRIER, CALIPER LEFT HAND...CARRIER, CALIPER LEFT HAND
-
1655156-66310 ...CAP, BLEEDER PLUG...CAP, BLEEDER PLUG
-
1759112-44B00 ...BOOT, AXLE...BOOT, AXLE
-
1859116-33D00 ...GUIDE, PAD...GUIDE, PAD
-
1959121-18410 ...BLEEDER...BLEEDER
-
2059141-44B01 ...PIN, PAD...PIN, PAD
-
2159301-20820 ...PISTON SET...PISTON SET
-
2259300-33841 ......SEAL SET, PISTON......SEAL SET, PISTON
-
2359313-36500 ...INSULATOR, AXLE...INSULATOR, AXLE
-
2469142-45000 ...CLIP, PAD PIN...CLIP, PAD PIN
-
2559101-33880 PAD SET RIGHT HANDPAD SET RIGHT HAND
-
2659302-33890 PAD SET LEFT HANDPAD SET LEFT HAND
-
2709103-10379 BOLT (10X30)BOLT (10X30)
