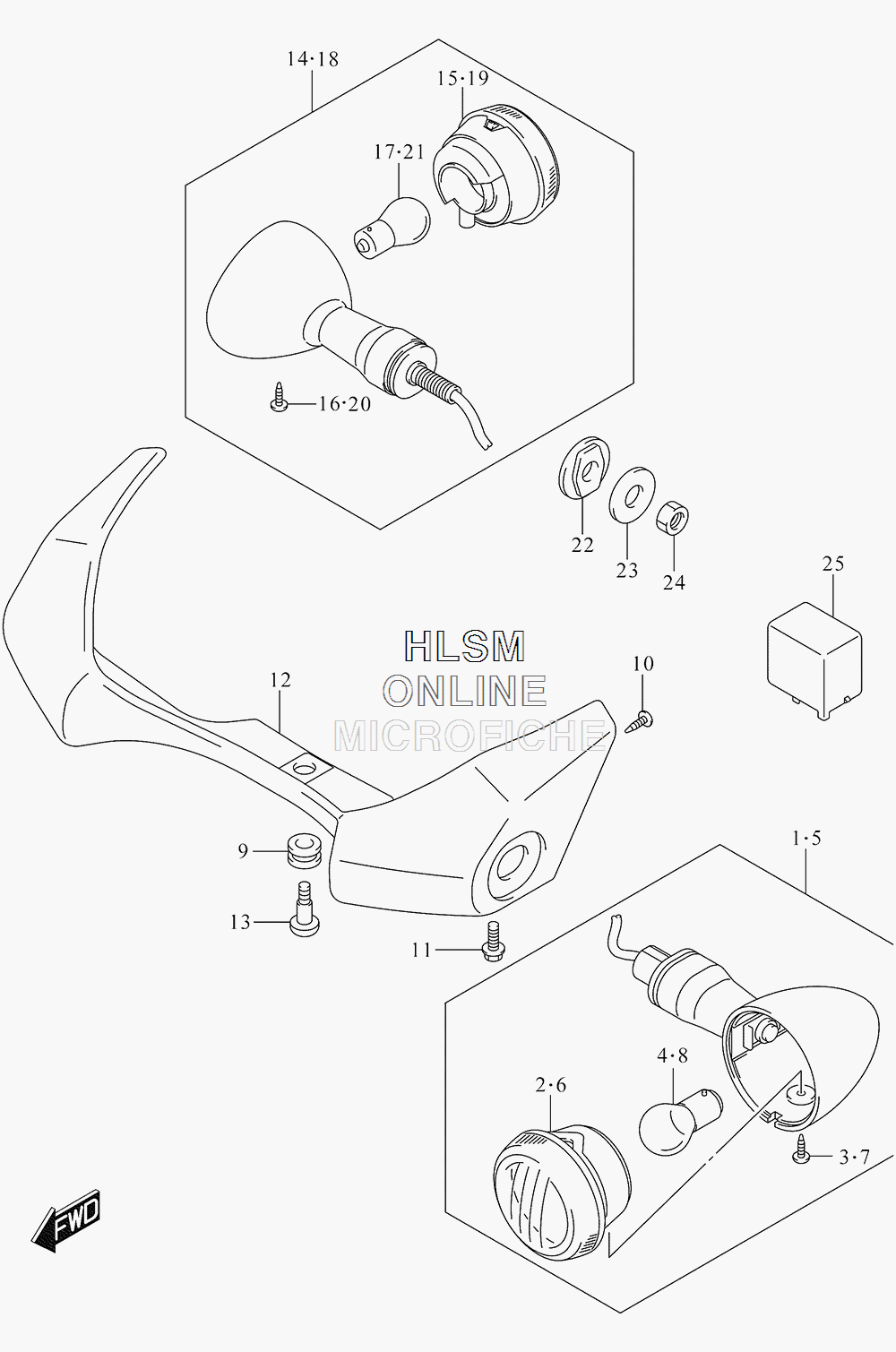

TURN SIGNAL ASSY. для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
135601-38AF0 LAMP ASSY, FRONT TURNSIGNAL RIGHT HANDLAMP ASSY, FRONT TURNSIGNAL RIGHT HAND
-
235610-38AA0 ...LENS...LENS
-
335623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
409471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
535602-38AF0 LAMP ASSY, FRONT TURNSIGNAL LEFT HANDLAMP ASSY, FRONT TURNSIGNAL LEFT HAND
-
635630-38AA0 ...LENS...LENS
-
735623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
809471-12083 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
909320-09016 CUSHIONCUSHION
-
1003541-0512A SCREWSCREW
-
1101547-0612A BOLTBOLT
-
1235641-40H00 STAY, FRONT TURNSIGNALSTAY, FRONT TURNSIGNAL
-
1309139-06146 SCREW (6X16)SCREW (6X16)
-
1435603-38AG0 LAMP ASSY, REAR TURNSIGNAL RIGHT HANDLAMP ASSY, REAR TURNSIGNAL RIGHT HAND
-
1535630-38AE1 ...LENS...LENS
-
1635623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
1709471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
1835604-38AG0 LAMP ASSY, REAR TURNSIGNAL LEFT HANDLAMP ASSY, REAR TURNSIGNAL LEFT HAND
-
1935610-38AE1 ...LENS...LENS
-
2035623-38AA0 ...SCREW (4X10)...SCREW (4X10)
-
2109471-12045 ...BULB (12V,21W)...BULB (12V,21W)
-
2235695-17C00 SPACER, REAR TURNSIGNALSPACER, REAR TURNSIGNAL
-
2309160-10501 WASHER (10.5X30X2.3)WASHER (10.5X30X2.3)
-
2408310-0010A NUTNUT
-
2538610-03F00 RELAY ASSY, TURNSIGNALRELAY ASSY, TURNSIGNAL
