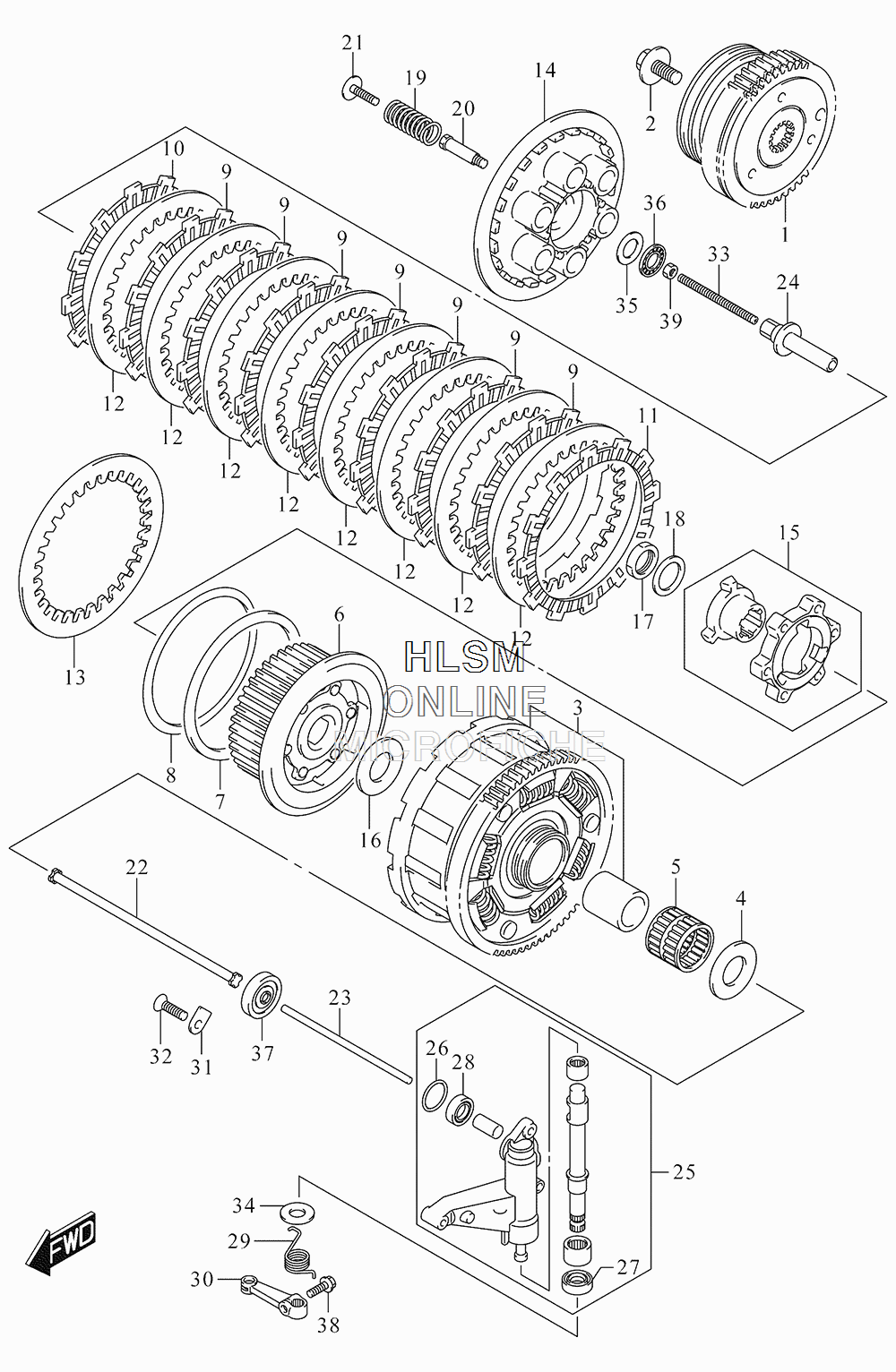

CLUTCH для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
121100-40830 GEAR, PRIMARY DRIVE SET (NT:54)GEAR, PRIMARY DRIVE SET (NT:54)
-
209103-14010 BOLT (14X28)BOLT (14X28)
-
321200-40890 GEAR, PRIMARY DRIVEN (NT:76)GEAR, PRIMARY DRIVEN (NT:76)
-
409160-25074 WASHER (25X52X2.5)WASHER (25X52X2.5)
-
509263-35013 BEARING (35X40X39.8)BEARING (35X40X39.8)
-
621410-40H00 HUB, SLEEVEHUB, SLEEVE
-
721471-24F00 SEAT, WAVE WASHERSEAT, WAVE WASHER
-
821472-24F00 WASHER, PLATE WAVEWASHER, PLATE WAVE
-
921441-24F40 PLATE, CLUTCH DRIVE (T:3.8)PLATE, CLUTCH DRIVE (T:3.8)
-
1021441-24F10 PLATE, CLUTCH DRIVE (T:3.8)PLATE, CLUTCH DRIVE (T:3.8)
-
1121442-24F00 PLATE, CLUTCH DRIVE (T:3.8)PLATE, CLUTCH DRIVE (T:3.8)
-
1221451-24F00 PLATE, CLUTCH DRIVEN (T:2.0)PLATE, CLUTCH DRIVEN (T:2.0)
-
1321451-24F10 PLATE, CLUTCH DRIVEN (T:2.3)PLATE, CLUTCH DRIVEN (T:2.3)
-
1421462-16G00 DISC, CLUTCH PRESSUREDISC, CLUTCH PRESSURE
-
1521610-02F20 CAM SET, CLUTCHCAM SET, CLUTCH
-
1609160-25079 WASHER (25X50X3.5)WASHER (25X50X3.5)
-
1709159-24010 NUTNUT
-
1809164-24008 WASHERWASHER
-
1921413-40H00 SPRING, CLUTCHSPRING, CLUTCH
-
2021481-24F32 BOLT, CLUTCH SPRING SPRTBOLT, CLUTCH SPRING SPRT
-
2121482-24F30 BOLT, CLUTCH SPRINGBOLT, CLUTCH SPRING
-
2223110-24F00 ROD, CLUTCHROD, CLUTCH
-
2323111-40H00 ROD, CLUTCH PUSH LEFT HANDROD, CLUTCH PUSH LEFT HAND
-
2423121-41G00 PIECE, CLUTCH PUSHPIECE, CLUTCH PUSH
-
2523120-41810 CAMSHAFT SET, CLUTCH RELEASECAMSHAFT SET, CLUTCH RELEASE
-
2609280-21008 ...O RING (D:2.5,ID:21)...O RING (D:2.5,ID:21)
-
2709282-10012 ...OIL SEAL (10X20X6)...OIL SEAL (10X20X6)
-
2809285-10004 ...OIL SEAL (10X17X5)...OIL SEAL (10X17X5)
-
2923125-48G00 SPRING, CLUTCH RELEASE RETURNSPRING, CLUTCH RELEASE RETURN
-
3023271-48G10 ARM, CLUTCH RELEASEARM, CLUTCH RELEASE
-
3124741-20A00 RETAINER, CLUTCH PUSH RODRETAINER, CLUTCH PUSH ROD
-
3209126-06011 SCREW (6X12)SCREW (6X12)
-
3309134-06015 SCREW (6X73)SCREW (6X73)
-
3409160-10020 WASHER (10.5X24X1)WASHER (10.5X24X1)
-
3509160-15045 WASHER (15.5X28X1)WASHER (15.5X28X1)
-
3609263-15003 BEARING (15X28X2)BEARING (15X28X2)
-
3709283-06005 OIL SEAL (6X18X5)OIL SEAL (6X18X5)
-
3801547-0620A BOLTBOLT
-
3908310-0006A NUTNUT
