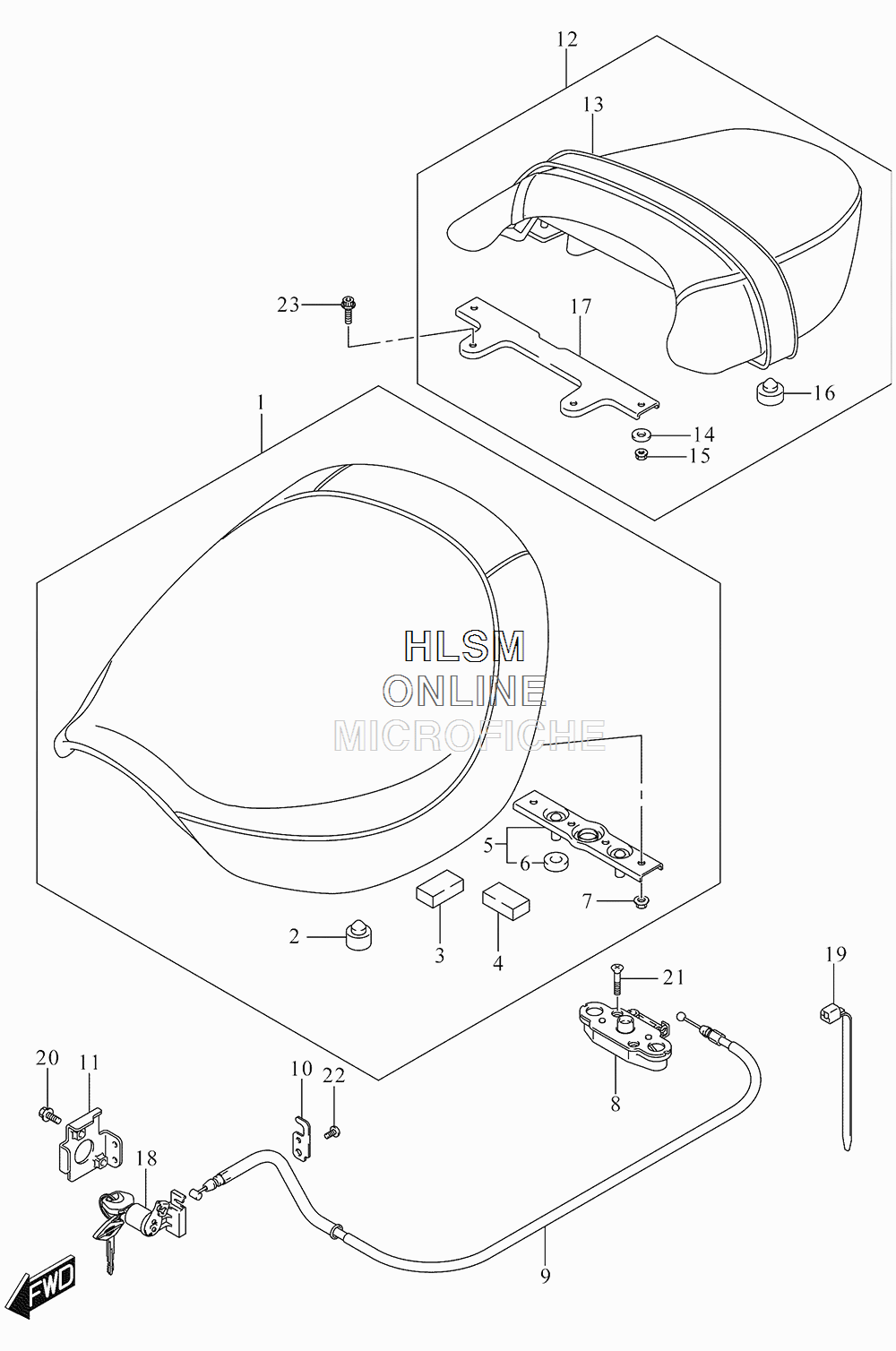

SEAT для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
145100-40H10-DCG SEAT ASSY (BLACK)SEAT ASSY (BLACK)
-
209321-10011 ...CUSHION...CUSHION
-
345148-40H00 ...CUSHION...CUSHION
-
445149-40H00 ...CUSHION...CUSHION
-
545290-42F02 ...STRIKER...STRIKER
-
645213-42F00 ......CUSHION......CUSHION
-
708319-3106A ...NUT...NUT
-
845220-47H00 BRACKET, SEAT SUPPORTBRACKET, SEAT SUPPORT
-
945280-40H01 CABLE, SEAT LOCKCABLE, SEAT LOCK
-
1045288-40H00 PLATE, SEAT LOCKPLATE, SEAT LOCK
-
1145289-40H00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
1245300-40H00-48H SEAT ASSY, PILLION (BLACK)SEAT ASSY, PILLION (BLACK)
-
1345180-40H00-48H ...BAND ASSY (BLACK)...BAND ASSY (BLACK)
-
1409160-06088 ...WASHER (6.5X20X1.6)...WASHER (6.5X20X1.6)
-
1508319-3106A ...NUT...NUT
-
1609321-10002 ...CUSHION (11.5X22X20)...CUSHION (11.5X22X20)
-
1745315-40H00 ...BRACKET...BRACKET
-
1895700-31841 LOCK ASSY, SEATLOCK ASSY, SEAT
-
1909407-19401 CLAMP (L:190)CLAMP (L:190)
-
2001547-0616A BOLTBOLT
-
2102122-0630A SCREWSCREW
-
2202142-0512A SCREWSCREW
-
2307120-0616A BOLTBOLT
