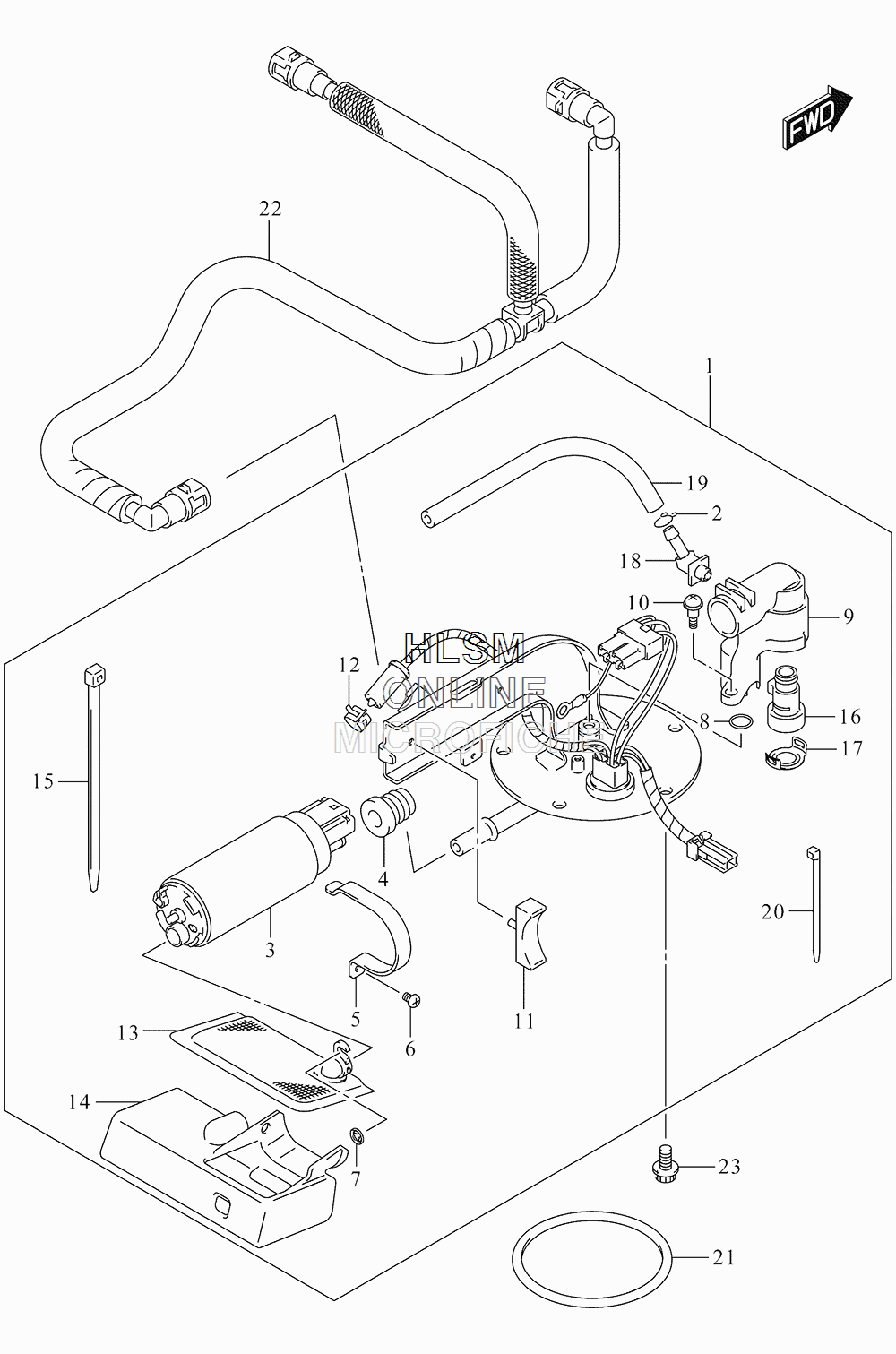

FUEL PUMP для Suzuki VZ1500 L5 BOULEVARD M90 - 2015 года выпуска
-
№АртикулНазвание
-
115100-40H00 PUMP ASSY, FUELPUMP ASSY, FUEL
-
213693-24F00 ...CLIP...CLIP
-
315110-48G00 ...PUMP...PUMP
-
415114-48G00 ...INSULATOR...INSULATOR
-
515115-14G00 ...HOLDER...HOLDER
-
615116-48G00 ...SCREW...SCREW
-
715119-14G00 ...PLATE...PLATE
-
815125-48G00 ...O RING...O RING
-
915131-48G00 ...ADAPTER...ADAPTER
-
1015135-48G00 ...SCREW...SCREW
-
1115141-48G00 ...INSULATOR...INSULATOR
-
1215175-48G00 ...CLAMP...CLAMP
-
1315420-22H00 ...FILTER...FILTER
-
1415425-40H00 ...COVER...COVER
-
1515426-48G00 ...BAND...BAND
-
1615610-48G00 ...REGULATOR...REGULATOR
-
1715613-48G00 ...CLIP...CLIP
-
1815614-48G00 ...JOINT...JOINT
-
1915615-48G00 ...HOSE...HOSE
-
2013432-43E00 ...BAND...BAND
-
2115201-35F00 O RINGO RING
-
2215810-40H01 HOSEHOSE
-
2307120-0612A BOLTBOLT
